Automatic Loader SMT PCB Conveyor Machine with PLC Control for 80x50-330x250mm PCB Size and 355*320x565mm Material Box
Automatic Loader SMT PCB Conveyor Machine with PLC Control for 80x50-330x250mm PCB Size and 355*320x565mm Material Box
Specifications
PCB Size :
80x50-330x250mm
PCB Direction :
L-R/R-L
PCB Hight :
900±20mm
Brand Name :
TOP-KING
Model Number :
CHT-CLD-303C
Certification :
ISO9001:2008;RoHS
Place of Origin :
Shenzhen ,China
MOQ :
Five channels
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 channels per day
Delivery Time :
15-20 working day after received the deposit(The actual situation according to the quantity)
Packaging Details :
Film at inner,10 pcs one bundle,packing in woven bag.
Weight :
185Kg
MateriaI box sizes :
355*320x565mm
Boundary dimension :
1380x760x1120mm
Description
Automatic Loader SMT PCB Conveyor Machine
Product Overview

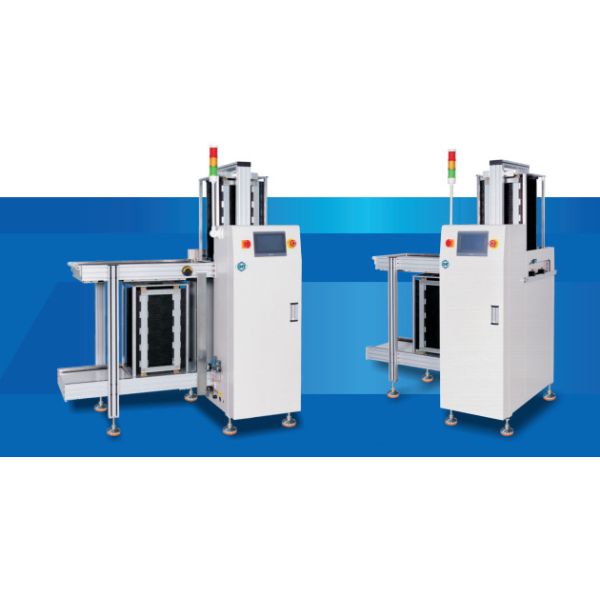

SMT Series PCB Conveyor Machine/Automatic Loader designed for PCB sizes 80x50-330x250mm and material box sizes 355*320x565mm.

Key Features
  • SMT production line circuit board upper board device
  • PLC control with color HMI operation system
  • Stepping motor push plate structure with adjustable pushing plate speed
  • Auxiliary positioning braking system for accurate positioning
  • Fast lifting speed and high production efficiency
  • Multiple electrical distribution circuit protection for safety and reliability
  • Sound and light alarm system with text prompts
  • Standard SMEMA signal communication
Technical Parameters
Description Used to automatically send circuit boards to the production line
Number of magazines Upper conveyor: 2 nos. Lower conveyor: 2 nos.
Time for feed PCBs Approx. 6 seconds or specified by customer
Magazine change over time Approx. 35 seconds or specified by customer
Indexing pitch 10, 20, 30, 40 mm pitch or specified by customer
Power supply and electric load 220V (AC, SP) 300VA max
Air pressure and air flow 4-6 bar, max. 0.1 l/min, max. 0.2 l/min
Thickness of PCBs 0.6 mm min
Specification Parameters
Model Name S-CHT M-CHT L-CHT XL-CHT
PCB Size (L*W) 80x50-330x250mm 80x50-460x330mm 80x50-510x390mm 80x50-510x460mm
Material Box Sizes (L*W*H) 355*320x565mm 460x400*565mm 535x460*570mm 535x530*570mm
Weight 185 Kg 205 Kg 225 Kg 245 Kg
Boundary Dimension (L*W*H) 1380x760x1120mm 1690x860x1120mm 1940x1000x1120mm 1940x1070x1120mm
About Our Company

Shenzhen Jingji Technology Co., Ltd. is a professional manufacturer specializing in the design, production, and sale of industrial storage equipment, flexible production equipment, automation equipment, and various instruments and gauges. The company also distributes anti-static peripherals.

We provide comprehensive logistics planning to optimize resource utilization throughout the purchase and supply chain. Our ultimate goal is to deliver complete service solutions that meet exact customer demands, improve product quality, and enhance customer satisfaction in storage, logistics, and automation industries.
