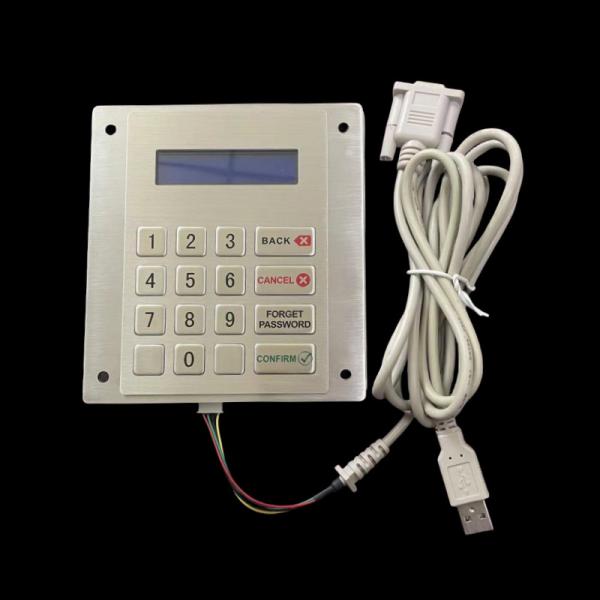

Metal keyboard model: GZ-Z001045

Metal button panel size: 93mm * 115.5mm

Description of on-screen keyboard: dust-proof and waterproof stainless steel keyboard, with numeric keys, 6 function keys, and a numeric display screen. The key layout is compact, with a 0.5mm long key stroke. It adopts a full stainless steel panel and silicone key design, with precise and accurate mold matching, and a beautiful and generous surface treatment.

Application of waterproof keyboard products:

It is mainly used for information terminals in various unsupervised or semi supervised places, such as Internet terminals, information kiosks in universities, shopping malls, hotels, banks, airports, stations and other public places, ticket vending machines, gas stations, bank teller machines (automatic deposit/withdrawal machines), public telephones, etc.

Key features of the keyboard:

1. Stainless steel panels and buttons can prevent intentional damage, especially in harsh environments, and can also be operated well.

2. The surface of the metal keyboard effectively prevents prying, bending, and detachment of the keys, which can prevent them from falling off and being damaged

3. Customize any keyface in multiple languages to adapt to different countries and customized styles.

4. Easy to install, providing R232 and USB interfaces to connect to the host for keyboard operations.

5. After the keyboard is powered on, the screen will light up. When the button is pressed, the corresponding number and letter will be displayed on the screen. After pressing the confirm button, the corresponding number will be uploaded to the background, and the number and letter on the screen will be cleared;

6. Power consumption: standby current: 11uA, working current: 74mA

The main characteristics of the screen:

1. The display screen can display 26 letters and numbers;

2. A character LCD display screen with a COB structure, particularly designed for industrial products;

3. Multiple colors to choose from: yellow green, blue, gray white;

Mechanical parameters:

1. Button: 16 buttons, imported printed and brushed SUS304 stainless steel.

2. Button design: Square convex buttons, laser carved and then corroded to create hollow patterns and characters

3. Button size: Normal buttons: 14mm * 14mm, 14 * 28mm

4. Key lifespan: Operate more than 2 million times per key, and the pot is made of imported gold-plated material.

5. Button force: 1.2N+/-0.1N (contact force)

6. Front panel: Imported printed brushed SUS304 stainless steel, 1.5mm thick

Electrical parameters:

1. Working voltage: DC+5V+/-5%

2. Working current: Within 80mA

3. Expected service life:>5 years

4. Button switch technology: imported gold-plated pan slices

5. Interface technology: R232

6. Operating system: DOS/Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

Environmental adaptability:

1. Working temperature: -20 ℃ to+60 ℃

2. Storage temperature: -30 ℃ to+70 ℃

3. Relative humidity: 30-90%

The product interfaces are R232 and TTL interfaces, and all data in the keyboard is represented in hexadecimal (HEX) as follows:
