Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
Specifications
Brand Name :
guangzhi
Model Number :
GZ-E002032
Certification :
CE、FCC、RoHS、IP67
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T, Paypal
Supply Ability :
100000pcs
Delivery Time :
10-20 work days
Packaging Details :
Individual product package size:235*150*50mm, Carton Size:482*320*275;
Application :
ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.
Connection :
USB or PS2
Material :
stainless steel
Sphere volume :
50mm
Protection level :
IP65
Protection :
bombproof, dustproof, vandalproof, waterproof
Description

Industrial plastic ABS touch screen mouse, self-service single printing,

Product Name: Touchpad positioning device

Product P/N:GZ-E002032

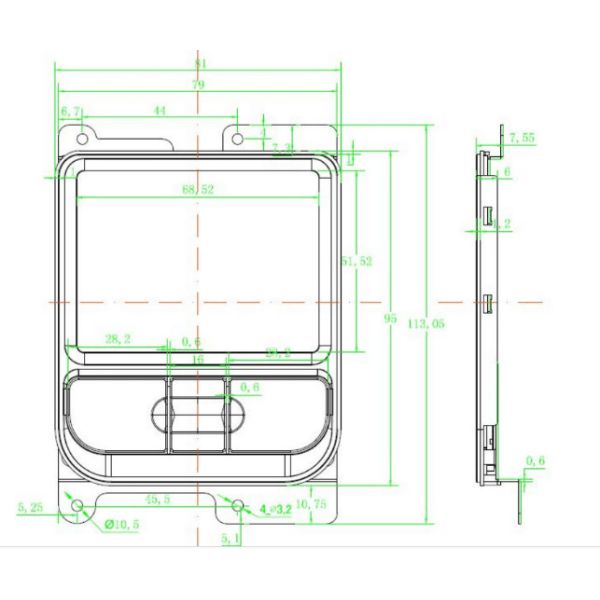

Product size:81*113.05*5mm

Application scope

Bank self-service deposit and withdrawal service equipment, telecommunications, tax, self-service billing inquiry machine, self-service terminal, public information inquiry equipment, automatic monitoring, security equipment, industrial PC numerical control platform, medical testing equipment, self-service payment machine

Mechanical parameters

Press: 2 keys.

Product design: the two buttons below are left and right mouse buttons; slide on the touchpad, and the mouse cursor moves on the display.

Outer shell: ABS raw material

Ruler: 81 * 113.05 * 5mm

Electrical parameters

Working voltage: DC + 4.5 ~ + 5.5V

Working current: ≤ 30mA

Expected service life: > 2 years

Interface type: USB interface power cable, 1.5m long

1.5m long PS / 2 interface power line

Operating system: DOS / Windows98 / me / 2000 / XP / win7

Environmental adaptability:

Working temperature: - 0 ~ 55 ℃

Storage temperature: - 10 ~ 60 ℃

PS2 interface definition

蓝 VDD
绿 DAT
黄 CLK
红 GND

Easy Installation Trackball Pointing Device Usb Interface Abs Raw Material
