Portable Stainless Steel Laser Engraving Machine 30W 50W For All Metals
Portable Stainless Steel Laser Engraving Machine 30W 50W For All Metals
Specifications
Brand Name :
Linxuan laser
Model Number :
LX-A1
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
negotiated
Payment Terms :
T/T, T/T, Western Union
Supply Ability :
300 sets/Month
Delivery Time :
5-7 days
Packaging Details :
Triple packing. Whole machine is packed by durable wooden case
Product function :
Marking , Engraving , Cutting
Processing material :
All metals, some plastic and ceramic
CNC or Not :
Yes
Cooling Mode :
Air Cooling
Control Software :
EZCAD
Working Accuracy :
0.01mm
Description

Portable Stainless Steel Fiber Metal Laser Engraving Machine 30W 50W

Fiber Laser Marking Machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. It's very cost effective. It boasts fast marking speed and high marking precision. It's widely used and well accepted in prevailing international market.

With fast marking speed, low cost with no consumable, fiber laser marking machine is gradually replaced the traditional printing way which is cost more and harm for environment.

Main advantage

1. Permanent marking

2. Maintenance-free

3. Fast marking speed to save production time

4. Long life reach to 100000 hours

5. Easy operation

6. Easy to be installed with several parts.

7. Multi-language

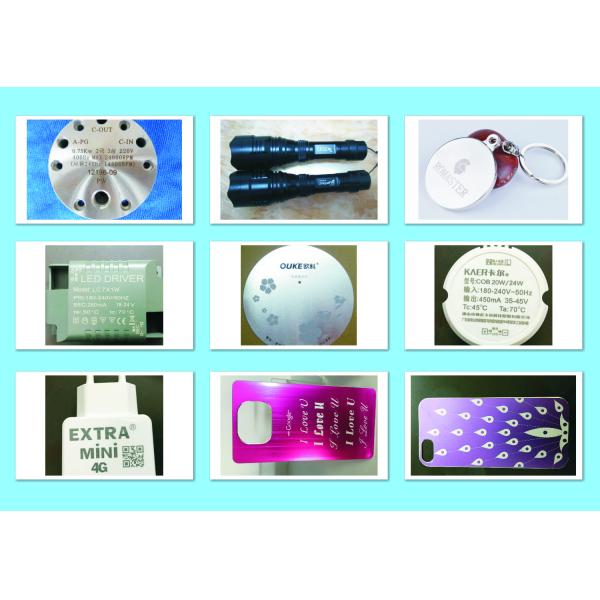

Marking sample picture

Portable Stainless Steel Laser Engraving Machine 30W 50W For All Metals

Main parameters

Mode of operation Pulsed
Polarization random
Q-switched operation
Output power adjustment range 10%-100%
Nominal average output power W 10W / 20W / 30W / 50W
Central emission wavelength 1060-1070 nm
Emission Bandwidth (FWHM) <10 nm
Long-term average power instability <5%
Pulse width, (FWHM) 100 ns
Laser switching ON time 180 μsec
Laser switching OFF time 180 μsec
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage 220V
Max. Power consumption 600W

Service

24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
One-year warranty is provided. (The detailed reference will be written into the final contract.)
Professional staff for installation and training if needed.
Spare parts are supplying on time or doing some inventory if promising certain sales volume.

Packing and shipping

1. Durable wooden case or as per required.

2. The delivery lead time would be 5-7 working days after recieving the payment.

3. As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.

WE ARE

high-tech enterprise in Wuhan East Lake Development Zone , we are specializing in producing,developing and selling laser marking machine,laser welding machine,laser cutting machine,etc.It is Chinese industrial laser processing equipment pioneer ,domestic well-known marking equipment manufacturer.And,with rich experience ,we also have obtained huge success in international market ,the mainly foreign markets are United States, Germany, Spain, Russia, Singapore, Indonesia...more than 30 countries and regions .Till now, a lot of customers all over the world have visited us.
