Galvanized Welded Mesh Barrier 76.2x76.2mm for Flood Control
Galvanized Welded Mesh Barrier 76.2x76.2mm for Flood Control
Galvanized Welded Mesh Barrier 76.2x76.2mm for Flood Control
Galvanized Welded Mesh Barrier 76.2x76.2mm for Flood Control
Galvanized Welded Mesh Barrier 76.2x76.2mm for Flood Control
Galvanized Welded Mesh Barrier 76.2x76.2mm for Flood Control
Specifications
Brand Name :
Nova
Model Number :
Nova-253
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 sets
Price :
1-50US$/m2
Payment Terms :
T/T,L/C,Western Union,D/A,D/P,MoneyGram
Supply Ability :
3000 sets per week
Delivery Time :
10-15 days after received the deposit
Packaging Details :
Defensive barrier were packed on pallets, then wrapped with plastic film
Material: :
Galvanized Wire
Hole Shape: :
Square
Type: :
Welded Mesh
Mesh size: :
76.2*76.2mm
Feature: :
Economy
Description
Long Life Welded Defensive Barriers / Gabion Mesh Box For Flood Control
Product Overview

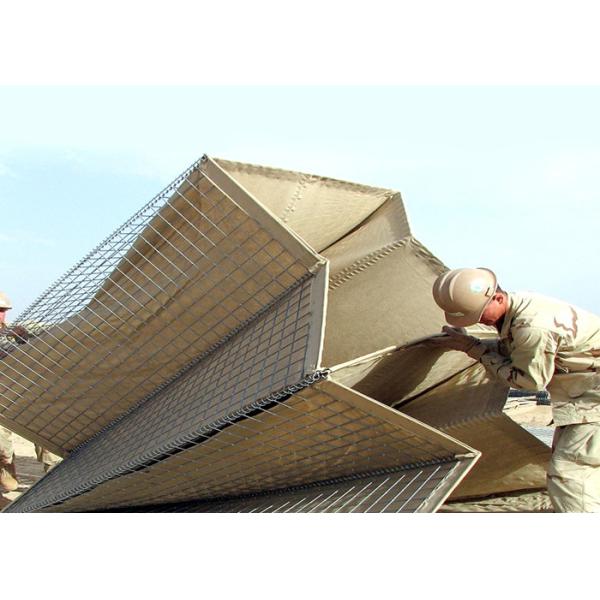

The defensive bastion is an innovative modular system designed to replace traditional sandbags. This larger body wall and mesh gabion box solution offers superior flood control capabilities with versatile filling options including soil, sand, gravel, crushed stone, and other materials.

Key Benefits
  • Constructed from geotextile and metal mesh baskets with waterproof, fireproof, and moisture-resistant properties
  • High-efficiency installation saves significant time and costs
  • Provides effective security while reducing casualties and equipment losses
Technical Specifications
  • Mesh wire: 3mm-6mm
  • Spiral wire: 3mm, 4mm, 5mm
  • Mesh size: 76.2×76.2mm
  • Panel sizes available: 0.61×0.61m, 1×1m, 1.2×1.2m, 1.5×1.5m, 1.5×2m, 2×2m, 2.21×2.13m or custom sizes
  • Geotextile: Heavy duty non-woven polypropylene

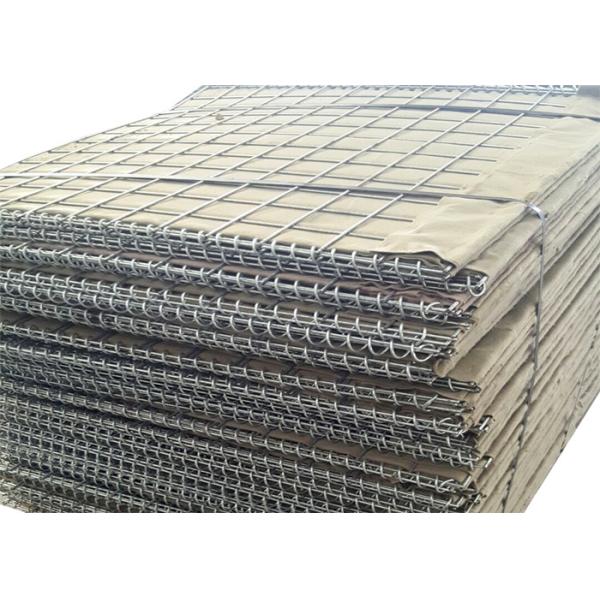

  • Packing: Wrapped with shrink film or packed in pallet
Standard Models
Model Height Width Length Internal Cells
No-1 (DB 1) 54" (1.37m) 42" (1.06m) 32'9" (10m) 5+4=9 cells
No-2 (DB 2) 24" (0.61m) 24" (0.61m) 4' (1.22m) 2 cells
No-3 (DB 3) 39" (1.0m) 39" (1.0m) 32'9" (10m) 5+5=10 cells
No-4 (DB 4) 39" (1.0m) 60" (1.52m) 32'9" (10m) 5+5=10 cells
No-5 (DB 5) 24" (0.61m) 24" (0.61m) 10' (3.05m) 5 cells
No-6 (DB 6) 66" (1.68m) 24" (0.61m) 10' (3.05m) 5 cells
No-7 (DB 7) 87" (2.21m) 84" (2.13m) 91' (27.74m) 5+4+4=13 cells
No-8 (DB 8) 54" (1.37m) 48" (1.22m) 32'9" (10m) 5+4=9 cells
No-9 (DB 9) 39" (1.0m) 30" (0.76m) 30' (9.14m) 6+6=12 cells
No-10 (DB 10) 87" (2.21m) 60" (1.52m) 100' (30.5m) 5+5+5+5=20 cells
No-11 (DB 11) 48" (1.22m) 12" (0.30m) 4' (1.22m) 2 cells
No-12 (DB 12) 84" (2.13m) 42" (1.06m) 108' (33m) 5+5+5+5+5+5=30 cells
No-13 (DB 13) 108" (2.74m) 42" (1.06m) 10'5" (3.18m) 6 cells
Advanced Features
  • Explosion prevention: Made from explosion-resistant steel with international certification
  • Lightweight construction: Weighs less than 50 kg/m² for easier handling and installation
  • Fire resistance: Engineered with fire-retardant properties
Applications

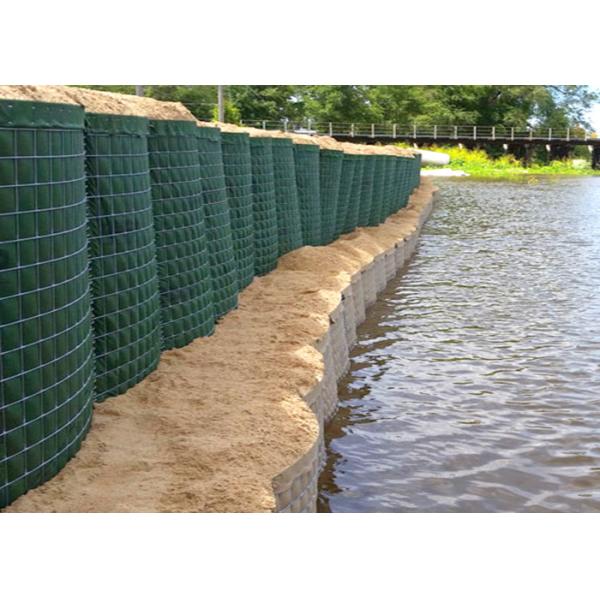

  • Flood prevention barriers
  • Permanent or semi-permanent dikes
  • Flood control retaining walls
  • Seaside area protection engineering
  • Existing structure protection
  • Coastal erosion control
