Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Specifications
Brand Name :
NOVA
Certification :
ISO-9001:2008
Place of Origin :
CHINA
MOQ :
100 Set/Sets
Price :
1-50US$/m2
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set/Sets per Month
Delivery Time :
Quantity(Sets) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
Packaging Details :
dozens of sets in flat bundles, or packed on pallets , or as customs requirements
Model Number :
HB1-10
material :
Galvanized Iron Wire
panels size :
2.21* 2.13m, 1.37* 1.06m, 0.61* 0.61m, 1.37* 1.22m, etc
hole size :
50*50mm 75*75mm,76.2*76.2mm 80*80mm 100*100mm etc
finish :
Hot Dipped Galvanized after /before welding, etc
wire diameter :
3.0mm- 6.0mm
color :
Earthy yellow, green, gray, etc.
General purpose :
itary defensive,Flood control and disaster relief
zinc coated :
40-60g/m2, 240-260g/m2
Description
75x75mm 6.0mm Defensive Barriers
Welded Sand-Filled Barriers for Flood Control - Easy Installation
Product Description

Welded defensive bastion blast wall sand wall barrier/welded gabion box sand cage bastion defensive barrier designed for superior protection and flood control applications.

Key Specifications
  • Wire Diameter: 4.0mm, 4.5mm, 5.0mm
  • Hole Size: 50mm x 50mm, 3" x 3" (76.2mm x 76.2mm), 75mm x 75mm
  • Geotextile: 280g/sqm, 300g/sqm
  • Geotextile Color: Green, Grey, Sand
  • Material: Galvanized wire, hot-dipped galvanized wire, or galfan wire
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Technical Details
Product Name Defensive Barrier
Product Type Welded Mesh
Material Galvanized QJeel Wire or Galfan/Zinc-5% Aluminum Wire
Wire Diameter 4.0mm, 5.0mm (Spring Wire Diameter: 4mm)
Geotextile 250g-400g
Geotextile Color Sand color, Brown, Gray, Green
Mesh Hole 76.2mm×76.2mm, 50mm×50mm, 75mm×75mm, 100mm×100mm
Product Dimensions
Product Item No. Height Width Length Cells No.
QJ DB 1 54" (1.37M) 42" (1.06M) 32'9" (10M) 5+4=9 cells
QJ DB 2 24" (0.61M) 24" (0.61M) 4' (1.22M) 2 cells
QJ DB 3 39" (1.00M) 39" (1.00M) 32'9" (10M) 5+5=10 cells
QJ DB 4 39" (1.00M) 60" (1.52M) 32'9" (10M) 5×2+5×2=20 cells
QJ DB 5 24" (0.61M) 24" (0.61M) 10' (3.05M) 5 cells
QJ DB6 66" (1.68M) 24" (0.61M) 10' (3.05M) 5 cells
QJ DB7 87" (2.21M) 84" (2.13M) 91' (27.74M) 5+4+4=13 cells
QJ DB8 54" (1.37M) 48" (1.22M) 32'9" (10M) 5+4=9 cells
QJ DB9 39" (1.00M) 30" (0.76M) 30' (9.14M) 6+6=12 cells
QJDB10 87" (2.21M) 60" (1.52M) 100' (30.50M) 5+5+5+5=20 cells
QJ DB11 48" (1.22M) 12" (0.30M) 4' (1.22M) 2 cells
QJ DB12 84" (2.13M) 42" (1.06M) 108" (33M) 5+5+5+5+5+5=30 cells
QJ DB19 108" (2.74M) 42" (1.06M) 10'5" (3.18M) 6 cells
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Product Features

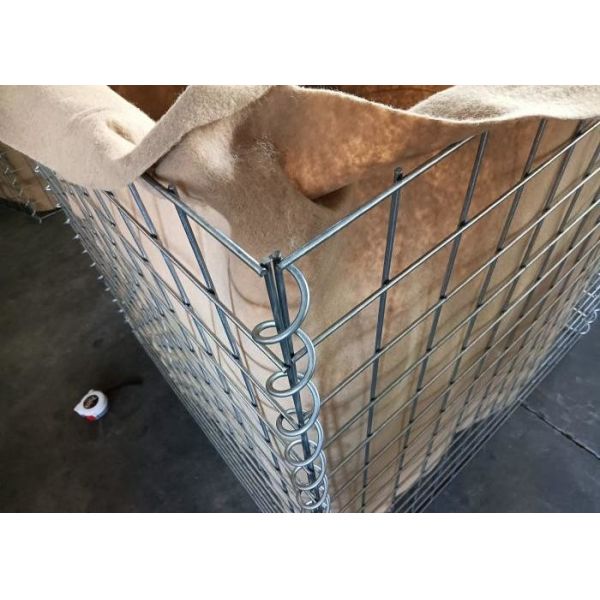

  • Pre-fabricated gabion of galvanized welded mesh steel with UV-protecting polypropylene geo-textile liner
  • Filled with easy-to-obtain mix of sand and small stones
  • Modular design allows connection to any length
  • Stackable for additional height requirements
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter

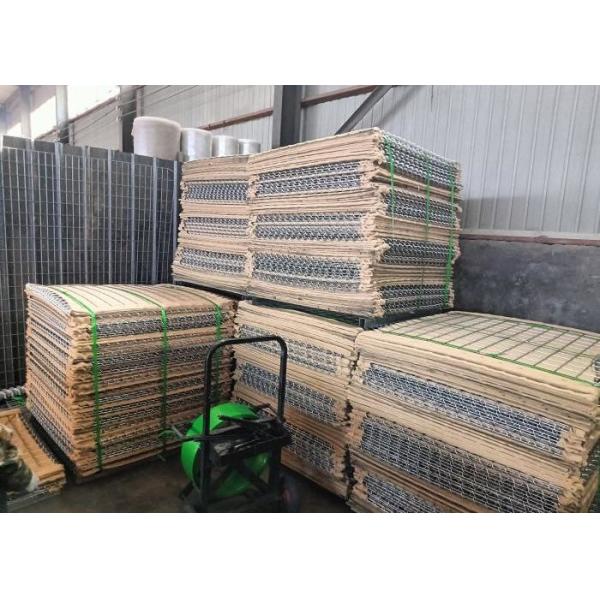

Packaging & Shipping
Galvanized Iron Wire Barrier 75x75mm 6.0mm Wire Diameter
Our Services
  • 24-hour response time
  • Free samples available
  • Comprehensive installation guides provided
  • Strict quality control from raw materials to finished products
  • Competitive pricing with timely delivery
  • Commitment to long-term business relationships
