Schneider EA9R Leakage Protection Circuit Breaker EA9R 2P C16A 30mA
Schneider EA9R Leakage Protection Circuit Breaker EA9R 2P C16A 30mA
Specifications
Brand Name :
Schneider EA9R
Model Number :
EA9R 2P C16A 30mA
Certification :
CE
Place of Origin :
Europe
MOQ :
5
Payment Terms :
T/T
Delivery Time :
5 days
Packaging Details :
Carton
Voltage Range :
0-1000V
Safety Standards :
IEC 60947, UL 508, EN 60204
Application :
Industrial, Commercial, Residential
Frequency Range :
0-1000Hz
Material :
Plastic, Metal, Ceramic
Current Range :
0-1000A
Certifications :
CE, UL, RoHS
Mounting Type :
DIN Rail, Panel Mount, Wall Mount
Control Type :
Manual, Automatic, Remote
Warranty :
1 year, 2 years, 3 years
Operating Temperature :
-40°C to 85°C
Insulation Class :
Class I, II, III
Power Rating :
0-1000kW
Protection Level :
IP20, IP54, IP65
Description
Schneider EA9R Leakage Protection Circuit Breaker EA9R 2P C16A 30mA
Product Overview

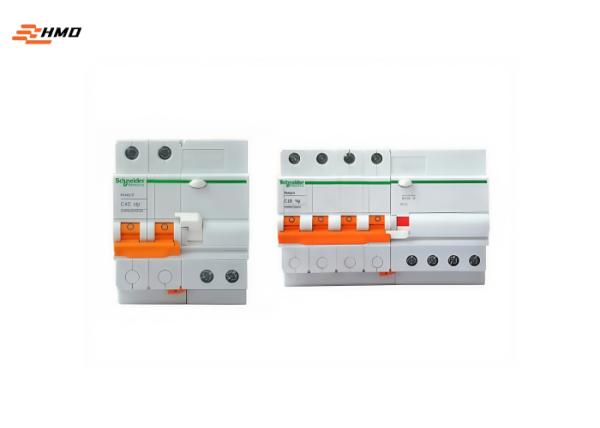

The Schneider EA9R is a pre-assembled residual current operated protective circuit breaker (circuit breaker + residual current operated accessory) that provides comprehensive protection against overload, short-circuit, and residual current faults.

Schneider EA9R Leakage Protection Circuit Breaker EA9R 2P C16A 30mA
Key Features and Specifications
  • Complies with standards: GB/T 16917 / IEC 61009
  • Rated voltage: 230/400 V AC
  • Rated current: 6 - 63 A
  • Breaking capacity: 6000A
  • Tripping characteristic: C
  • Pole number options: 1P + N/2P/3P/4P
  • Rated residual operating current: 30 mA, Type A
  • Electronic residual current operated protective circuit breaker
  • Includes isolating switch functionality
  • Mechanical life: 20,000 operations
  • Operating temperature range: -25°C to +60°C
  • Storage temperature range: -40°C to +80°C
  • Modular design for easy installation on DIN standard guide rails
Circuit Breaker Wiring Specifications
Current Rating (A) Screw Rated Torque (Nm) Pole Torque (Nm) National Standard Rated Torque (Nm)
6 - 32 M5 2.5 5.1 2
40 - 63 M6.5 3.5 5.6 3.5
Residual Current Accessory Wiring Specifications
Current Rating (A) Screw Rated Torque (Nm) Pole Torque (Nm) National Standard Rated Torque (Nm)
6 - 32 M6.5 3.5 5.6 3.5
40 - 63 M6.5 3.5 5.6 3.5
Installation and Usage Guide
  1. Pre-installation Preparation
    • Confirm specifications match your electrical circuit requirements
    • Inspect the circuit breaker for any visible damage
  2. Installation Process
    • Select a dry, vibration-free location on DIN rail
    • Follow proper wiring configuration (top-in bottom-out for 1P+N/2P)
    • Use appropriate wire sizes (25mm² for 6-32A, 35mm² for 40-63A)
    • Apply correct torque values when tightening connections
  3. Operation and Maintenance
    • Perform regular function tests using the test button
    • Monitor the mechanical indication area for fault diagnosis
    • Check for loose connections and clean periodically
    • Replace after reaching mechanical life limit (20,000 operations)
For optimal performance and safety, always follow local electrical codes and regulations when installing and using this circuit breaker.
