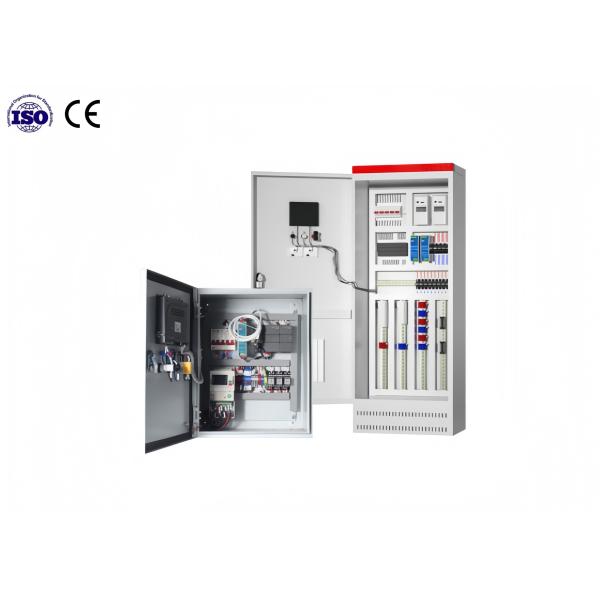

Customized Size DDC Direct Digital Control Cabinet For Elevator Control Solutions
Customized Size DDC Direct Digital Control Cabinet For Elevator Control Solutions
Specifications
Model Number :
JL841651566
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T,Western Union
Delivery Time :
20 days
Packaging Details :
wooden case packaging
Price :
USD28-68889
Usage :
Electrical Cabinet，PLC control panel
Thickness :
1.5mm or more
Accessories :
Hinges, Handles, Screws
Type :
Cabinet
Features :
Durable, Waterproof, Fireproof
Material :
Metal
Structure :
Single Door/ 2 doors
Shape :
Rectangular
Installation :
Wall Mounted，free standing
Surface Treatment :
Powder Coating
Lock Type :
Key Lock
Size :
Customizable
Color :
Grey or others
Description

Advanced Elevator Control Solutions of Integrated DDC Cabinet



Product Describe:

• Input module: used to receive call signals, position sensor signals, and safety interlock signals (such as door area switches).
• Output module: used to control motor starters, door machines, and indicator lights.
• Protection devices: circuit breakers, fuses, and surge protectors, used to protect control circuits and elevator motors.
Function Category Detailed Description
Operation Logic Management Receives signals from elevator call buttons (hall calls, in-car calls) and floor position sensors, executes preset logic (such as optimal dispatching, direction priority), and controls elevator start/stop, acceleration/deceleration, and floor alignment.
Supports custom logic, such as peak-hour scheduling (e.g., prioritizing responses to high floors during morning rush hours) or energy-saving mode (idle elevators returning to the lobby).
Status Monitoring and Protection Monitors elevator status in real-time through sensors: car position, door opening/closing status, motor current, overload signals, etc.
Triggers protective actions (such as emergency stop, door re-closing) when abnormalities occur (e.g., overspeed, door obstruction) and sends alarm information to the management system.
Energy-Saving Optimization Adjusts motor speed through analog signals (e.g., 0-10V) or communication with Variable Frequency Drives (VFDs) to reduce energy consumption under light loads.
Automatically switches idle elevators to standby mode (e.g., turning off car lights) to save electricity.
Integration and Remote Management Connects to Building Management Systems (BMS) via RS485, Ethernet, or IoT protocols, enabling remote monitoring of operational data (running time, fault records) and parameter adjustments (e.g., modifying dispatching logic).

Specification:

Dimensions (Width × Height × Thickness, mm) Cabinet Thickness (mm) Door Panel Thickness (mm)
250×300×150 0.6 0.8
300×400×200 0.6 0.8
400×500×200 0.6 0.8
500×600×200 0.6 0.8
600×800×200 0.6 0.8
1000×800×200 0.6 0.8
1200×1000×200 0.6 0.8


Material:
Aluminum alloy, stainless steel, carbon steel


Suggestion:

1. Space fit: Match machine room dimensions with 30cm clearance; for machine-room-less setups, use slim designs (≤250mm thick).
2. Elevator specs: Size for capacity/speed, with separate strong/weak current zones.
3. Environment: IP54+ enclosures with corrosion resistance for harsh areas; add cooling for high temps.
4. Flexibility: Reserve upgrade ports; design detachable panels for easy maintenance.
