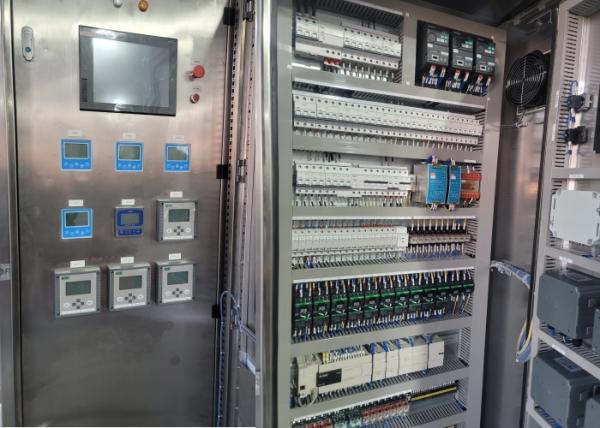

IP65 IP54 Aluminum Alloy PLC Control Cabinet Metal Waterproof Electrical Panel
IP65 IP54 Aluminum Alloy PLC Control Cabinet Metal Waterproof Electrical Panel
Specifications
Model Number :
Aluminum Alloy PLC Control BG1564156
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
20 days
Packaging Details :
Wooden case Packaging
Ip Rating :
IP65 IP54
Application :
Industrial, commercial, and Process control
Material :
Aluminum Alloy
Color :
Silver or Others
Customization :
Logo printing, size and color customization available
Mounting Type :
Wall mount, pole mount，free standing
Usage :
PLC control
Certifications :
CE
Size :
Various sizes available
Locking Mechanism :
Key lock
Finish :
Powder coated
Shape :
Rectangular
Features :
Durable, corrosion-resistant, weatherproof
Price :
USD28-68889
Description

Aluminum Alloy PLC Control Cabinet Metal Process Control Panel



Product Describe:

1. Petrochemical Industry
Used to control pumps, valves, fans, and other equipment in oil extraction, refining, and chemical production, suitable for Zone 1 and Zone 2 explosive gas environments .
2. Metallurgy and Aluminum Processing
Applied in production lines such as aluminum extruders and metal smelting to control parameters like temperature, pressure, and speed, improving automation levels.
3. Pharmaceutical and Food Industries
Suitable for explosion-proof, dust-proof, and corrosion-resistant environments in pharmaceutical manufacturing, food processing, etc., such as fermentation tank control and packaging production lines.
4. Wastewater Treatment and Water Conservancy Projects
Used for automated control in pump stations, floodgates, and wastewater treatment plants, supporting remote monitoring and unmanned operations.
5. Textile, Dyeing, and Brewing Industries
Controls equipment like fans and motors in flammable dust or vapor environments to ensure safe production.
6. Offshore Platforms and Ports
Suitable for highly corrosive environments such as offshore oil platforms and ports, controlling lighting, ventilation, and fire protection systems.
7. Automated Production Lines
In industrial automation scenarios like automotive manufacturing, welding, and packaging, integrates PLCs, frequency converters, and touchscreens for precise control.


Design:

Model/Type Width (mm) Height (mm) Depth (mm) Notes
Full Aluminum Control Box-B ≤400 (customizable) ≤400 (customizable) 190 Panel included, customizable size
400×500 Cast Aluminum PLC Explosion-Proof Cabinet 400 500 - For hazardous areas
Explosion-Proof Control Box 400 400 175 IP65
Explosion-Proof Control Box 420 300 150 IP65
PLC Power Module Explosion-Proof Cabinet 1000 2100 600 Steel/aluminum construction
Power Control Cabinet 600–800 1200–1800 370 Cold-rolled steel & aluminum
Commander 1F Series (Aluminum Enclosure) 160–400 230–360 108–242 Modular, IP65, customizable


IP Grade:

IP54/IP65


Suggestion:

• 1. Key Points for Dimensional Customization
Space Adaptation: Measure installation space dimensions (including heat dissipation space), recommend 10-15% larger than total equipment size
Standard Module: Suggested 50mm modular units (e.g., 500×600×200mm) for accessory compatibility
Internal Layout: For tiered designs, recommended minimum 300mm per layer (including wireway space)
• 2. Material Selection Guide
Material Type Application Scenario Pros and Cons
6061 Aluminum Alloy Standard industrial environments Lightweight (60% lighter than steel), moderate corrosion resistance
5052 Aluminum Alloy High-humidity/coastal environments Excellent salt spray resistance, 15-20% higher cost
Steel-Aluminum Composite Heavy-duty explosion-proof applications External steel plate for explosion-proofing, internal aluminum for heat dissipation
• 3. Critical Custom Configurations
Protection Rating:
IP54: Standard workshop environments
IP65: Outdoor/dusty environments (requires additional sealing strips)
Cooling Solutions:
Natural cooling: Louvered openings (for <500W power consumption)
Forced air cooling: Explosion-proof fans (500-1500W)
Heat pipe cooling: For high-power frequency converter applications
• 4. Special Custom Requirements
Seismic Design: For marine/vehicle applications requires:
Increased plate thickness by 0.5-1mm
Vibration dampener installation
Potting for internal components
EMC Shielding:
Zinc-plated steel lining (30dB shielding)
Dedicated filter compartment
Waveguide interface treatment
• 5. Cost Optimization Suggestions
Modular design: Standard interfaces for more economical future expansion
Optional accessories selection:
Essentials: Main cabinet, grounding terminals, wireways
