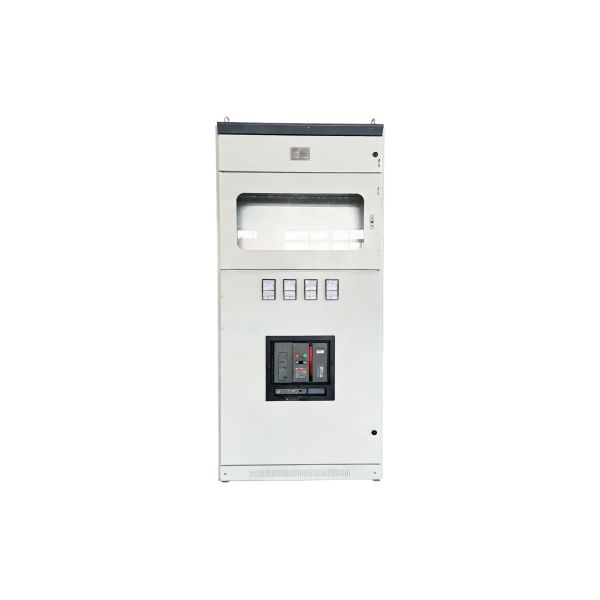

Custom PLC Control Panel for Automation Projects
Custom PLC Control Panel for Automation Projects
Specifications
Brand Name :
HMD
Model Number :
96541
Certification :
CE
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
5 days
Size :
Depend on customize
Usage :
Indoor/Outdoor
Type :
Electrical Cabinet 0
IP Rating :
IP55 IP65 IP66
Description

Custom PLC Control Panel for Automation Projects





Custom PLC Control Panel for Automation Projects is a professional customized control core designed for various industrial automation projects. Tailored to customers' automation control needs, it integrates PLC controllers, touch screens (HMI), relays, contactors, low-voltage breakers and signal conversion modules. With core advantages of stable operation, high precision and easy integration, it realizes logic control, signal acquisition, equipment linkage and fault alarm of automation systems, simplifies system wiring, improves automation intelligence, and is suitable for various automation project scenarios.

1. Standard Custom PLC Control Panel Parameters

Parameter Name
Standard Specification
Remarks
Panel Size
Standard: 500×600×1800mm; Customizable: 300×400×600mm~800×1000×2200mm
Customized by automation project space and component quantity.
Panel Material
Cold-rolled steel plate (1.5~2.5mm); Optional 304 stainless steel
Anti-corrosion, high rigidity,适配 automation project sites.
Voltage Grade
AC 220V/380V; Optional DC 24V (for PLC and control circuit)
Complies with automation system power supply standards, safe and stable.
Rated Current
32A~250A; Customizable up to 400A
Selected by automation system total load and equipment quantity.
Protection Level
Standard: IP54; Optional IP55
Dust-proof, anti-splash, adapted to automation project sites.
Cooling Method
Natural ventilation + ventilation grille; Optional axial fan
Adapts to PLC and control module heat generation needs.
Installation Method
Floor-mounted; Optional wall-mounted (small size)
Stable installation, easy to operate and maintain.
Internal Configuration
PLC controller, HMI touch screen, relay, contactor, terminal block (customizable)
Standardized wiring, convenient for automation system integration.

2. Application Scenarios

The panel is suitable for automation project scenarios, mainly including:
  • Automation Production Lines: Control of assembly lines, conveying systems and processing equipment.
  • Intelligent Warehousing: PLC control of AGV trolleys, sorting and storage equipment.
  • Chemical Automation: Logic control of reaction kettles and feeding systems.
  • Mechanical Automation: Control of CNC machines and robotic arms.
  • Power Automation: Monitoring and control of low-voltage power distribution systems.
Supplementary Note: We provide customized services according to automation project needs, ensuring the panel integrates seamlessly with the system and operates stably.
