Large Diameter Concealed Stem Elastic Seat Seal Gate Valve QT450

Introduction to Gate Valve

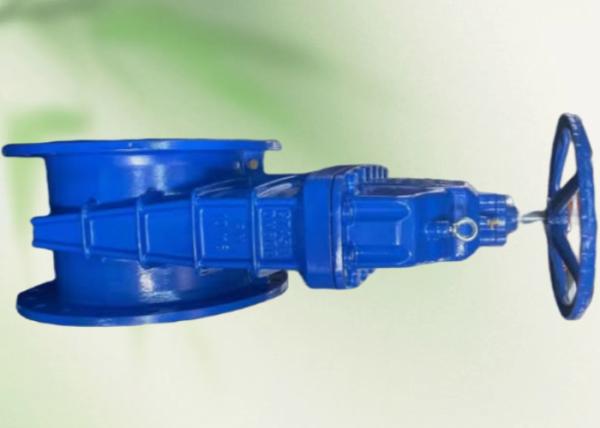

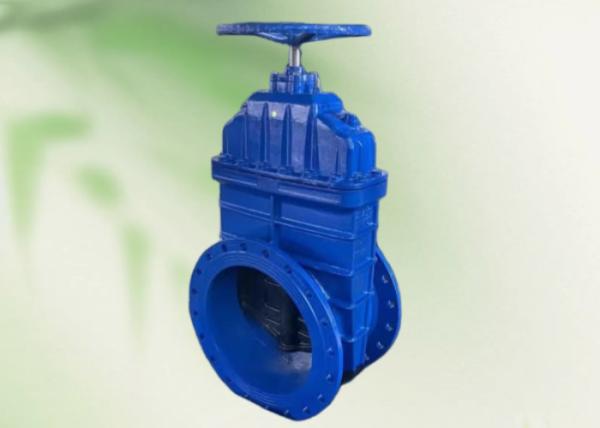

This large-diameter, non-rising-stem, resilient-seat gate valve, painted blue, features a non-rising stem design (the stem is not exposed) and a resilient seat seal to ensure a tight seal. This large-diameter valve is suitable for high-flow piping systems and is commonly used in water supply and drainage, municipal pipe networks, and other applications. A handwheel drives the valve stem, controlling the gate disc's movement to open and close media. This factory scenario demonstrates its ability to handle the transport of media such as water and sewage in industrial production and warehousing, ensuring stable operation of pipeline systems.

What is the operating pressure range of large-diameter, non-rising-stem, resilient-seat gate valves?

The typical operating pressure range for large-diameter, non-rising-stem, resilient-seat gate valves is PN1.0-PN2.5 MPa (10-25 kgf/cm2). However, this is not absolute. Operating pressures vary between manufacturers, materials (such as ductile iron, cast steel, etc.), and designs. Some valves are designed to operate at higher pressures, such as PN4.0 MPa or even higher. Please refer to the product manual or manufacturer's specifications for specific operating pressures.

PRODUCT INFORMATION

Who we are

SND has been producing and selling metal goods for about 20 years.By using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, the company has been supplying goods made of materials like cast iron, steel, stainless steel, aluminum, etc. Additionally offered are surface finishing and assembly services.

Our company has successfully created products in a variety of industries, including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction, thanks to our consistent efforts over the past few years.

Our factories' ISO9001-accredited quality control systems guarantee a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections are carried out as part of routine production procedures.
