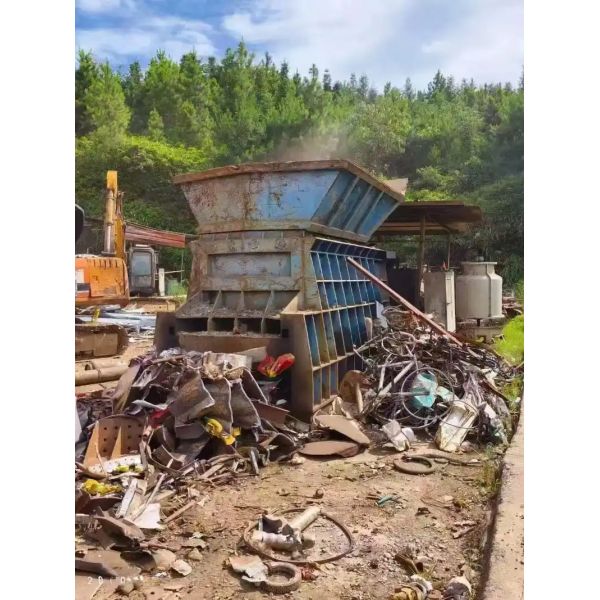

QSW-630 Box Shear Solution for Oversized Scrap Metal and Bulky Ferrous Handling
QSW-630 Box Shear Solution for Oversized Scrap Metal and Bulky Ferrous Handling
Specifications
Brand Name :
HUAKE
Model Number :
QSW-800
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
by negotiation
Payment Terms :
LC TT
Supply Ability :
100 sets per year
Delivery Time :
60 days
Packaging Details :
exportworthy package
Automatic Grade :
PLC Auotmatic Control With Remote Control
Production Rate :
9 - 12.0 Tons /hr Scrap Steel
cutting speed :
2-3times Per Minute
Cutting Force :
6300kN
Automation :
Automatic Plc Control And Remot Control
Shear Angular :
10 Degrees
Paint :
Cutmoized Color, With Anti Dust Paint
Description

Box Shear Solution for Oversized Scrap Metal and Bulky Ferrous Handling

Product Overview

Oversized scrap metal and bulky ferrous handling are recurring problems in recycling operations. Long pieces are harder to load, mixed profile scrap takes more yard space, and irregular steel sections often slow transport preparation. The QSW-630 hydraulic scrap metal box shear is designed as a front-end size reduction solution for exactly these working conditions.

Applications

This machine fits operations facing:

  • bulky scrap handling pressure
  • difficult scrap transport preparation
  • structural steel scrap cutting needs
  • scrap backlog in recycling yards
  • heavy profile scrap processing before downstream handling

Core Advantages

Its advantages come from structural fit:

  • a 2600 × 1400 mm chamber for larger scrap input
  • 3150KN × 2 shearing force for heavier material
  • 1350KN clamping cylinder support
  • defined cutting range for common steel forms
  • PLC automatic control for repeated industrial cycles

How It Works

The machine first secures irregular scrap in the chamber, then applies hydraulic shearing force to reduce it into shorter sections. This matters because bulky scrap handling problems are rarely solved by cutting force alone; positioning, chamber size, and cycle consistency are also part of the solution.

Specifications

  • Hydraulic working pressure: ≤25.0MPa
  • Output: 12–15 t/h
  • Shear speed: 2–3 times/min
  • Power supply: 440V / 3PH / 50Hz or customize
  • Cooling: Water cooler + AC chiller / plate water heat exchanger configuration
  • Fuel tank: 3800 L

How To Choose

If your main problem is oversized scrap, focus on chamber size and material range. If your issue is repeated yard-side pre-processing, control mode and output become more important. If structural scrap is common, the listed capacity for angle steel and I-beams is a more useful reference than generic product claims.

What Problem It Solves

The QSW-630 is intended to make heavy, long, and irregular scrap easier to cut down before transport, sorting, or furnace preparation. It does not replace every type of metal cutting equipment, but it is closely aligned with bulky ferrous size reduction in industrial recycling conditions.

some customers ask what is the difference bettween QSW-800 vs QSW-630

QSW-800 vs QSW-630 Scrap Metal Box Shear Comparison

Item QSW-800 Box Shear QSW-630 Box Shear Main Difference / Selection Reference
Model QSW-800 QSW-630 Different machine class
Machine Type Hydraulic scrap metal box shearing machine Hydraulic scrap metal box shearing machine Same equipment category
Rated Power Class 800 ton 630 ton QSW-800 is the larger force class
Shearing Cylinder Model YG450/310 YG400/280 QSW-800 uses larger shearing cylinders
Shearing Cylinder Quantity 2 sets 2 sets Same
Maximum Shearing Thrust 4000KN × 2 3150KN × 2 QSW-800 has stronger shearing force
Clamping Cylinder Model YG260/180 YG260/180 Same model
Clamping Cylinder Quantity 1 set 1 set Same
Clamping Force 1350KN 1350KN Same
Hydraulic Working Pressure ≤25.0MPa ≤25.0MPa Same
Feed Opening Size 2600 × 1600 mm 2600 × 1400 mm QSW-800 has a wider feed opening
Cut Length 1600 × 400 mm 1400 × 420 mm QSW-800 allows longer cut length; QSW-630 has slightly larger cut height
Shear Speed (No Load) 2–3 times/min 2–3 times/min Same
Output / Yield 9–12 t/h 12–15 t/h QSW-630 sheet shows higher listed output
Power Supply 380V / 3PH / 50Hz or customize 440V / 3PH / 50Hz or customize Standard voltage differs in the quotations
Total Installed Power 165 kW 110 kW QSW-800 requires more installed power
Motor Configuration 55 kW × 3 55 kW × 2 QSW-800 uses one more motor
Hydraulic Pump Model A4V250 A4V250 Same pump model
Hydraulic Pump Quantity 3 units 2 units QSW-800 uses more pumps
Rated Pump Pressure 31.5MPa 31.5MPa Same
Cooling Method AC chiller / water cooler Water cooler + AC chiller + plate water heat exchanger QSW-630 sheet gives more detailed cooling configuration
Fuel Tank Capacity 5200 L 3800 L QSW-800 has larger oil tank capacity
Control Method PLC automatic control with remote control PLC automatic control with remote control Same
Round Steel Capacity Φ160 mm Φ150 mm QSW-800 handles slightly larger round steel
Square Steel Capacity 130 × 130 mm 120 × 120 mm QSW-800 handles slightly larger square steel
Angle Steel Capacity 250 × 250 × 15 mm 200 × 200 × 15 mm QSW-800 has stronger angle steel capacity
I-Beam Capacity 340 × 132 × 15 mm 320 × 132 × 15 mm QSW-800 has slightly larger I-beam capacity
Main Machine Size 6300 × 2750 × 2650 mm 6000 × 2500 × 2600 mm QSW-800 is larger overall
Production Time About 55 days + 5 days repeated test About 55 days + 5 days repeated test Same quoted lead time
Shipping 1 × 40 ft flat rack (extra wide / extra high) + 2× 40 ft container and sometimes bulk ship 1 × 40 ft flat rack (extra wide / extra high) + 1 × 40 ft container QSW-630 sheet gives clearer shipping info in the PDF text excerpt
Price Term Different quotation basis, so not directly comparable without alignment

Quick Selection Guidance

If the customer focuses on... Better Fit
Stronger shearing force QSW-800
Larger feed opening width QSW-800
Larger structural steel / profile scrap range QSW-800
Lower installed power requirement QSW-630
Higher listed hourly output in the quotation sheet QSW-630
More compact machine size QSW-630
Heavier and larger scrap sections QSW-800
Medium-to-heavy scrap processing with lower power footprint QSW-630

Simple Recommendation Sentence for Customer Use

QSW-800 is generally the better choice when the customer needs higher shearing force, a wider feed opening, and stronger capacity for larger structural scrap sections.
QSW-630 is generally the better choice when the customer wants a more compact machine with lower installed power and a higher listed hourly throughput in the supplier’s sheet.

FAQ

Q: Is this machine for light sheet processing?
No. Based on the PDF, it is positioned for heavy scrap metal box shearing, especially for larger and structural ferrous scrap forms
