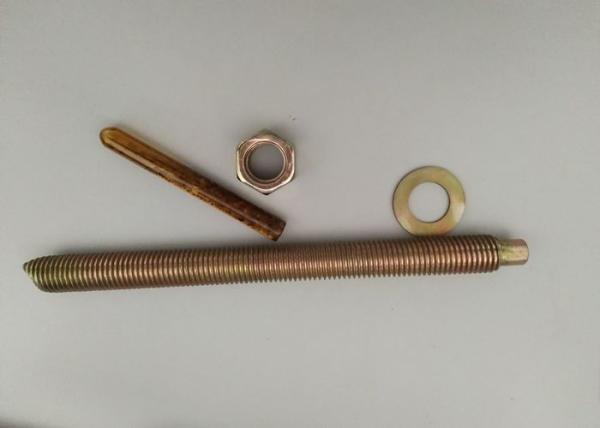

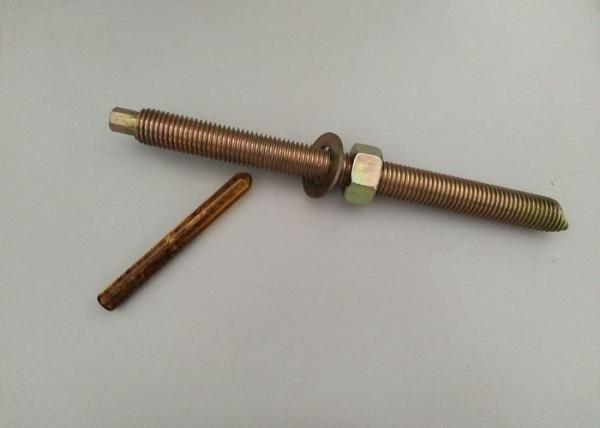

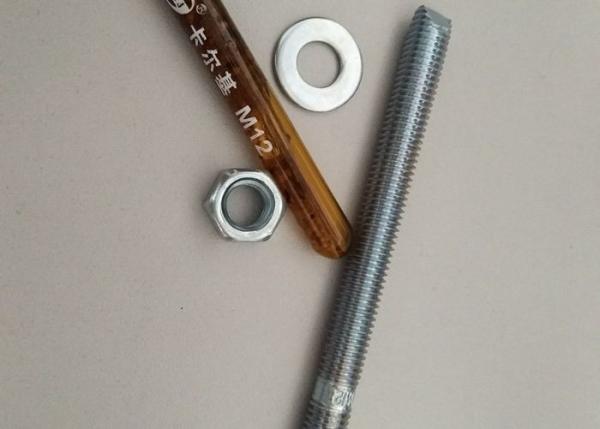

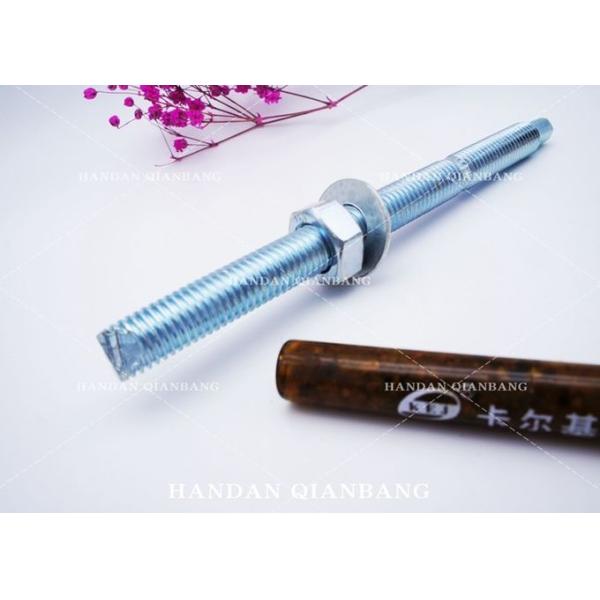

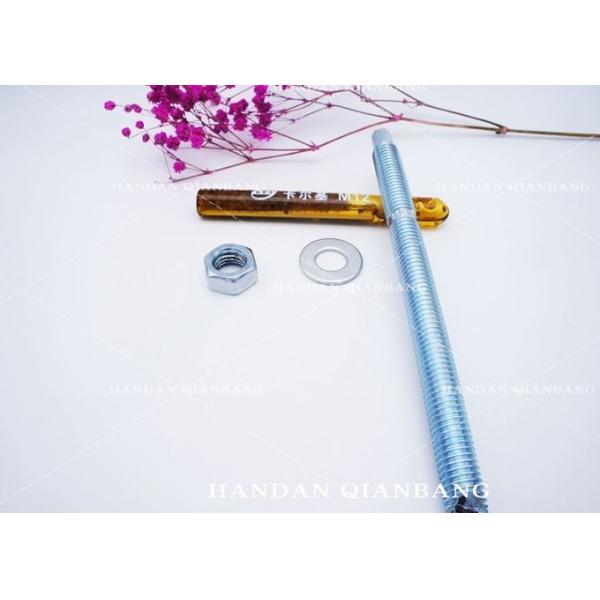

Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Standard M12*100 Chemical Anchor Bolt
Specifications
Model Number :
M6-M32
Certification :
ISO9001
Place of Origin :
China
MOQ :
1ton
Price :
650USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100ton/day
Delivery Time :
25-30week days
Packaging Details :
carton
color :
yellow zinc
standard :
zinc plated
material :
iron
port :
Tianjin
packing :
carton
Description

Chemical Anchor Bolt With Zinc M12*100& Screw and glue&Fastening material

Product Description

Chemical anchors are a new type of fastening material consisting of chemicals and metal rods. Can be used for a variety of curtain walls,marble dry hanging construction after the installation of buried parts can also be used for equipment installation, highway, bridge rails installation; building reinforcement and other occasions. Chemical anchor is followed by expansion anchor The new anchor is through a special chemical adhesive, the screw cease fixed in the concrete substrate drilling, in order to achieve the anchor of the composite parts.
Products are widely used in fixed curtain wall structure, installation of machinery, steel structure, railings, windows and so on.

Specification

Design load and failure load (KN) of single anchor at large spacing and large margin.

SIZE Design pull Break the rally Design shear force Destroy the shear force
M8 7.4 19 7.7 11.4
M10 12.8 30.2 12.6 18.1
M12 14.5 43.8 18.3 26.3
M16 28.9 70.9 34.6 49
M20 52.4 127.4 53.5 76.4

Standard M12*100 Chemical Anchor BoltStandard M12*100 Chemical Anchor Bolt

Tag:

chemical anchor fasteners,

chemical anchor fixings

My email is dora@ytfasteners.com and my whatsapp account is +8617340850200. We can also give you a quotation in the form of dialogue.

Product tags

chemical anchor bolt a307

,

m12 anchor bolts

,

chemical anchor bolt
