Modular Temporary Fence 2x2m Anti-Climb Construction Site Barrier
Modular Temporary Fence 2x2m Anti-Climb Construction Site Barrier
Modular Temporary Fence 2x2m Anti-Climb Construction Site Barrier
Modular Temporary Fence 2x2m Anti-Climb Construction Site Barrier
Modular Temporary Fence 2x2m Anti-Climb Construction Site Barrier
Modular Temporary Fence 2x2m Anti-Climb Construction Site Barrier
Specifications
Brand Name :
YUANHAI
Model Number :
YH-TF
Certification :
ISO9001
Place of Origin :
Hebei Province,China
MOQ :
30 Sets
Price :
US$7~30
Payment Terms :
L/C,T/T
Supply Ability :
5000 sets per month
Delivery Time :
5-8 work days
Packaging Details :
carton box or wooden box
Type :
Fencing,Trellis & Gates
Feature :
Easily Assembled,Eco Friendly
Frame finishing :
PVC Coated,Powder Coated
Metal type :
Steel,Iron
Material :
Low-Carbon Iron Wire,Low Carbon Steel Wire
Application :
Fence Mesh,Residential,Construction
Product name :
Square hole size temporary fence 2x2 pvc welded wire mesh,large outdoor temporary dog runs fence mesh fencing for dogs
Color :
Green,yellow,blue
Sample :
Free
Description

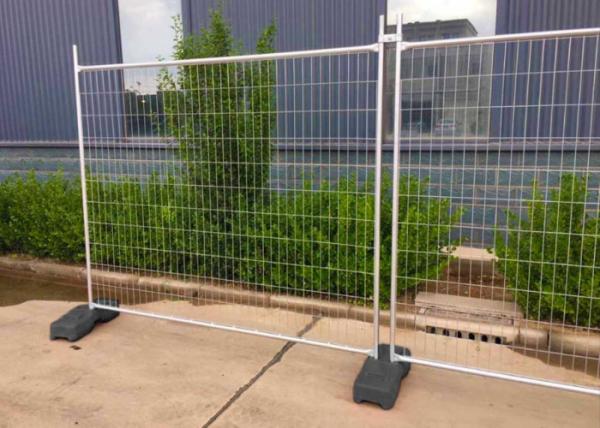

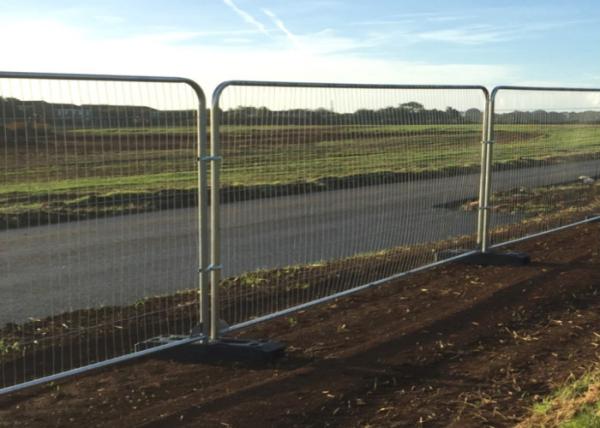

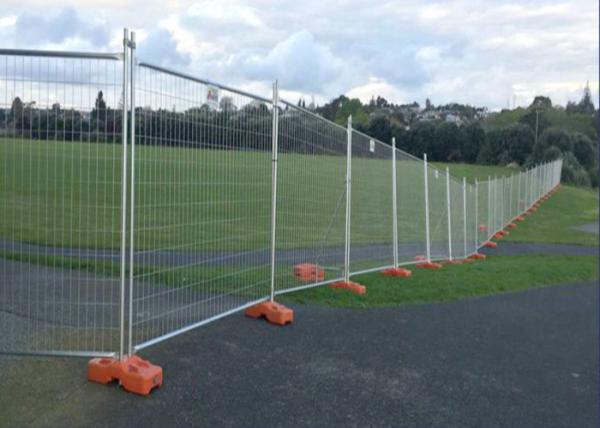

Construction Site Fencing - Modular Temporary Barrier with Anti-Climb Design

Product Overview:

Our Construction Site Fencing is a heavy-duty, modular barrier system designed for temporary perimeter security at job sites, events, and public spaces. Featuring an anti-climb mesh design and quick-connect panels, this fencing provides instant security while remaining fully reusable across multiple projects.

Specifications:

Parameter Specificationc
Panel Size 2.0m (H) x 2.5m (W)
Mesh Opening 50mm x 50mm (2" x 2")
Wire Diameter 3.0mm (mesh), 4.0mm (frame)
Material Q235 carbon steel
Coating Standard: Galvanized (120g/m²)
Optional
PVC coated (0.3mm)
Weight 14kg/panel
Load Capacity 500N/m² wind load
Anchor Options Steel feet, concrete blocks, ground spikes

Key Features:

1.Anti-Climb Security

  • Small mesh openings (50mm x 50mm) prevent footholds
  • Vertical wire reinforcement deters cutting and scaling

2.Modular & Portable

  • Interlocking panel system – no welding or special tools required
  • Lightweight yet sturdy (panels weigh only 12-15kg each)
  • Folds flat for easy transport and storage

3.Durable & Weatherproof

  • Hot-dip galvanized steel (minimum 120g/m² coating)
  • UV-resistant PVC coating optional (RAL 6005 green/black)
  • Withstands high winds (up to 80km/h when properly anchored)

4.Rapid Deployment

  • 1 worker can install 20 panels/hour
  • Universal clamps adapt to uneven terrain
Applications:

1.Construction Sites

  • OSHA-compliant perimeter barriers
  • Equipment storage security

2.Event Management

  • Crowd control at festivals/stadiums
  • VIP area partitioning

3.Industrial Facilities

  • Temporary hazard zoning
  • Maintenance area isolation

4.Municipal Projects

  • Sidewalk/park closures
  • Emergency response perimeters​

Manufacturing Process:

1.Material Prep

  • Uncoiling and straightening steel wire rods
  • Cold drawing to 3.0mm/4.0mm diameters

2.Mesh Production

  • Automated resistance welding (500°C spot temp)
  • 3D quality scanning for weld consistency

3.Frame Fabrication

  • Robotic cutting/bending of frame tubing
  • CO₂ gas shielded arc welding at corners

4.Surface Treatment

  • 7-stage galvanizing line (degreasing → pickling → fluxing → galvanizing → quenching)
  • Optional electrostatic PVC powder coating

5.Assembly & Testing

  • Hinge installation for folding mechanism
  • Salt spray testing (72hr minimum)

FAQ


Q: How many times can panels be reused?
A: Minimum 8-10 relocations with proper handling

Q: What's the minimum order quantity?
A: 30 panels (100 linear meters) for standard orders

Q: Can we add privacy screens?
A: Yes – compatible with clip-on PE mesh (90% opacity)

Q: How to secure panels on asphalt?
A: Use weighted base plates

Q: Lead time for custom colors?
A: 8-10 days for PVC-coated options

Contact us today for quotes or customization options!
