Triangle Security Fence Panel Crash Rated Tamper Proof Hot Dip Galvanized Coating

Product Overview:

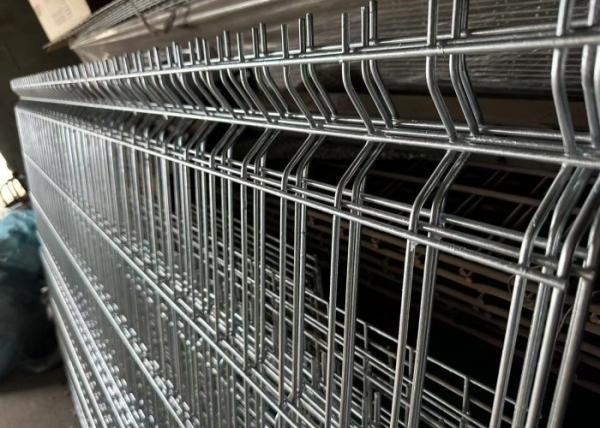

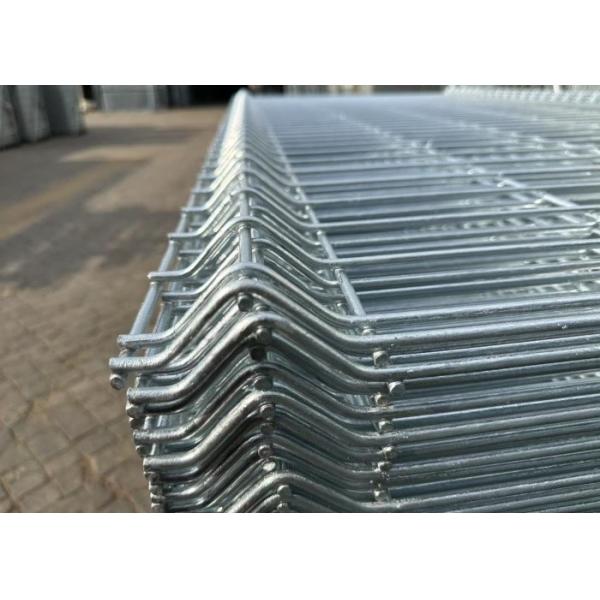

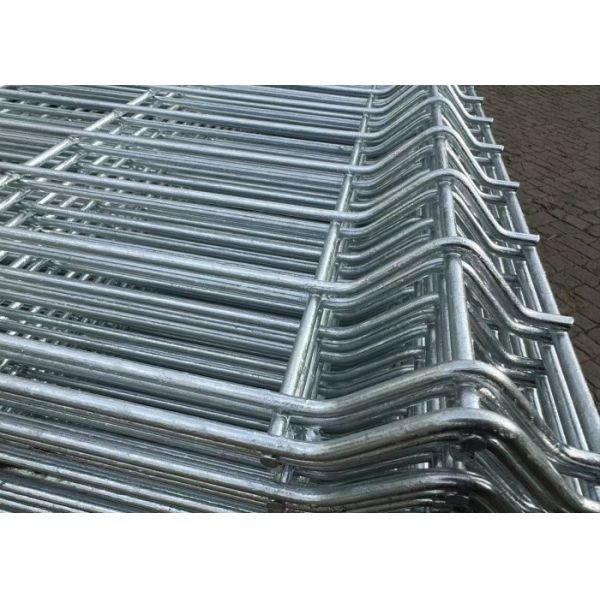

Our Triangle Security Fence Panel is engineered for maximum perimeter protection in high-risk facilities. Featuring a patented V-shaped triangular mesh design, this anti-climb, anti-cut fencing system exceeds international crash ratings (IWA 14-1 and PAS 68 standards) while providing superior tamper resistance. The hot-dip galvanized coating (minimum 300g/m² zinc) ensures 25+ years of corrosion-free performance in coastal or industrial environments.

Technical Data Sheet:

Applications:

1.Critical Infrastructure:

Nuclear plants, airports, military bases

Border crossings, embassies, data centers

2.High-Security Facilities:

Prisons, detention centers, courthouses

VIP residences, bank vault perimeters

3Industrial Protection:

Oil/gas facilities, power substations

Ports, rail yards, truck depots

Key Advantages:

1. Military-Grade Security

• V-shaped mesh deflects cutting tools and prevents climbing (tested to BS EN 10223-3)
• 50mm narrow apex angles eliminate grip points

2.Crash-Proven Performance

• Absorbs and redistributes impact energy (certified to PAS 68 vehicle impact standards)
• Maintains structural integrity after collision

3. Zero Maintenance Durability

• 300g/m² galvanization protects against salt spray (2000hrs salt fog test)
• Optional PVC coating for chemical resistance (e.g., oil refineries)

4.Rapid Deployment

• Pre-assembled panels with clamp-on brackets (50% faster install than welded systems)
• Modular design allows curved/angled configurations

Production process:

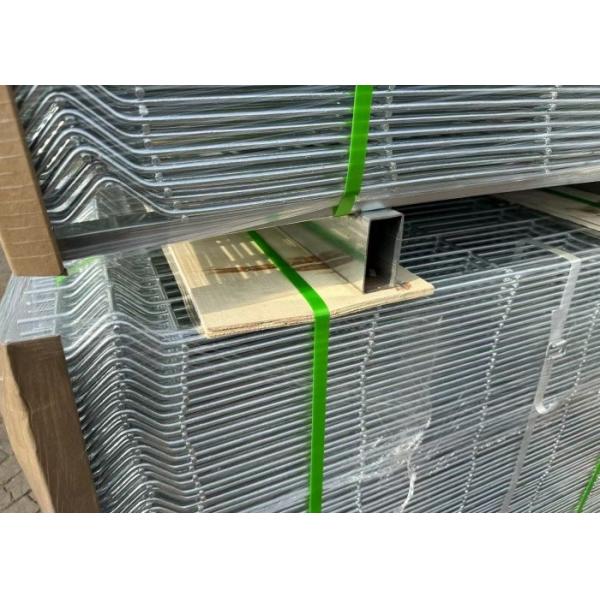

Our Triangle Security Fence Panels are manufactured through a meticulously controlled production process that begins with high-quality low-carbon steel wire rods (Grade Q195/Q235), which undergo rigorous material testing including spectrometer analysis and tensile strength verification. The wire drawing process utilizes multi-pass cold drawing to achieve precise diameters (5.0-6.0mm) with ±1mm tolerance, followed by automated CNC welding using German-made equipment that ensures consistent V-shaped mesh formation with ≥1.5KN pull-out strength per weld point. Each panel then receives a durable 300g/m² hot-dip galvanized coating (85μm minimum) through a carefully monitored 450°C zinc immersion process, with optional PVC coating (0.4-0.6mm) available in standard colors. The final assembly incorporates robotic welding of 60×40mm rectangular steel tubing frames, with 100% dimensional inspection (±2mm tolerance) and load testing (500kg static pressure) before weatherproof packaging. Our ISO 9001-certified manufacturing maintains ≤0.5% defect rates through automated optical inspection systems and full material traceability, with capacity to produce 5000m²/day while accommodating custom wire diameters or mesh sizes within 24 hours - all verified through PAS 68 crash testing and BS EN 10223-3 anti-cut certification.

FAQ:

Q: How long does this fence last?
A: At least 25 years, even near the ocean. With extra coating, over 35 years.

Q: Can someone climb over it?
A: Very hard! The triangle shape gives no places to put hands or feet.

Q: How fast can it be installed?
A: Much faster than normal fences - about 50% quicker because panels come ready.

Q: Does it need maintenance?
A: Almost none! Just check it sometimes like you check your house walls.

Q: Is it expensive?
A: Costs more at first but saves money because it never needs replacing.

Q: Can I get a sample?
A: Yes, we can send small samples or show you nearby projects.
