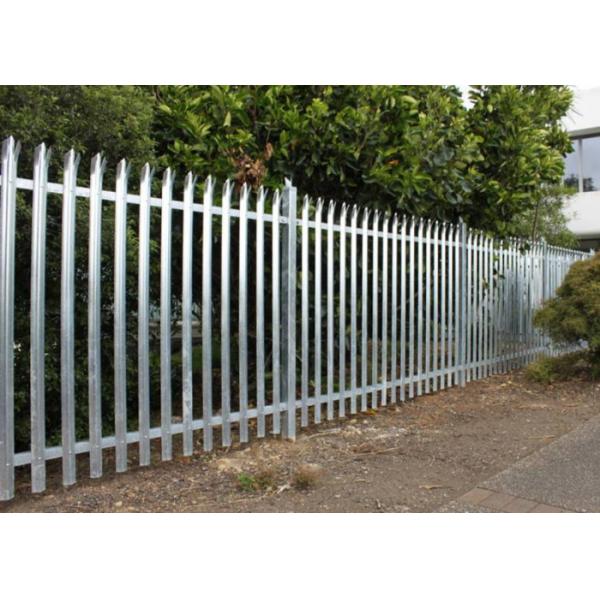

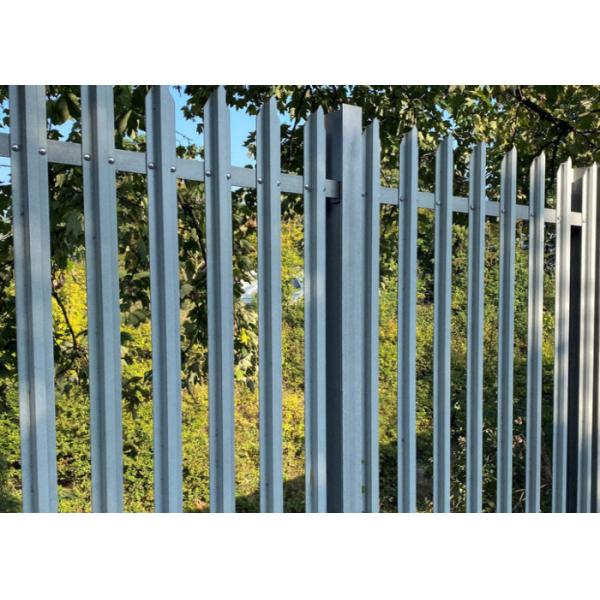

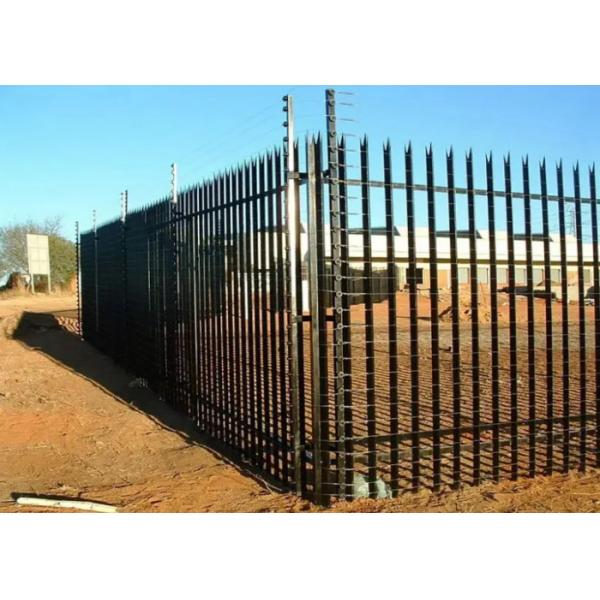

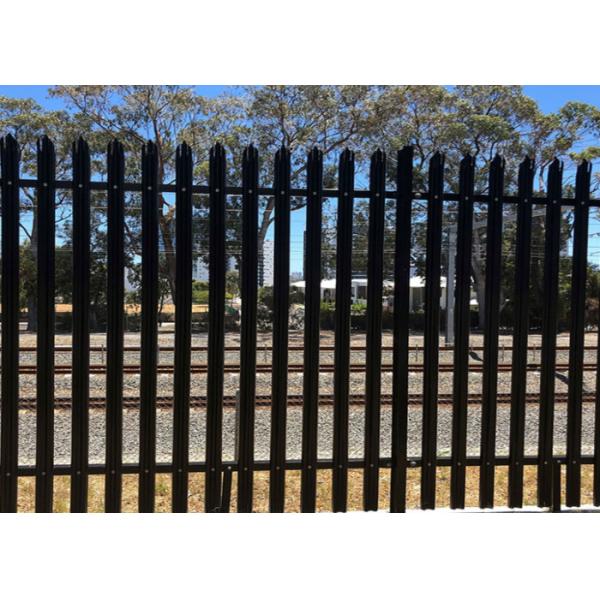

Steel Palisade Fencing 1.8m-3.0m Anti-Climb Security Barrier
Steel Palisade Fencing 1.8m-3.0m Anti-Climb Security Barrier
Steel Palisade Fencing 1.8m-3.0m Anti-Climb Security Barrier
Steel Palisade Fencing 1.8m-3.0m Anti-Climb Security Barrier
Steel Palisade Fencing 1.8m-3.0m Anti-Climb Security Barrier
Steel Palisade Fencing 1.8m-3.0m Anti-Climb Security Barrier
Specifications
Brand Name :
YUANHAI
Model Number :
YH-PF
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50sets
Price :
$5.5-13.6/㎡
Payment Terms :
L/C,T/T
Supply Ability :
5000Sets Per Month
Delivery Time :
5-8 work days
Packaging Details :
Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Feature :
Easily Assembled,Eco Friendly,Waterproof
Metal type :
Steel,Iron
Pressure treated wood type :
Heat Treated
Color :
black,Blue,white,Green,red
Product name :
Steel Palisade Fence Designs,palisade fencing
Height :
1.8m,2.0m,1.2-2.2meters
Application :
Residential,Garden,school
Length :
2.75m,2.0-2.75m,50m 100m
Description
High Security Steel Palisade Fencing Anti Climb Durable Perimeter Protection
Easily Assembled
Eco Friendly
Waterproof
Steel/Iron
Heat Treated
Product Overview
Our High Security Steel Palisade Fencing provides superior perimeter protection for critical infrastructure and high-risk facilities. Engineered with vertical pales and anti-climb design, this fencing system delivers maximum intrusion resistance while maintaining long-term durability in harsh environments.
Technical Specifications
Parameter Specification
Material S355JR Carbon Steel (Galvanized)
Pale Dimensions 12mm x 65mm (Thickness x Width)
Height Options 1.8m, 2.1m, 2.4m, 3.0m (Custom Available)
Coating Hot-Dip Galvanized (Minimum 85μm)
Mesh Opening 115mm (Standard), 75mm (High Security)
Post Centers 2.5m (Standard), 3.0m (Economy Option)
Impact Resistance PAS 68:2013 Certified (50kJ Rating)
Installation Concrete Footing or Direct Ground Fixing
Key Features & Benefits
  • -Grade Security: Vertical pales with pointed tops prevent climbing. Anti-leverage design resists bending or spreading attacks.
  • Extreme Durability: 85μm galvanized coating withstands 25+ years in coastal environments. High-strength steel (355MPa yield strength) resists cutting/ramming.
  • Rapid Installation: Pre-assembled panels reduce on-site labor by 40%. Universal fixing system adapts to uneven terrain.
  • Low Maintenance: Self-cleaning design prevents debris accumulation. No painting required - maintains appearance for decades.
Applications
Government Facilities: Prisons, bases, border control
Critical Infrastructure: Power plants, airports, data centers
Industrial Sites: Oil refineries, chemical storage, logistics hubs
Commercial Properties: VIP estates, car compounds, high-value storage
Manufacturing Process
  • Steel Preparation: Cold-rolled steel coils cut to precise pale dimensions. CNC punching of fixing holes (±0.5mm tolerance).
  • Welding & Assembly: Robotic MIG welding of pales to horizontal rails. Automated straightening for perfect alignment.
  • Surface Treatment: 7-stage galvanizing process (450°C zinc immersion). Optional PVC coating (0.4mm thickness) in RAL colors.
  • Quality Control: 100% dimensional verification (laser scanning). Salt spray testing (2000+ hours to ASTM B117).
Performance Advantages
Impact Resistance: Withstands 50J impact (EN 1317 certified)
Climb Resistance: Exceeds CPNI security standards
Corrosion Protection: Salt spray tested to 1000 hours
Structural Integrity: Finite element analysis optimized
Sustainability: 100% recyclable materials
Custom heights, colors and security enhancements available upon request. Installation guides and CAD drawings provided with all orders.
