Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
Specifications
Brand Name :
YUANHAI
Model Number :
YH-08
Certification :
ISO 9001:2015
Place of Origin :
Anping,Hebei,China
MOQ :
50pcs
Price :
US$2~10
Payment Terms :
T/T
Supply Ability :
500 Ton/Tons per Month
Delivery Time :
according to your quantity
Packaging Details :
steel pallet
Production Name :
Perforated Wire Mesh
Key Word :
Perforated sheet
Pass Design :
Round hole and long strip hole
Materials :
Aluminum,Stainless Steel
Margin :
1/2 inch
Width :
36 inch
Hole Diameter :
0.8mm - 25mm
Outline Size :
1.22*2.44m or can be customized
Normal Size :
1x1m ,1x2m ,1.2x2.4m ,1.22x2.44m ,ect .
Hole Pattern :
Slotted Hole
Weave Style :
CNC Punching
Corrosion Resistance :
High
Plate Thickness :
0.2-30mm
Colour :
Sliver,White,Green,Blue,Black,Etc
Description

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction



Perforated Wire Mesh Description

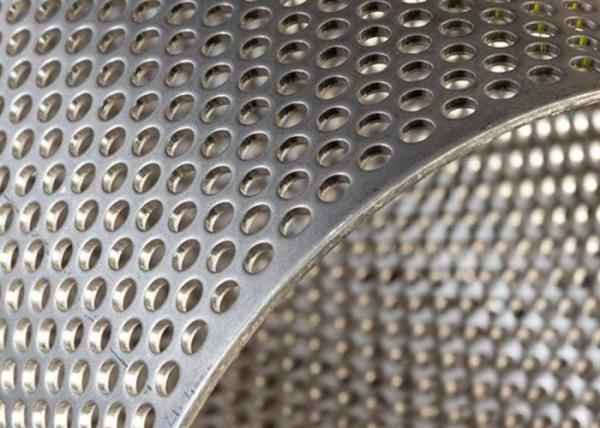

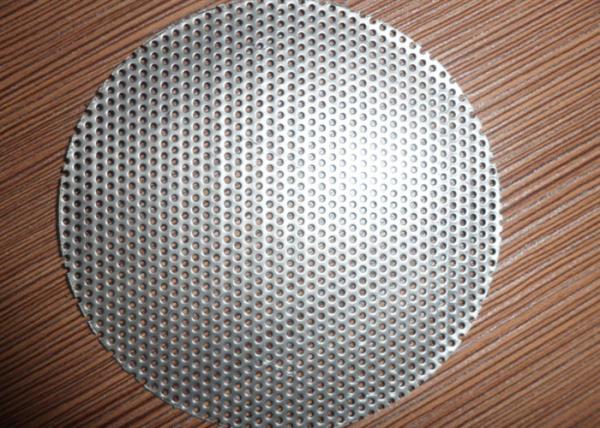

Perforated metal is sheet metal that has been mechanically stamped or punched to create a pattern of holes. These holes can be various shapes and sizes, and are spaced to allow for a wide range of open areas. This makes it a versatile material for numerous applications, including architectural design, filtration, ventilation, and sound dampening.

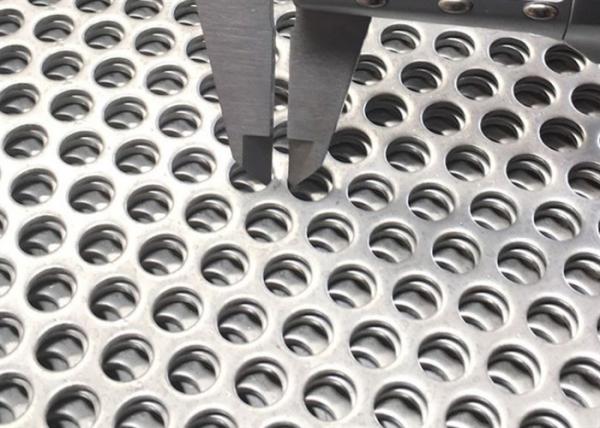

We supplied in sheet and coil forms with various hole sizes and also cut to size as per customers’ specific requirements.The round hole perforation is the most popular type of perforated pattern. Perforated metal is described by the hole size and the pitch. The pitch is the distance from the centre of one hole to the centre of the adjacent holes. All our perforated sheets are on a triangular pitch.

Perforated metal is one of the most versatile and popular metal products on the market today. Perforated sheets can range from light to heavy gauge thickness and any type of material can be perforated, such as perforated carbon steel.

Perforated metal is versatile, in the way that it can have either small or large aesthetically appealing openings. This makes perforated sheet metal ideal for many architectural metal and decorative metal uses. Perforated metal is also an economical choice for your project. Our perforated metal filters out solids, and diffuses light, air, and sound. It also has a high strength-to-weight ratio.


Perforated Wire Mesh Specifications


Plate material
Thickness of metal(mm)
Hole Dia.(mm)
Pitch(mm)
Sheet Width(mm)
Sheet Length(mm)
Porosity
Weight


Rolling plate
0.2
6
2
1
20
44
0.88
0.35
5
4
1
20
24
2
0.45
6
3
1
20
35
2.5
0.8
3
3
1
20
19.6
3






Flat plate
0.5
1
1
1
2
19.6
3.14
0.55
1.1
1.2
1
2
22.67
3.411
0.55
1.5
2.8
1
2
26.03
3.268
0.8
1.5
1.5
1
2
19.6
5
0.8
2.0
3.4
1
2
30.78
4.465
1.5
2
2
1
2
19.6
9.4
1.5
5.0
8
1
2
35.39
7.843
3
5
16
1
2
19.6
18.8


Stainless steel plate
0.5
1
1
1
2
19.6
3.14
0.8
1.5
1.5
1
2
19.6
5
1
2
2
1
2
19.6
6.28
2
5
16
1
2
19.6
6.28
Aluminum plate
0.5
1
1
1
2
19.6
1.08
0.8
3
3
1
2
19.6
1.72
1.6
2
2
1
2
19.6
3.24

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction


Product Application


Perforated Metal Products are commonly used in the following industries:
Industrial / Architectural / Environmental / Food & Beverage / Chemical & Pharma / Mining / Petrochemical

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction


Product Packing


1.metal/wooden pallet

2.PVC shrinked

3.black waterproof paper

4.plastic film then carton

5.Also at your request

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction


Product Advantages


Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction

Durable Stainless Steel Galvanized Perforated Wire Mesh For Construction
