Hot Dip Galvanized Steel Grating for Industrial Drainage
Hot Dip Galvanized Steel Grating for Industrial Drainage
Hot Dip Galvanized Steel Grating for Industrial Drainage
Hot Dip Galvanized Steel Grating for Industrial Drainage
Specifications
Brand Name :
YUANHAI
Model Number :
YH-G1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50Pcs
Price :
USD5-26/pc
Payment Terms :
T/T,L/C
Supply Ability :
5000Pcs Per Month
Delivery Time :
5-10days
Packaging Details :
1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Application :

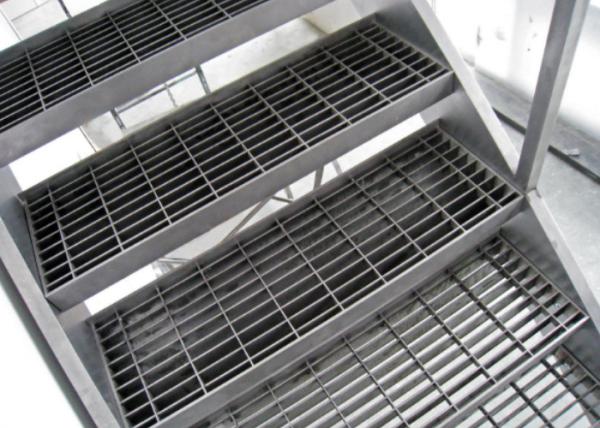

Floor,walkway mesh,stair
Product name :
Steel Grating,Galvanized,Safety grating walkway mesh concrete steel grating
Type :

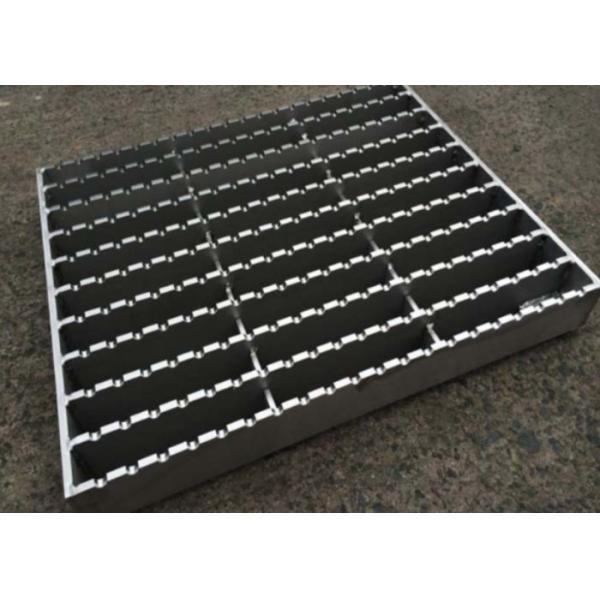

Plain Bar Grating,Serrated Bar Grating
Standard :
ISO9001
Color :
on your request
Sample :
Free
Grating size :
3'x20',1000x1000mm,1.8x6m or do as client's demand
Usage :

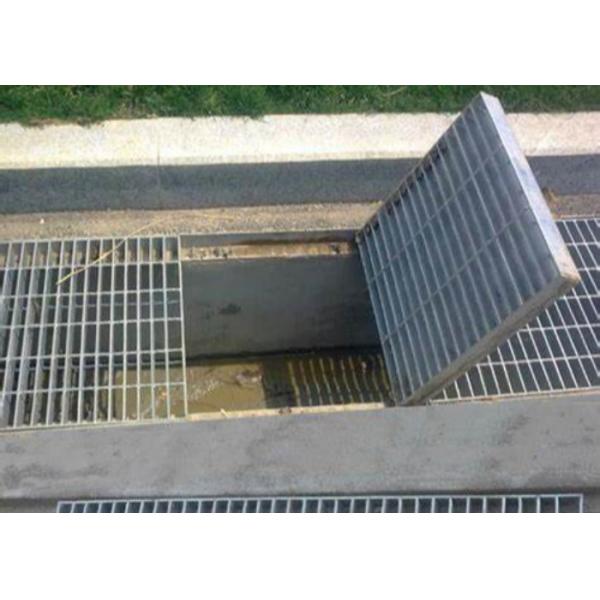

Public Drain Area,metal building material,Concrete Construction Support
Description

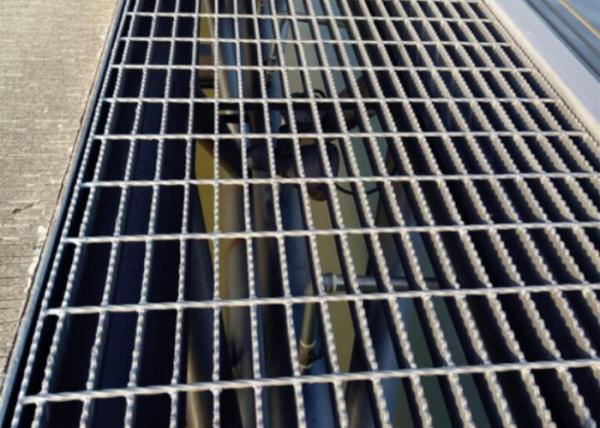

Hot Dip Galvanized Steel Drainage Grating High Flow Capacity Industrial Pavements
Product Specifications
Attribute Value
Application Floor, walkway mesh, stair
Product name Steel Grating, Galvanized, Safety grating walkway mesh concrete steel grating
Type Plain Bar Grating, Serrated Bar Grating
Standard ISO9001
Color On your request
Sample Free
Grating size 3'x20', 1000x1000mm, 1.8x6m or as per client's requirements
Usage Public Drain Area, metal building material, Concrete Construction Support
Product Description
Designed for industrial drainage challenges, our Hot-Dip Galvanized Heavy-Duty Steel Drainage Grating combines rugged durability with exceptional water management. Constructed from 5mm-thick Q355B steel flat bars, the grating features 25mm-wide slots and an 83% open area, achieving a flow rate of 15 m³/h per m² - 3x faster than concrete drains.
Technical Specifications
Parameter Details
Material Q355B carbon steel, hot-dip galvanized
Flat Bar Size 50x5mm (standard), 60x6mm for extreme loads
Slot Width 25mm (optimized for debris retention while maximizing flow)
Load Capacity Static load: 20 tons/m² (truck traffic); impact load: 10 tons (drop test)
Flow Rate 15 m³/h per m², suitable for 100-year storm events
Corrosion Resistance Passed 2,000-hour salt spray test (ASTM B117), pH 2-12 chemical resistance
Panel Size Standard: 2000x1000mm, 4000x1000mm (custom lengths up to 6000mm)
Key Advantages
  • Industrial-Grade Drainage Performance: 83% open area prevents water pooling with flow rates 3x faster than concrete drains
  • Unmatched Durability: 20+ year warranty with galvanized coating that withstands heavy machinery and harsh chemicals
  • Installation Efficiency: Lightweight modular panels (32kg/m²) speed installation by 40% vs concrete drains
  • Environmental Compliance: Suitable for capturing oil/chemical spills in compliance with EPA regulations
Applications
Ideal for industrial pavements, infrastructure drainage, wastewater facilities, and commercial sites including:
  • Truck yards and factory driveways
  • Highway medians and bridge decks
  • Wastewater treatment plant walkways
  • Parking garages and fuel station aprons
Frequently Asked Questions
Q: Can this grating handle acidic wastewater?
A: Yes. The optional epoxy coating provides pH 2-12 resistance, suitable for chemical plant drainage.
Q: What is the maximum vehicle weight it can support?
A: The 60x6mm flat bar model supports up to 40-ton trucks when installed on 200mm centers.
Q: How do I prevent debris from blocking the slots?
A: Use our optional debris baskets (sold separately) or specify 15mm slots for fine debris control.
Q: Can I get a sample with custom slot spacing?
A: Yes. Free 1m² samples with your specified slot width are available within 7 working days.
