Specifications
Brand Name :
YUANHAI
Model Number :
YH-G1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50Pcs
Price :
USD5-26/pc
Payment Terms :
T/T,L/C
Supply Ability :
5000Pcs Per Month
Delivery Time :
5-10days
Packaging Details :
1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Material :
Steel,Galvanized Sheet,Aluminum Mesh,Q235
Application :
Floor,walkway mesh,stair
Type :
Plain Bar Grating,Serrated Bar Grating,Plain
Standard :
ISO9001
Color :
Silver,black
Sample :
Free
Shape :
Square,customized
Grating size :
3'x20',1000x1000mm
Description

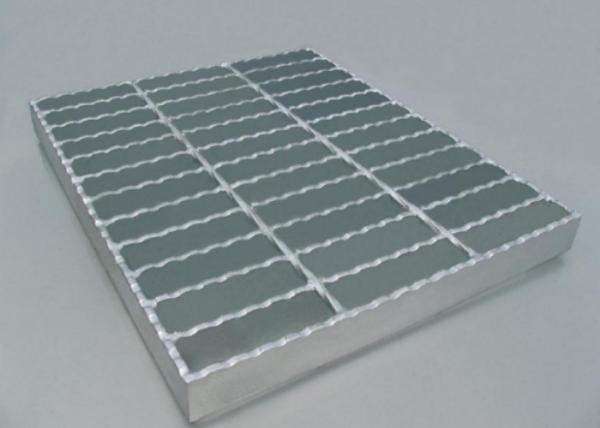

Eco-Galvanized Modular Steel Walkway Grating Quick-Connect Industrial Platforms

Product Introduction

Our Eco-Galvanized Modular Steel Walkway Grating revolutionizes industrial flooring with its sustainable design and rapid installation system. Crafted from recycled steel with a chromium-free galvanized coating, the grating combines environmental responsibility with rugged performance. The modular panels feature a patented Quick-Connect locking system, enabling 60% faster installation than traditional welded gratings—ideal for factories, warehouses, and energy plants seeking green, efficient solutions.

Data Sheet

Parameter Details
Material Recycled Q235B steel, eco-galvanized (Zn coating ≥80μm, chromium-free passivation)
Bar Size 30x3mm, 40x5mm (standard: 40x5mm for medium loads)
Mesh Aperture 30x100mm, 50x100mm (customizable for light/food industry applications)
Panel Dimensions Standard: 1200x3000mm, 600x3000mm (modular tiles for easy replacement)
Load Capacity Uniform load: 3.8 kN/m²; point load: 1.2 kN (tested to EN 1090-1 standards)
Installation Time 100m² installed in 2 hours (2-person team, no welding required)

Production Process

  1. Eco-Friendly Galvanization:
    • Recycled Steel Base: 85% post-industrial recycled steel reduces carbon footprint by 35% vs. virgin steel.
  2. Modular Engineering:
    • Panels pre-cut with precision CNC machines, featuring interlocking edges and pre-drilled holes for Quick-Connect clips.
  3. Quick-Connect System:
    • Patented stainless steel clips (tested to 2kN pull force) snap onto panel edges, eliminating on-site welding and grinding.
  4. Quality Control:
    • Each panel undergoes eddy current testing for coating integrity and load simulation.

Key Advantages

1. Sustainability Meets Performance

  • Eco-Certified: EU Ecolabel ensures minimal environmental impact, ideal for LEED/BREEAM-certified projects.
  • Recyclable Design: 100% recyclable at end-of-life, with 85% recycled content reducing raw material waste.

2. Rapid Modular Installation

  • Tool-Free Assembly: Quick-Connect clips allow installation with basic hand tools, saving 60% labor costs vs. welded gratings.
  • Easy Replacement: Damaged panels can be swapped out in minutes, minimizing downtime for industrial maintenance.

3. Industrial-Grade Durability

  • Corrosion Resistance: Eco-galvanized coating passes 1,000-hour salt spray test without red rust, suitable for food processing or pharmaceutical plants.
  • Vibration Resistance: Modular joints absorb machine vibrations, reducing noise and preventing loosening over time.

4. Cost-Effective Solution

  • 20% Lower Total Cost: Reduced labor + maintenance costs over 20-year lifecycle vs. traditional steel gratings.

Product Features

  • Anti-Static Treatment: Optional conductive coating for electronics factories.
  • Hygienic Design: Smooth edges and closed profiles meet FDA standards for food processing facilities.
  • Customizable Surface: Textured or serrated finish for slip resistance.

Applications

  • Green Industrial Projects:
    • LEED-certified factory walkways, sustainable warehouse flooring, and renewable energy plant platforms.
  • Food & Pharma Sectors:
    • Hygienic walkways in breweries, pharmaceutical manufacturing, and dairy facilities (easy-to-clean surface).
  • Maintenance-Intensive Environments:
    • Modular access floors in data centers, where quick panel removal enables easy cable management.
  • Temporary Structures:
    • Portable walkways for construction sites, outdoor events, or disaster relief operations.

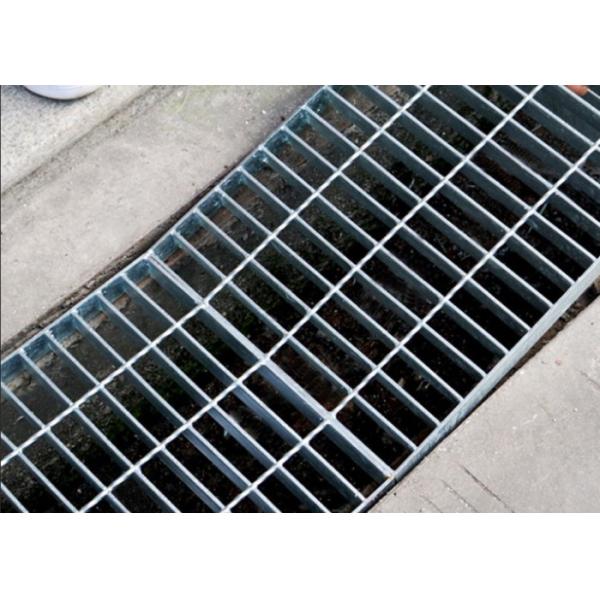

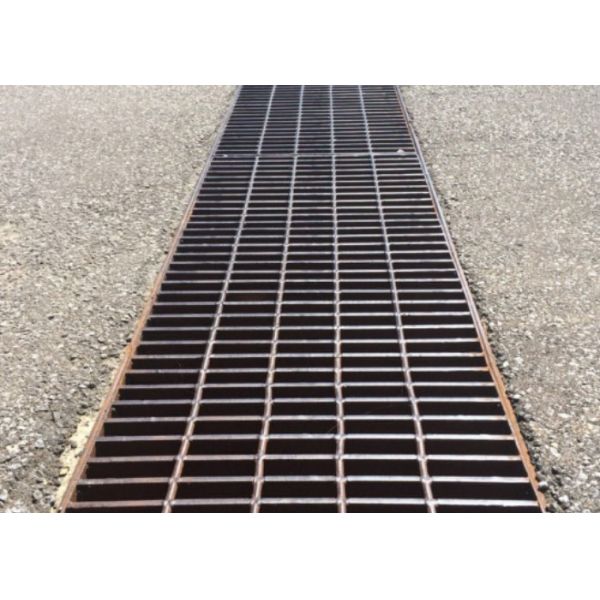

Eco-Galvanized Steel Walkway Grating Modular Industrial PlatformsEco-Galvanized Steel Walkway Grating Modular Industrial Platforms
