SS304 50mm Metal Pall Ring Packing for Absorption Towers
SS304 50mm Metal Pall Ring Packing for Absorption Towers
SS304 50mm Metal Pall Ring Packing for Absorption Towers
SS304 50mm Metal Pall Ring Packing for Absorption Towers
Specifications
Brand Name :
Yuanhai
Model Number :
YH-04
Place Of Origin :
Hebei Province,China
Certification :
ISO9001:2015
MOQ :
1 M³
Price :
$320-2100
Packaging Details :
By Wooden Box
Delivery Time :
7 Days
Payment Terms :
T/T
Supply Ability :
800 Cubic Meter/Cubic Meters Per Month
Product Name :
Metal Random Packing
Key Word :
Tower Packing /Pall Ring Packing
Material :
Stainless Steel 304 / 316
Performance :
Heat-resistant
Oem :
Yes
Size :
16,25,38,50,76mm
Pressure Drop :
Low
Feature :
Low Pressure Drop, High Efficiency
Hs Code :
8419909000
Place or Origin :
Hebei Province,China
Description
SS304 50mm Random Tower Packing Pall Ring Packing For Absorption Towers
Product Attributes
Attribute Value
Product Name Metal Random Packing
Key Word Tower Packing /Pall Ring Packing
Material Stainless Steel 304 / 316
Performance Heat-resistant
Oem Yes
Size 16,25,38,50,76mm
Pressure Drop Low
Feature Low Pressure Drop, High Efficiency
Hs Code 8419909000
Place or Origin Hebei Province,China
Product Description

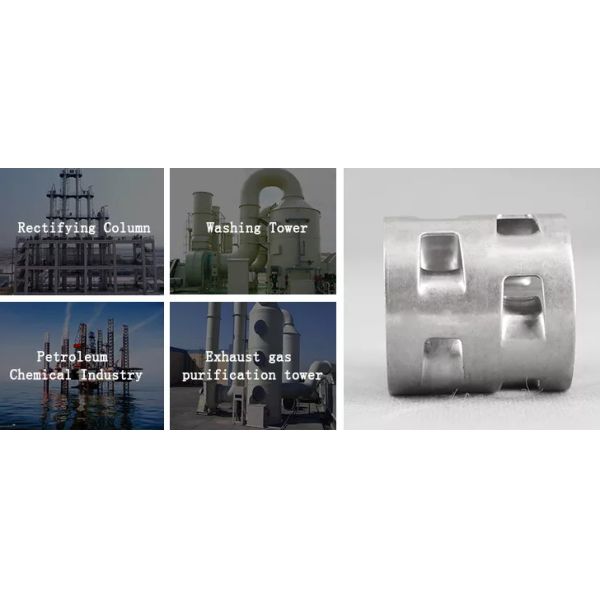

The Metal Pall ring is a highly efficient packing material designed for vacuum distillation processes, offering optimal surface area and void space for superior heat transfer. Its applications extend to various industrial systems including:
  • Wet scrubbers for gas absorption, enhancing contact between gas and scrubbing liquid
  • Cooling towers for uniform water distribution and effective heat transfer
  • Mist eliminators for removing liquid particles from gas streams
  • Gas absorption columns, gas strippers, and air washers
Key Features
  • High resistance to fouling
  • Available in multiple materials
  • Suitable for high temperature applications
  • Mechanically robust construction
  • Reduced probability of breakage
  • Excellent liquid/gas distribution
  • High mass transfer efficiency
Technical Parameters
Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.
Preferred Sizes (mm) 16*16*0.3 | 25*25*0.3 | 38*38*0.4 | 50*50*0.5 | 76*76*0.6 | 89*89*0.7
Bulk density (kg/m3) 345 | 214 | 193 | 182 | 142 | 145
Number (per m3) 201000 | 51000 | 15000 | 6500 | 1830 | 1160
Surface area (m2/m3) 346 | 212 | 145 | 106 | 69 | 62
Free volume (%) 95.5 | 96.2 | 96.7 | 97.5 | 97.4 | 97.1
Typical Application Absorption, scrubbing and stripping services
Applications
This packing material is widely used in industrial processes including:
  • Absorption, scrubbing, and stripping services
  • CO2 and H2S selective absorption systems
  • Air pollution control scrubbers
  • Heat transfer applications
  • Liquid-liquid extraction processes
  • Light ends fractionators in refining operations
Product Images
SS304 50mm Metal Pall Ring Packing for Absorption Towers SS304 50mm Metal Pall Ring Packing for Absorption Towers SS304 50mm Metal Pall Ring Packing for Absorption Towers SS304 50mm Metal Pall Ring Packing for Absorption Towers SS304 50mm Metal Pall Ring Packing for Absorption Towers
Frequently Asked Questions
What is the brand name of the metal random packing product?
The brand name is Yuanhai.
What is the model number of the metal random packing product?
The model number is YH-04.
Where is the metal random packing product manufactured?
The product is manufactured in Hebei Province, China.
What is the certification of the metal random packing product?
The product is certified with ISO9001:2015.
What is the minimum order quantity for the metal random packing product?
The minimum order quantity is 1 m³.
