Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Steel Palisade Fencing 2-3m Width 10 Year Warranty
Specifications
Brand Name :
YUANHAI
Model Number :
YH-PF
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10Sets
Price :
$5.5-13.6/㎡
Payment Terms :
T/T,L/C
Supply Ability :
5000Sets Per Month
Delivery Time :
5-8 work days
Packaging Details :
Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Product Name :
Steel Palisade Fencing
Key Works :
"D" profile, "W" profile
Top Shape :
Pointed
Pickets :
68 or 72mm D or W
Horizontal Rails :
45*45*6, 50*50*6 or as your requirement
Mesh Size :
1/4 Inch
Panel Width :
2m---3m
Surface Treatment :
Hot dip galvanized,Powder coated
Top Point :
Triple point, single point, etc
Usage :
Garden,School,playground
Suggested Pale Thickness :
2-6mm
Warranty :
10 years
Description

Customized Iron Steel Palisade Fencing Outdoor Garden Buildings

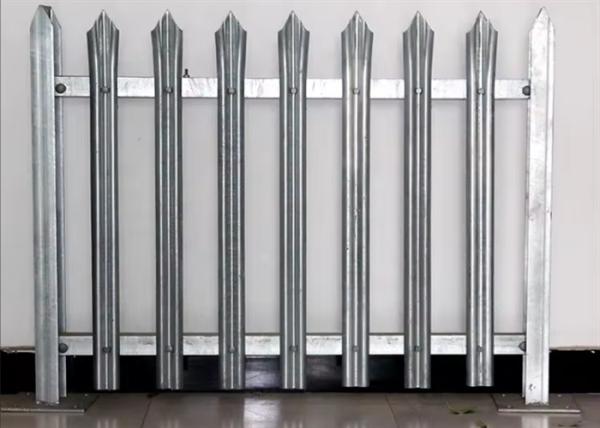

Description of Steel Palisade Fencing


Palisade Fence is one of security fencing series. As a commercial fence, using hot rolledand cold rolled steel belts to form a secure panel. There are also three types of tops, including "W" profile, "D" profile and angle iron. Palisade fencing with beautiful structure and various styles are popular and widely used.

Zinc steel, also known as zinc alloy, is a zinc steel fence that is made of zinc alloy material. Because it has the advantages of high strength, high hardness, exquisite appearance, bright color, etc., it has become the mainstream product of villas, swimming pools, industrial parks, and commercial parks. We purchase steel bands of more than 100 g zinc layer from important steel production sites in China, to improve the service life of the product from the raw materials. We have our own machines of production pipelines, with an annual pipeline production capacity of 20,000 tons. After this process, it is processed into the steel pipe to make the specifications required for the fence.


Specifications of Steel Palisade Fence


Fence panel height
1m-6m
Fence panel width
1m-3m
Pale height
0.5m-6m
Pale width
W pale 65-75mm d pale 65-70mm
Pale thickness
1.5-3.0mm
Angle rail
40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness
3mm-6mm
RSJ post
100mmx55mm 100mmx68mm 150mmx75mm
Square post
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness
1.5mm-4.0mm
Straight fishplates or post clamps
30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts
M8XNo.34 for pale fixing M12xNo.4 for rail fixing

Steel Palisade Fencing 2-3m Width 10 Year Warranty

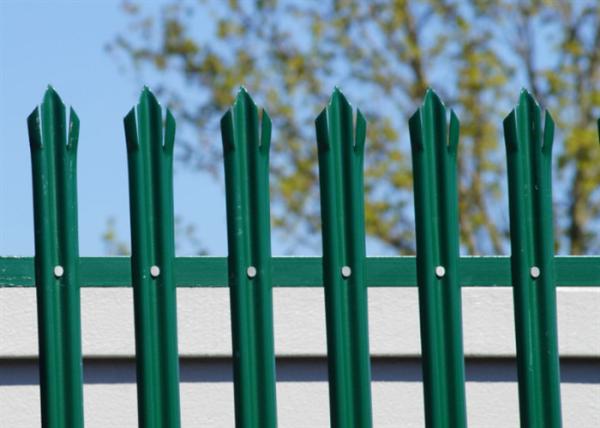

Pales-"W" section



Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.



Width
Thickness
Surface Treatment
Head
Height
68mm-70mm
2.0mm
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
Single point
Triple point
1200mm-3000mm
2.5mm
3.0mm



Pales-"D" section


Compared with "W" profile pales, "D" profile is more economical.


Width


Thickness


Surface Treatment


Head


Height


60mm


2.0mm


Galvanized and electrostatic polyester coated
or Hot dipped galvanized


Single point
Triple point


1200mm-3000mm


2.5mm


3.0mm

Pale-Angle iron


Its cost is similar with "D" profile, but its structure is simpler than "D" profile.


Width
Thickness
Surface Treatment
Head
Height
40*40
2.0mm
3.0mm
Galvanized and electrostatic polyester coated or Hot dipped galvanized
Single point
Triple point
1200mm-3000mm


Application


Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.

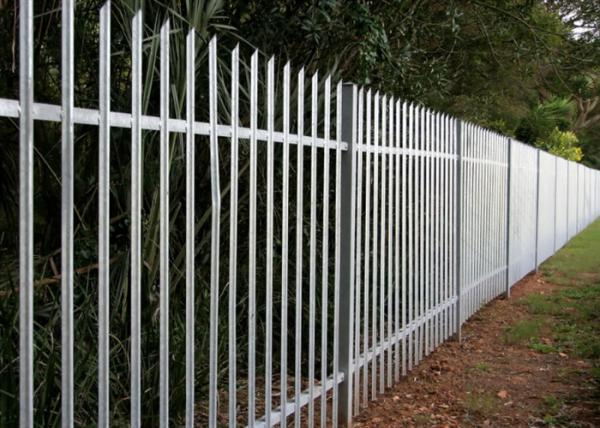

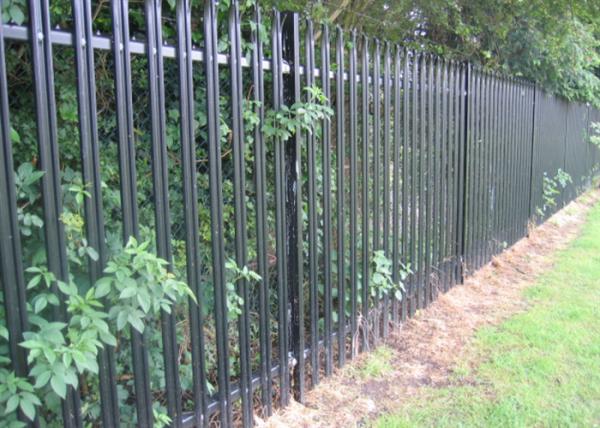

Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.

Steel Palisade Fencing 2-3m Width 10 Year Warranty


Packing



Steel Palisade Fencing 2-3m Width 10 Year Warranty
