Specifications
Brand Name :
YUANHAI
Model Number :
YH-ACF
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
US$20~80
Payment Terms :
T/T,L/C
Supply Ability :
500PCS PER MONTH
Delivery Time :
5-8 work days
Packaging Details :
1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Product Name :
358 Security Fencing
Key Words :
anti-climb anti-cut fence
Welded Strength :
range 540–690 N/m2.
Panel Height :
1.2m-6m ( Suggest size : 2m/2.4m/3m )
Horizontal Wire :
3.5mm
Application :
High security areas
Width :
2.5m
Material :
Galvanized steel wire
Finishing :
Galvanized,powder coated,PVC coated
Security Level :
Anti-Climb, Anti-Cut
Process :
Weaving And Welding
Sample :
For Free
Description

High Strength 358 Security Fencing Anti-Climb Protection Panels



358 security fence panel Description


358 mesh is the ultimate mesh among other mesh systemsIt is also known as wire-wall system.It is extremely difficultto cut through using conventional wire cutters. it offersmaximum security and anti-corrosion protection.This typeoffence is recommended where highly security is requiredDue to 4mm wire and rectangular mesh configuration,panel gives excellent through visibility and resistance tovandalism.Due to a finger and toe proof mesh pattern, thisis classified as anti- climb system which makes it idealsolution for highly risk areas.This system is used extensively by the Ministry of Defencearound high security sites.

The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.


Specification


WireWall 358
2.1m
2.4m
3.0m
Panel height
2134mm
2438mm
2997mm
Panel width
2515mm
2515mm
2515mm
Mesh size
12.7 x 76.2mm
12.7 x 76.2mm
12.7 x 76.2mm
Horizontal wire
4mm
4mm
4mm
Vertical wire
4mm
4mm
4mm
Panel weight
50kg
57kg
70kg
Posts
60 x 60 x 3 mm
60 x 60 x 3 mm
80 x 80 x 3 mm
Post length
2.8m
3.1m
4.0m
Clamp bar
40 x 6 m slotted
40 x 6 m slotted
40 x 6 m slotted
Fixings
8 galv bolt c/w Permacone secruity nut
No. of fixings
8
9
11

Feature



1.Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
2.Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut useless.
3.Beautiful appearance: the mesh surface is flat, and the perspective is higher.




Applications


Prisons
Sport Stadiums
Schools/Hospitals
Commercial Sites
Airports
Power stations
Industrial Estates
Power stations

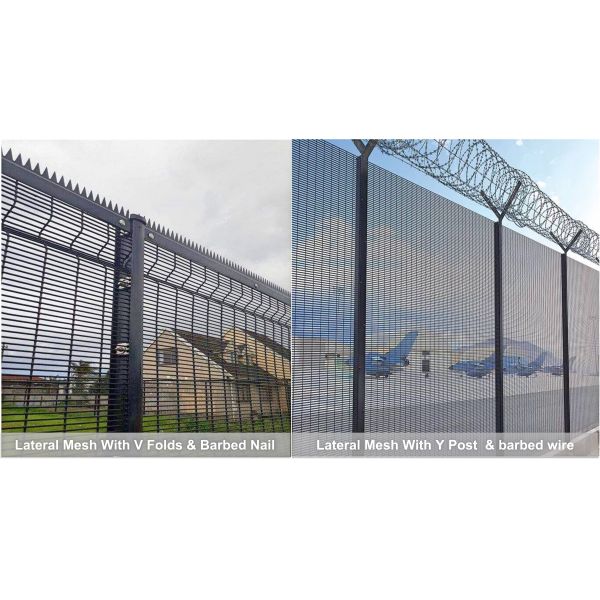

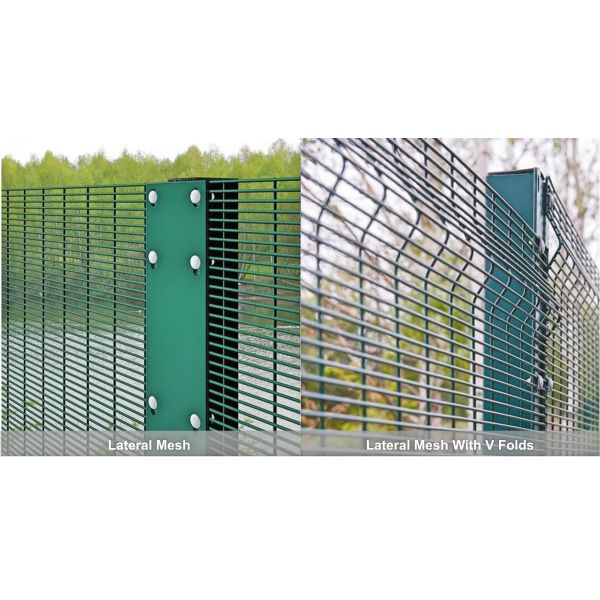

Type Of The 358 Fence Panel


358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

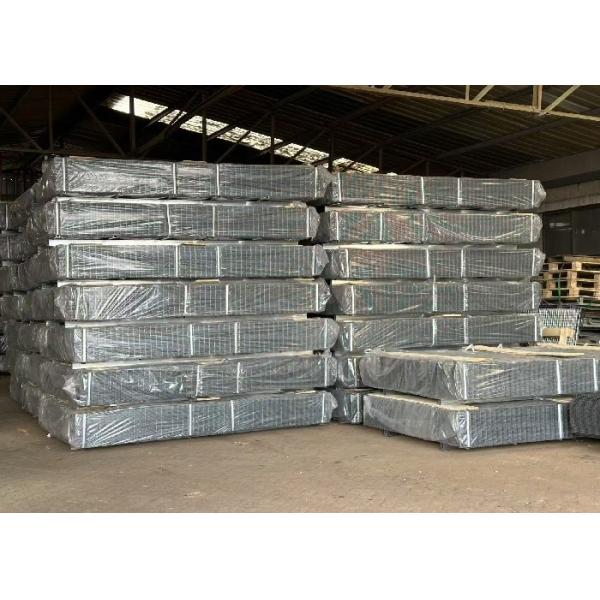

Packaging
