Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y
Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y
Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y
Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y
Specifications
Brand Name :
Yuanhai
Model Number :
YH-06
Certification :
ISO9001:2015
Place of Origin :
Hebei,China
MOQ :
1 cubic meters
Price :
USD300-1800/Cubic Meter
Payment Terms :
T/T
Supply Ability :
500 Cubic Meter/Cubic Meters per Month
Delivery Time :
5-10days
Packaging Details :
wooden case or customized
Product Name :
Metal Structure Packing
Key Word :
Metal Column Packing
Size :
125Y/250Y/350Y/450Y
Material :
304, 316, 316L, Alumina, copper bronze
Feature :
High Mass Transfer
MOQ :
1 cubic metre
Application :
absorption,scrubbing,stripping
Origin :
Hebei Province,China
Description

Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y

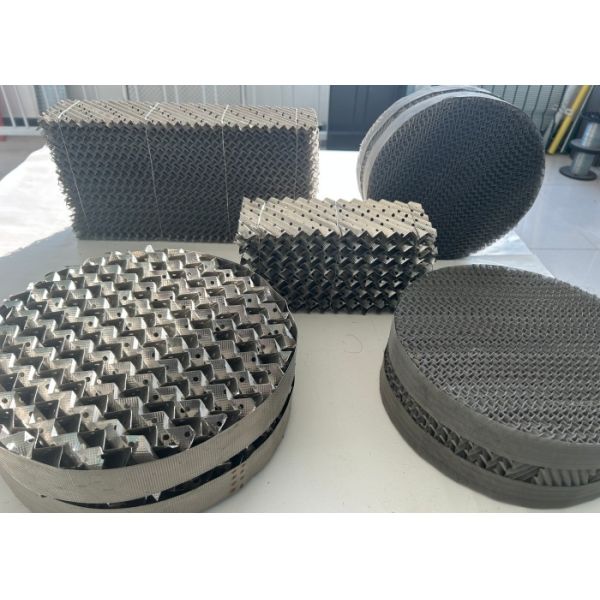

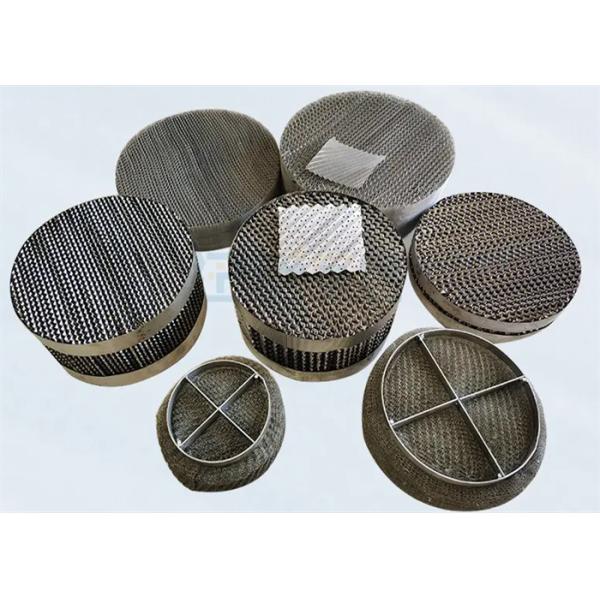

Metal Structured Packing Introduction

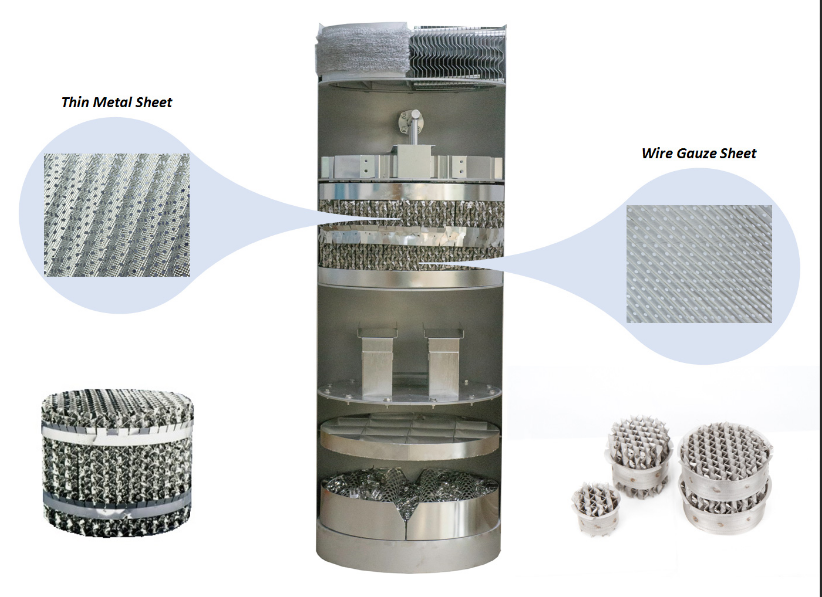

Metal structured packing can be made of various metal materials, such as low carbon steel, stainless steel, Monel, Ti and others. The stainless steel structured packing is the most widely used because of the excellent corrosion and rust resistance and durable properties. Metal structured packing has different packing types, which can be divided into wire gauze structured packing and perforated plate structured packing.


Metal Structured Packing Technical Specification

The specification is based on SS304 material:

Item Surface Aream2/m³ Free Volume
%		 P
Pa/m		 Theo. plate
pc/plate		 F factor
m/s(kg/m³)0.5
SB-125Y 125 98 2x10-4 1-1.2 3
SB-250Y 250 97 2x10-4 2-2.5 2.6
SB-350Y 350 94 2x10-4 3.5-4 2
SB-500Y 500 92 3x10-4 4-4.5 1.8
SB-125X 125 98 1.4x10-4 0.8-0.9 3.5
SB-250X 250 97 1.8x10-4 1.6-2 3.5
SB-350X 350 94 1.3x10-4 2.3-2.8 2.2
SB-500X 500 92 1.8x10-4 2.8-3.2 2


Metal Structured Packing Features

  • Its high mass transfer surface area is suitable for close boiling components distillation due to shorter columns.
  • Its structured arrangement ensures no channeling of liquid and requires minimum liquid redistribution.
  • Due to its very low pressure drop, it is recommended for vacuum distillation systems.
  • It has higher vapour load capacity as compared to random packing and trays.
  • It provides low liquid hold-up.

Metal Structured Packing Application

  • Distillation Columns: Used in separation processes to efficiently separate mixtures based on differences in boiling points, such as in the production of chemicals, alcohol, or crude oil refining.

  • Absorption Towers: In air pollution control, metal structured packing is used to remove gases like carbon dioxide, sulfur dioxide, and ammonia from industrial exhaust streams.

  • Gas Scrubbing: Applied in systems where pollutants need to be absorbed by a liquid, such as in chemical scrubbers for removing volatile organic compounds (VOCs) or other harmful gases.

  • Heat Exchange Systems: Metal structured packing is used to enhance heat transfer efficiency in heat exchangers, cooling towers, and other thermal management systems.

  • Pharmaceutical and Food Processing: In pharmaceutical manufacturing and food production, metal structured packing is used for solvent recovery, purification, and separation processes.

Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y


Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y


Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y


Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y


Corrugated Metal Structured Packing for Absorption & Scrubbing 500Y
