Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm
Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm
Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm
Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm
Specifications
Model Number :
YH-G1
Key Word :
Steel bar grating
Supply Ability :
5000Pcs Per Month
Cross Bar :
5mm,6mm,8mm
Feature :
High strength, light structure, high bearing.
Place of Origin :
CHINA
Surface Treatment :
Hot Dip Galvanized,Electric Galvanized
Brand Name :
YUANHAI
MOQ :
50Pcs
Bearing Bar :
20x5, 25x3, 25x4, 25x5, 30x3, 30x5
Certification :
ISO9001
Price :
USD5-26/pc
Bearing Bar Thickness :
2.5-10mm
Material :
Q195,Q235
Packaging Details :
1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Cross Bar Pitch :
40, 50, 60, 65, 76, 100 etc
Application :
platform ,park , driveway
Product Name :
Steel Grating
Description

Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm

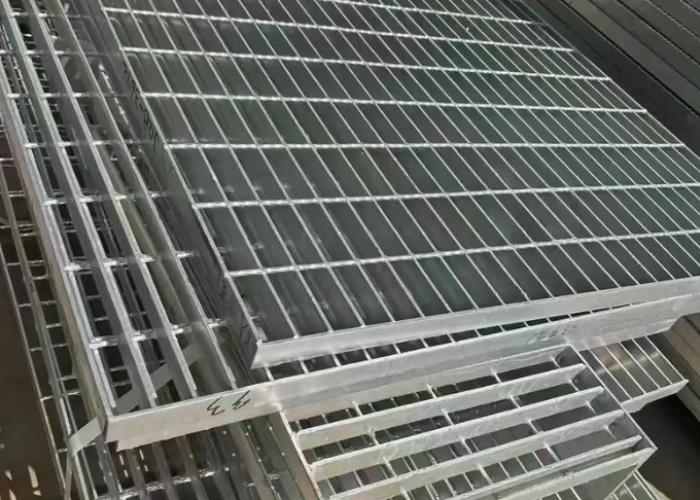

Steel Walkway Grating Description


Steel Walkway Grating is manufactured by welding carbon steel bearing bars and cross bars together. Hot-dip galvanized surface provides excellent rust resistance for outdoor and indoor use. It features open structure for ventilation, drainage and anti-accumulation of dust. Widely adopted as safe walking surfaces for factory platforms, pedestrian passages and trench covers. Custom sizes and serrated anti-slip options are available to meet different load and safety requirements.


Steel Walkway Grating Specification
Item Description
Bearing bar

20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing bar pitch

25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like), I bar (I section)
Materials Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc
Galvanizing standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E. Japan: JJS
Surface treatment

Black,Electro galvanized(Cold dip galvanized),Hot dipped galvanized,Painted,Powder coated,or as customers’ requirements.And hot dipped galvanizing is generally recommended.


Steel grid gratings Surface Treatment


1) Hot dip galvanized as per ASTM A123 or EN ISO 1461 or special requirement

2) Painted or Powder Coated

3) HDG plus painted/powder coated


Steel Walkway Grating Features

  • High load bearing capacity
  • Serrated anti-slip surface optional
  • Hot-dip galvanized for anti-corrosion
  • Open mesh for drainage & ventilation
  • Lightweight, easy installation
  • Low maintenance & long service life
  • Custom sizes and shapes available
  • Stable welded structure

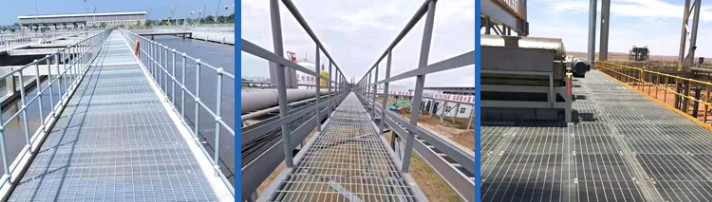

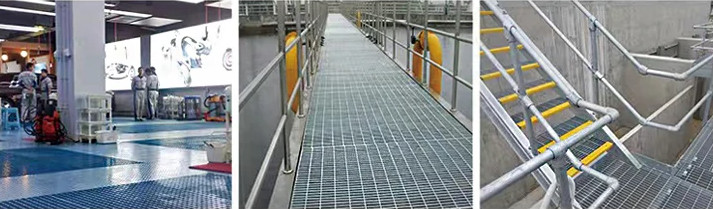

Steel Walkway Grating Applications

  • Factory pedestrian passage
  • Water treatment plant
  • Trench & drainage cover
  • Marine & offshore walkway
  • Chemical workshop
  • Municipal engineering
  • Park & outdoor walkway

Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm


Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm

Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm
