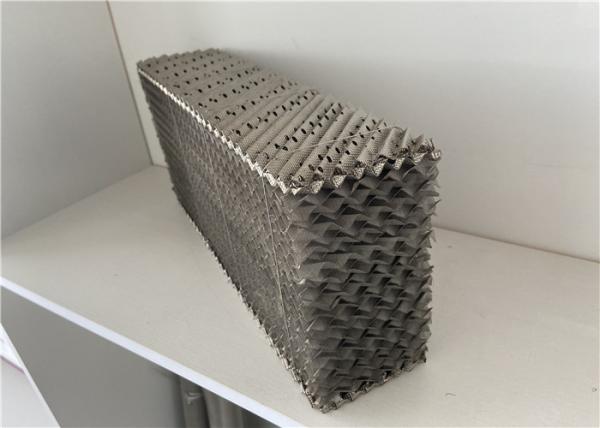

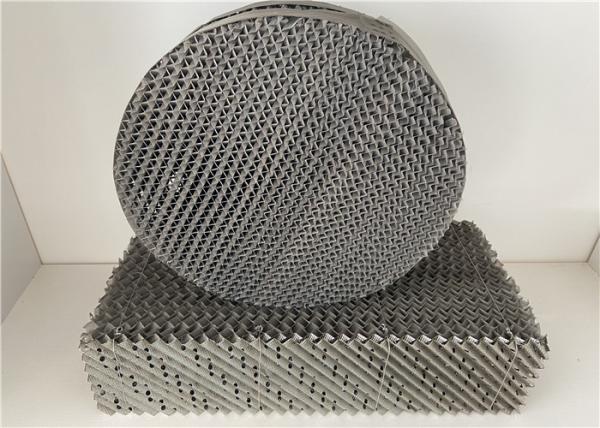

Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
Specifications
Brand Name :
YuanHai
Model Number :
YH-03
Certification :
ISO 9001
Place of Origin :
Hebei,China
MOQ :
30 cubic meters
Price :
USD200-2500/m³
Payment Terms :
T/T
Supply Ability :
500 Cubic Meter/Cubic Meters per Month
Delivery Time :
3-8days
Packaging Details :
wood box or customer's request
Material :
SS304,304L,410,316,316L
Certificate :
ISO9001:2008
Chemical Composition :
99.95%Min
Type :
125Y, 250Y, 350Y, 700Y etc
Application :
Distillation, Absorption desportion
Package :
carton box, wooden box for structured packing
Description

SS 304 Structured Column Metal Tower Packing For Distribution Of Gas-Liquid

Structured Column Metal Tower Packing Description

Metal structured column packing is characteristic of good low-load properties, large number of plates per meter in theory, and the number of plates will decrease with gas load increasing. The packing can meet the demand for accurate, large-scale, high vacuum distilling apparatus, and provide convenient conditions for distilling separation of some system difficult for separating, heat-variable system and high-purity products.


Structured Column Metal Tower Packing Specification

Product Name Metal Structured Tower Packing
Model EYZL70221E1
Material PP/PVC/Stainless steel/Carbon steel/Aluminum/Copper/Ceramic
Life Span >3years
Plastic Corrugated Plate Packing(X:Incline angl 30°, Y:Incline angle 45°)
Type

Surface Area

m²/m³

Volid

%

Pressure Drop

Mpa/m

Packing Density

kg/m

 Theo Plate

Liquid Loading

m³/m².hr

Max F Factor

m-1
SB-125Y 125 98 2*10-4 45 1-2 0.20-100 3
SB-250Y 250 97 3*10-4 60 2-2.5 0.20-100 2.6
SB-350Y 350 94 2*10-4 80 3.5-4 0.20-100 2
SB-500Y 500 92 3*10-4 130 4-4.5 0.20-100 1.8
SB-125X 125 98 1.4* 10-4 40 0.8-1.9 0.20-100 3.5
SB-250X 250 97 1.8*10-4 55 1.5-2 0.20-100 2.8
SB-350X 350 94 1.3*10-4 75 2.3-2.8 0.20-100 2.2
SB-500X 500 92 1.8*10-4 120 2.8-3.2 0.20-100 2

Structured Column Metal Tower Packing Advantages

  1. High number of theoretical plates, large flux and low pressure drop;
  2. Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
  3. Large operation elasticity;
  4. No obvious amplification effect;
  5. Fulfilling the requirements of precision, large and high vacuum distillation units, providing favorable conditions for distillation separation system, heat sensitive material and high purity products.

Structured Column Metal Tower Packing Application

Metal structured packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.

Structured Column Metal Tower Packing

Structured Column Metal Tower Packing For Distribution Of Gas - Liquid
