Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Specifications
Brand Name :
YUANHAI
Model Number :
YH-G01
Certification :
ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
50m2
Price :
USD0.6-1.3/Square Meter
Supply Ability :
5000m2 per month
Packaging Details :
According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Material :
Galvanized Iron Wire
Aperture :
60*80,80*100,100*120mm
Wire Gauge :
2-3.5mm
Surface Treatment :
Hot Dip Galvanized
Hole size :
50x50mm, 75x75mm, 50x100mm,100x100mm
Certificate :
ISO9001:2018
Description

Slope Protection PVC Coated Gabion Box Stone Cage Retaining Wall 60 x 80mm


PVC Coated Gabion Box Description

PVC Coated Gabion Box is on the surface of low carbon steel wire or wire wrapped in a LAYER of PVC protection, then woven into a variety of specifications of the stone cage net.PVC coating will greatly increase the service life, and the choice of different colors, so that it can be integrated with the surrounding natural environment.

They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.

PVC Coated Gabion Box Advantages

(1) Construction is simple,

(2) Can withstand a large range of deformation, but still does not collapse.

(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.

(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.

(5) Saving transportation costs.Fold transport and assemble on site.

(6) Good flexibility: no structural joints, the overall structure has ductility.

(7) Corrosion resistance: PVC coating is not afraid of erosion.

PVC Coated Gabion Box Specification

* Material: Low carbon steel wire Q195

* Processing mode: twist, reverse twist, doubled sided twist

* Classification:

I. Electric galvanized hexagonal mesh;

II. Hot dipped galvanized hexagonal mesh;

III. PVC coated hexagonal mesh.

Material
low carbon steel wire, stainless steel wire
Surface Treatment
hot dipped galvanized, electro galvanized, PVC/PE coated or galfan coated.
Wire Diameter
1.5mm - 4mm or as required.
Aperture(mm)
60 × 80, 80 ×100, 80 ×120, 100 ×120, 100 ×150, 120 × 150mm
Gabion size
1x1x0.5m, 1x1x1m, 2x1x1m, 3x1x1m, 0.2x1mx1m, 0.3x1x2m
Tensile Strength
more than 380N per square meter.
Gabion Style
hexagonal gabion box, welded gabion box

PVC Coated Gabion Box Feature

1. Strong and rigid structure

2. Easily installation

3. Beauty apperance for landscope

4. Rust and corrosion resistant,has a long service life

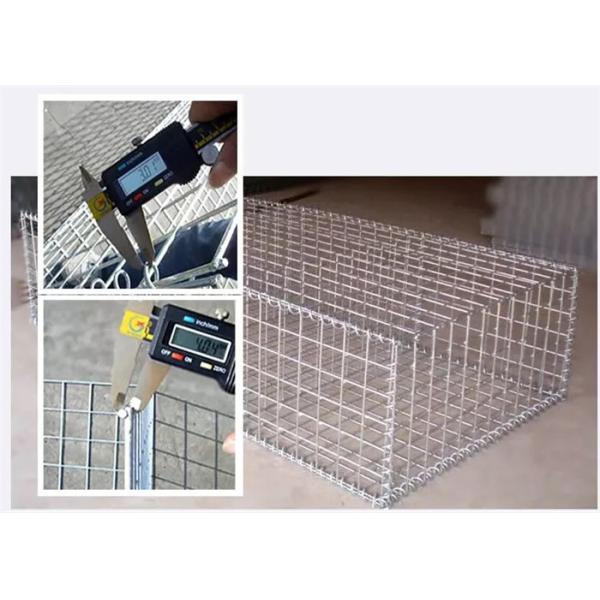

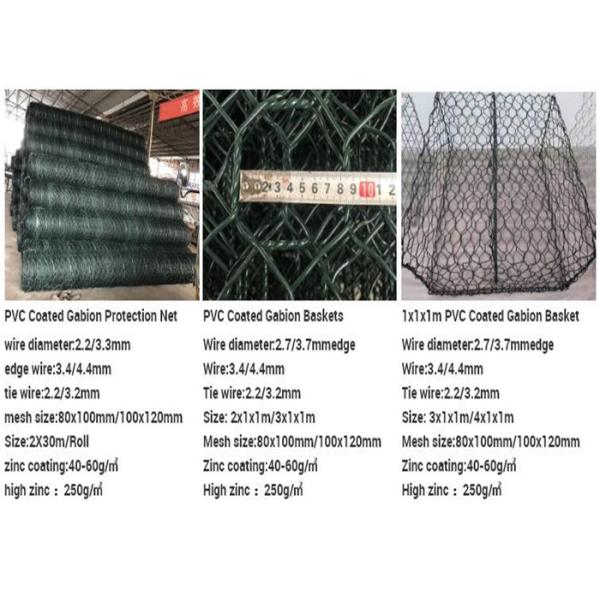

PVC Coated Gabion Box Show

Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh

Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
