Silicon Steel Laminated Sheet Spring Clip | Precision Metal Stamping Clamp | Strong Core Fastening, Anti-Vibration, Easy Assembly for Motor & Transformer

Product Description:

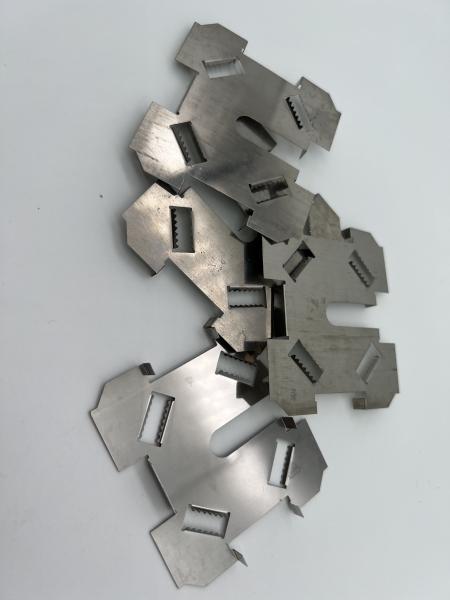

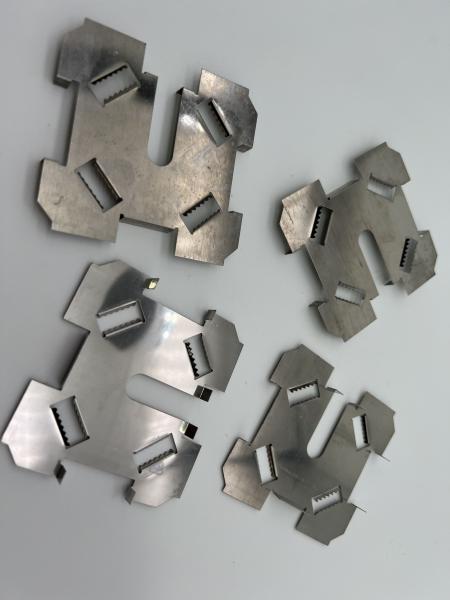

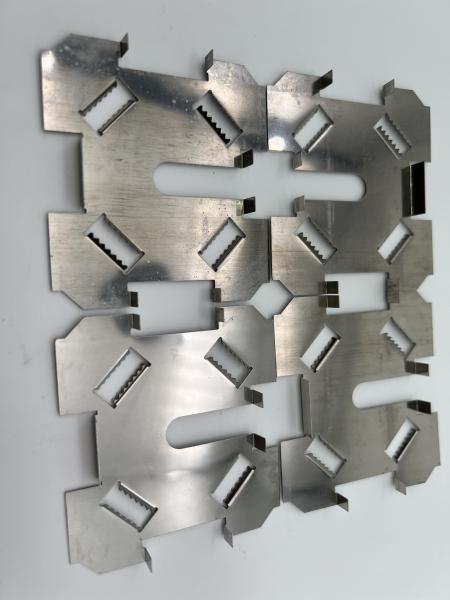

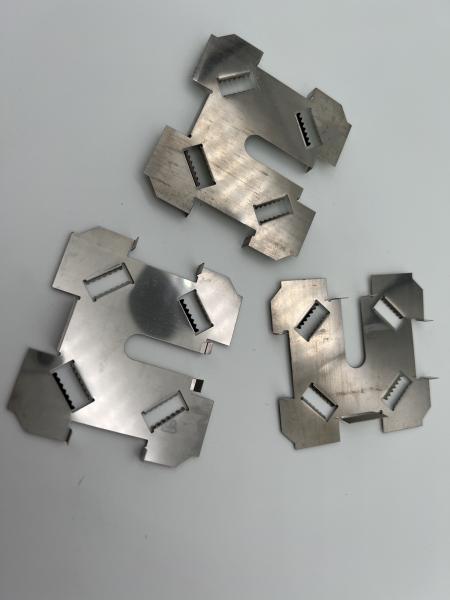

The silicon steel laminated sheet spring clip is engineered to clamp and stabilize electrical core laminations in motors, transformers, inductors, and EV drive systems. Produced on progressive stamping dies, each clip delivers consistent spring preload and bite through serrated locking windows that anchor into the lamination stack without welding or rivets. Precision deburring and edge-rounding minimize burr height and protect coatings, while optional heat treatment maintains elastic performance over long service life.

Built from high-grade silicon steel or stainless steel in 0.20–1.00 mm thicknesses, the clip withstands varnish-baking and typical operating temperatures of rotating machines. Its symmetric “H” geometry equalizes force paths to prevent lamination flutter, reduce magnetostriction-related noise, and keep stack height uniform—improving reliability and efficiency. Surface finishes (bright, anti-rust, zinc plating or custom) provide corrosion resistance for harsh environments.

Dimensions, tooth geometry, and slot patterns are fully customizable to match EI, UI, stator/rotor, or special core layouts, and to suit manual press-fit or automated assembly lines. Tight tolerances and SPC-controlled production ensure repeatability; PPAP/IMDS, RoHS/REACH compliance, and material traceability are available on request. Supplied in trays, bulk, or tape-and-reel packaging, the spring clip shortens assembly time, reduces parts count, and delivers durable, vibration-proof fastening for a wide range of magnetic cores.

Features:

• High Precision Manufacturing – Produced by progressive stamping molds with tight tolerances.

• Durable Material – Made of high-quality silicon steel or stainless steel with excellent mechanical strength.

• Vibration & Noise Reduction – Provides firm clamping to prevent core loosening.

• Customizable Design – Dimensions, thickness, and surface finish can be tailored.

• Easy Assembly – Snap-fit structure enables fast installation without welding or adhesives.

Technical Parameters:

Applications:

• Electric Motors (industrial motors, household appliance motors, EV motors)

• Power Transformers (distribution transformer, dry-type transformer)

• Inductors & Magnetic Components

• EV Drive & Charging Systems

• Generators & Compressors

• Household Appliances (washing machine, refrigerator, air conditioner)

Customization:

Material Options: Silicon steel, stainless steel, carbon steel, or customer-specified alloys.Thickness & Dimensions: 0.2–1.0 mm thickness, tight tolerance ±0.02 mm, fully customizable shapes.Surface Treatments: Polishing, anti-rust coating, zinc plating, or special finishes on request.Tooling & Design: In-house progressive die design and rapid prototyping.

Support and Services:

• OEM & ODM customization: size, thickness, surface finish available.

• Engineering support: drawing review, material selection, sample testing.

• Quality assurance: ISO9001, RoHS/REACH compliance, 100% inspection.

• Fast response & delivery: 24h service reply, flexible shipping options.

Packing and Shipping:

Packing

• Standard export cartons with inner poly bags for rust & scratch protection

• Optional: blister trays, reel & tape, vacuum packing, wooden pallets

• Cartons labeled with product info for easy traceability

Shipping

• By air (DHL, FedEx, UPS), by sea, or by rail (Europe & Asia)

• Lead time: 2–4 weeks based on order quantity

• Trade terms: FOB, CIF, DDP, EXW available

FAQ:

Q1: Are you a manufacturer or trading company?
A1: We are a professional stamping parts manufacturer with in-house mold design and production.

Q2: Can you customize the size and shape?
A2: Yes, OEM/ODM customization is available according to drawings or samples.

Q3: What is the minimum order quantity (MOQ)?
A3: Normally 10,000 pcs, but trial orders are also acceptable for new projects.

Q4: What is the lead time?
A4: 2–4 weeks depending on order quantity and tooling status.

Q5: Do you provide samples for testing?
A5: Yes, samples are available upon request before mass production.
