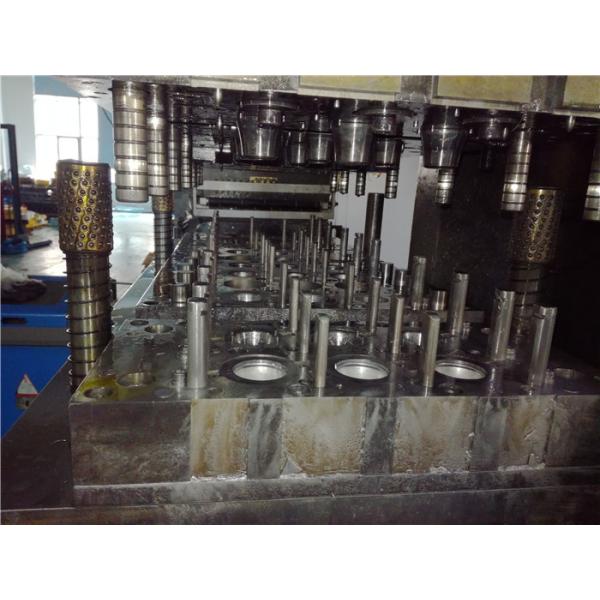

ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
Specifications
Brand Name :
METS
Model Number :
D003
Place of Origin :
XIAMEN.CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
TT,LC
Supply Ability :
25 sets per month
Delivery Time :
7days-35days
Packaging Details :
Wooden case without need of fumigation
Type of die :
Progressive Metal Stamping
tooling material :
ADC10 ADC12 aluminum
Mould life :
5500000 strokes
Tolerance :
±0.01mm
Main tooling material :
DC53,Cr12Mov
Cavity :
two row
Thickness :
1mm
Processing way :
WEDM,Grinding
Shaping mode :
Compression Mould
Surface treatment :
Polishing; Anodize; SandingPowder coating; Vacuum Plating; Nickel
Description

ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case

Progressive Metal Stamping Application

White Goods, Electronics, Camera Support Equipment;
Train Braking Systems, Electrical Lighting, Furniture;
Building Industry, Commercial Solutions, Automotive, ECT


Progressive drawing die As a die forms a shape from a flat sheet of metal, there is a need for the material to move into the shape of the die. The flow of material is controlled through pressure
applied to the blank and lubrication applied to the die or the blank. If the form moves too easily, wrinkles will occur in the part. To correct this, more pressure or less lubrication is applied to the blank to limit the flow of material and cause the material to stretch or thin. If too much pressure is applied, the part will become too thin and break.
Drawing metal is the science of finding the correct balance between wrinkles and breaking to achieve a successful part.

General Draw Radius Guideline

Metal Thickness Minimum Radius Maximum Radius
.015 to .020 .156 .250
.021 to .030 .187 .281
.031 to .040 .187 .312
.041 to .050 .187 .343
.051 to .062 .250 .375
.063 to .093 .312 .437
.094 to .125 .344 .468


As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.

Tool&Die​ Profile

Part thickness 0.5-2mm
Spare parts for Dies and insets Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on
Die type Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.
Die material YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die use Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)
Part material Cold rolled steel,stainless steel,copper,aluminum
Machinery Equipment Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,
Die precision High precision machining, minimum 0.003mm
Trial out press 25~180T
First trial sample 10 sets free



Stamping die details:

ADC10 ADC12 Progressive Metal Stamping Light Bulb Cups Case
