Specifications
Brand Name :
METS
Model Number :
D001
Place of Origin :
XIAMEN.CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
TT,LC
Supply Ability :
25 sets per month
Delivery Time :
7days-35days
Packaging Details :
Wooden case without need of fumigation
Type of die :
Cr12Mov Deep Drawing Die
Product :
Vehicle Mould
Main tooling material :
DC53,Cr12Mov
Processing way :
WEDM,grinding
Mould life :
250000-300000shots
Usage :
Drawing metals
Name :
Automotive stamping die car components tooling molds
Description

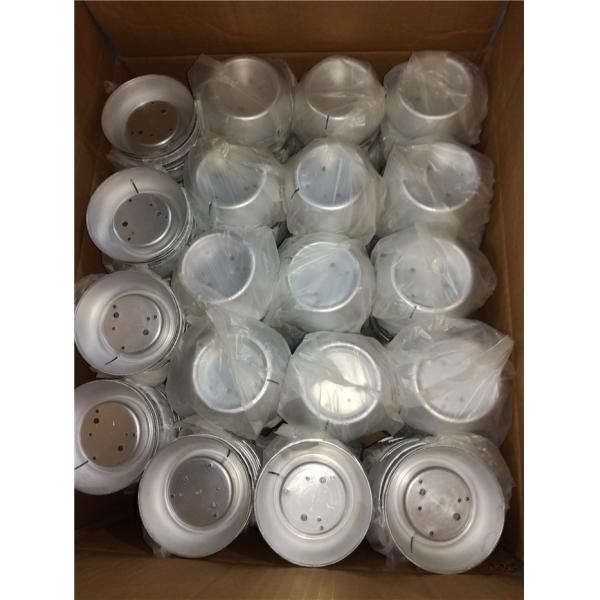

DC53 Cr12Mov Deep Drawing Die Led Cup Holder Lights Housing

Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.

General Draw Radius Guideline

Metal Thickness Minimum Radius Maximum Radius
.015 to .020 .156 .250
.021 to .030 .187 .281
.031 to .040 .187 .312
.041 to .050 .187 .343
.051 to .062 .250 .375
.063 to .093 .312 .437
.094 to .125 .344 .468


As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.

Tool&Die​ Profile

Part thickness 0.5-2mm
Spare parts for Dies and insets Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on
Die type Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.
Die material YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die use Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)
Part material Cold rolled steel,stainless steel,copper,aluminum
Machinery Equipment Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,
Die precision High precision machining, minimum 0.003mm
Trial out press 25~180T
First trial sample 10 sets free


DC53 Cr12Mov Deep Drawing Die Led Cup Holder Lights Housing
