High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh
High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh
High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh
High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh
Specifications
Brand Name :
CHANT
Model Number :
CHANT-C 1005
Certification :
CE ISO9000
Place of Origin :
CHINA
MOQ :
5m2
Price :
USD 5-15/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m2/week
Delivery Time :
10 days
Packaging Details :
wooden case
Mesh Material :
ss304 316
Wire Diameter :
1.2 -6.0mm
Aperture Size :
25mm-300mm
Corrosion Resistance :
Excellent
Installation :
Easy
Product Name :
High Strength Flexibile Fatigue Resistance Breaking Force Metal Rope Mesh
Application :
Protective, Fall Prevention
Description

High Strength Flexibile Fatigue Resistance Breaking Force Metal Rope Mesh


Stainless Steel Cable Mesh, also called Flexible Stainless Steel Cable Mesh, Stainless Steel Rope Mesh, Stainless Steel Wire Rope Mesh, it is produced of high quality stainless steel wire cable. It can be divided into ferrule type and inter-woven type by production crafts.

Due to the different styles of these two rope mesh products, we also refer to the ferrule type rope mesh as stainless steel ferrule mesh, X-TEND Mesh. The inter-woven type wire rope mesh is a pure hand-woven net, which is also called as interwoven stainless steel cable mesh, hand-woven wire rope mesh, or knotted stainless steel cable mesh.

Specification

Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: silver or black oxide finish.
Construction of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 20-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity.
Ordering: specific to order, according to the project. The following specifications are that customers ordered frequently.

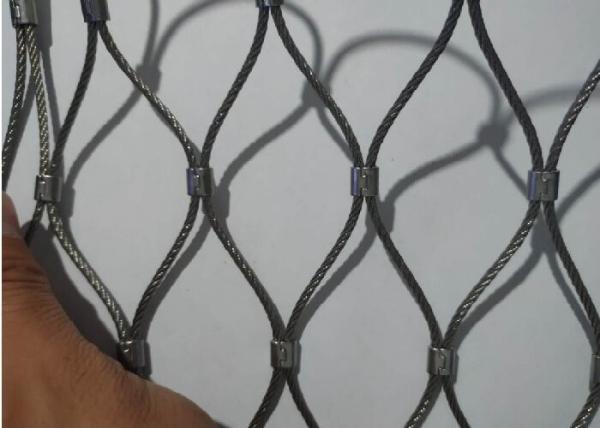

High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule MeshRope Diamond Ferruled Mesh Optimum tension is achieved when 60° angle is formed between the two equilateral triangles. Once installed, the mesh structure is very stable because the tension is distributed evenly over the entire mesh.

specification

High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh

High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh

Installation details:

High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh


Advantage:

1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.


Applications

High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh

High Strength Flexible Rope Mesh Fatigue Resistance Stainless Steel Ferrule Mesh
