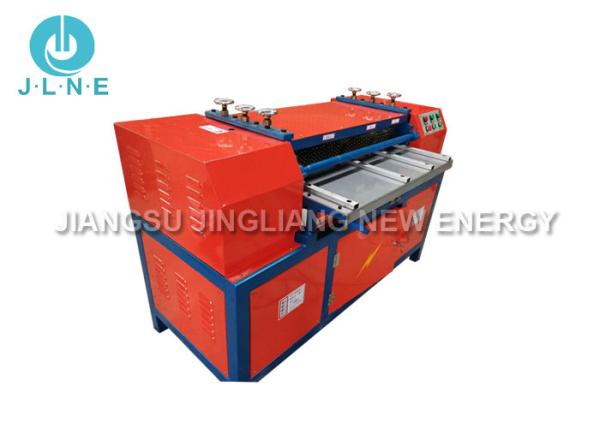

Automatic Operating Air Conditioner Radiator Copper Separator Machine

Radiator recycling machine is separated air conditioning radiator , before feeding please cut the radiator fin in order (Width: 30-40cm), and feeding them smoothly and it was widely used,high efficiency,and no pollution.

Specifications of radiator separating machine:

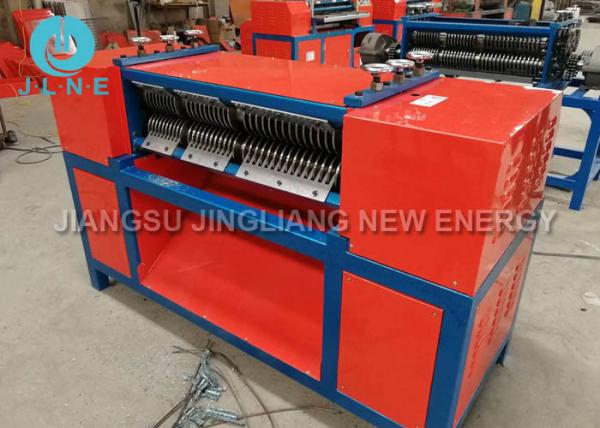

Main structure of radiator separating machine:
1. Compressing part: It is radiator compressing system, the gear compressor is used for removing aluminum part on the radiator.
2. Radiator input plate: Normally there are 3 parts for radiator input, and they have different width for different size radiators. Customer need to put proper size(center distance) radiator on it.
3. Handle: There are totally 6 handles on the machine to adjust blades inside it.
4. Motor: There are two motors on both sides of the machine.

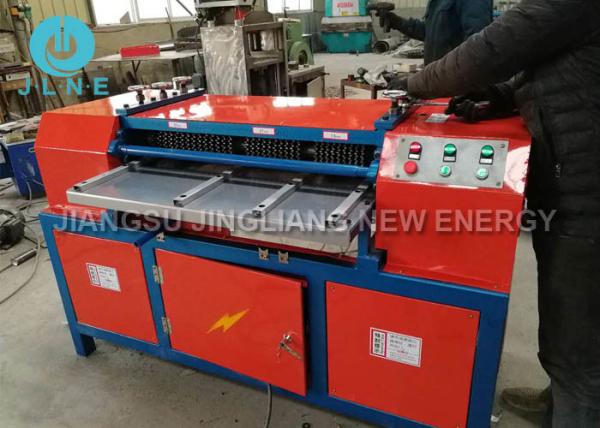

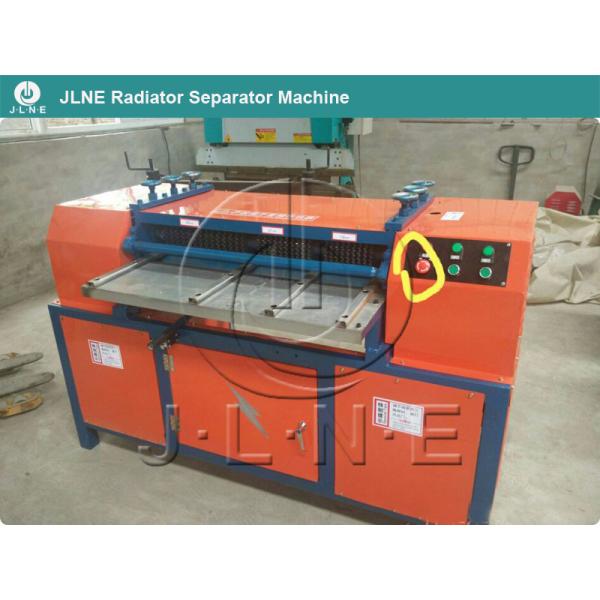

5. Control panel: There are Start,End and Emergency buttons on the panel.
6. Blades: Blades used for cutting radiators.

Working principle of scrap radiator separating machine:
1. After starting motor, the v- belt drives the compression roller, pinch roller, and blade to rotate through the reduction box.
2. The raw material is compact and sent to the fly-cutter blade by pinch roller.
3. Then, the radiator is cut up by the fly-cutter blade, the copper pipe is separated, and the
aluminum scattered network is cut up.
4. The machine limited to single,double radiator copper and aluminum are separated layers
separating copper and aluminum radiators work completed by the entire unit

FAQ:

Q:What’s the spare parts of the separator?
A: Spare parts of the separator are blades and belt, we will supply extra parts according to customers’ requirement.

Q:What’s the warranty time for the equipment?
A: 12 months. During the warranty period, if there is any problem due to quality,we will supply spare parts for free, and customers take charge of delivery cost.

Q:What’s ordinary delivery time of the separating machine?
A: Within 12 working days.
