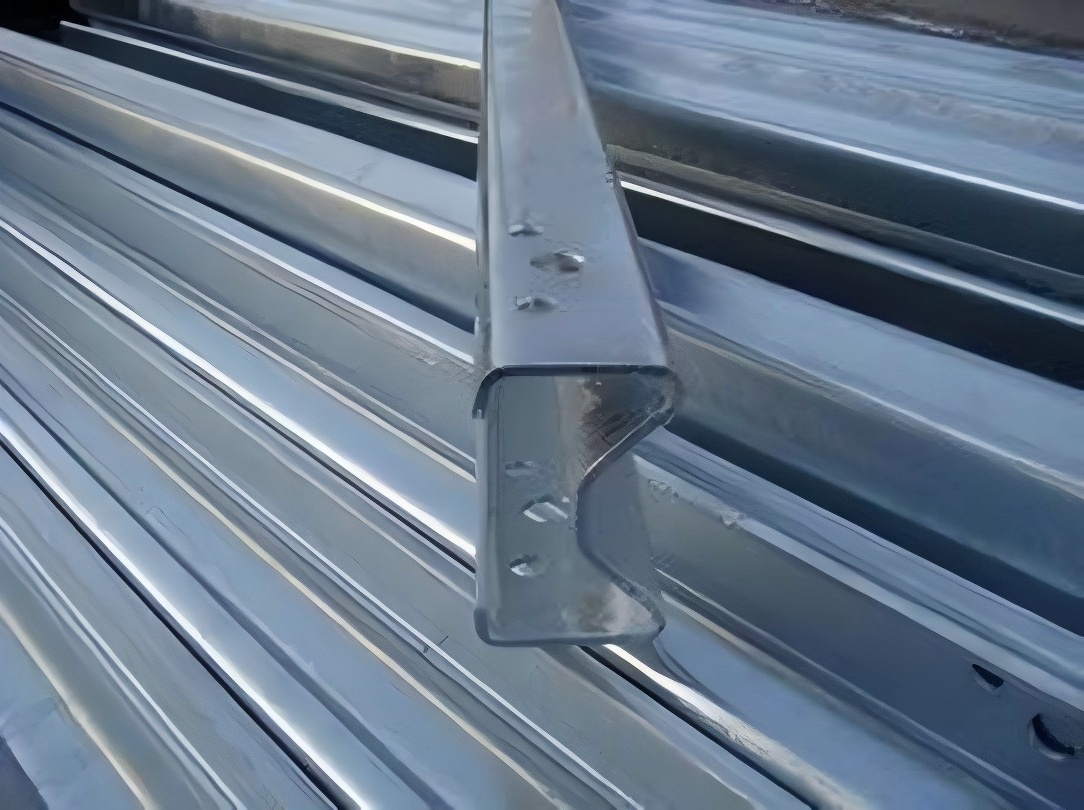

Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Light Weight Cold Formed Steel Section High Precision Uncoated Cold Rolled Steel Profiles
Specifications
Model Number :
Custom Cold Formed Steel
MOQ :
1 Ton
Material :
Steel Strip
Surface :
Galvanized / Painted / Black
Packaging Details :
Standard seaworthy packing
Feature :
High Strength, Light Weight
Application :
Construction, Shelf, Guardrail
Brand Name :
Kejulixin
Place of Origin :
China
Precision :
±0.5mm
Supply Ability :
1000 tons per day
Process :
Cold Roll Forming
Certification :
ISO
Payment Terms :
L/C,T/T
Type :
C/Z/U Channel, Square Tube
Delivery Time :
7–15 working days
Product Name :
Cold Formed Steel Profile
Price :
Negotiable
Description
Cold Rolled Formed Steel Profile C/Z/U Channel Steel Square Rectangular Tube High Precision Customized
Quick Detail
  • Material: Hot rolled / cold rolled steel strip
  • Process: Cold roll forming, bending, stamping (room temperature)
  • Types: C/Z/U steel, square/rectangular tube, special profiles
  • High precision, high strength, light weight
  • Good surface, customizable shape
  • Wide application: construction, logistics, transportation, infrastructure
Description

Cold formed steel profiles are made from hot rolled or cold rolled steel strips by cold roll forming, bending or stamping at room temperature without heating. The production process includes uncoiling, leveling, cold forming, fixed length cutting and surface treatment.

Compared with hot rolled steel, cold formed steel has higher material utilization (saving 15%–50% steel), lighter weight, higher strength due to work hardening, and more flexible section design. It features high dimensional accuracy up to ±0.5mm, smooth surface, good adhesion for painting and galvanizing, and short production lead time.

Specifications
Item Specification
Product Name Cold Rolled Formed Steel Profile
Raw Material Hot rolled / cold rolled steel strip
Process Cold roll forming, bending, stamping (room temperature)
Main Types C channel, Z channel, U channel, square tube, rectangular tube, special shaped profiles
Dimensional Accuracy ±0.5mm
Surface Treatment Uncoated, galvanized, painted
Advantage High utilization, light weight, high strength, customizable, high precision
Applications
  • Construction: Purlin, keel, floor deck, light steel structure
  • Transportation: Truck body, container frame, automobile chassis
  • Logistics: Shelf column, beam, support
  • Infrastructure: Highway guardrail post, pipe gallery support
Notices
  1. Customizable size, shape and length according to drawings.
  2. Store in dry and ventilated environment to avoid corrosion.
  3. Standard packaging for transportation.
