High Toughness Zinc Coating U Channel Guardrail Post Anti Rust
High Toughness Zinc Coating U Channel Guardrail Post Anti Rust
Specifications
Certification :
ISO 45001，ISO14001，ISO 9001
Thickness :
4.0 mm
Price :
Negotiable
Surface Treatment :
Hot Dip Galvanized
Application :
Road safety barrier
Supply Ability :
30tons per day
Durability :
10+ years under normal conditions
Temperature Range :
-40°C to 60°C
Place of Origin :
China
Material :
Q235,Q355
MOQ :
Negotiable
Dimensions :
Customized
Brand Name :
Kejulixin
Product Name :
Guardrail Post
Description

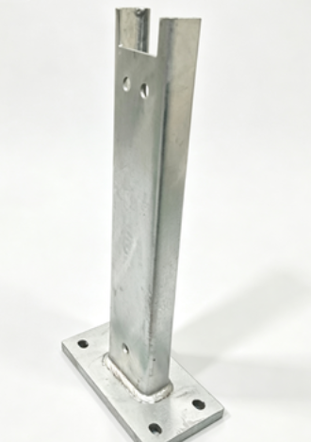

60-120μm Zinc Coating U Channel Guardrail Post With Base Plate

1. Product Overview

U-post is a core supporting component specially designed for W-beam guardrails.Made of national standard Q235/Q355 carbon steel, it is integrally roll-formed with stable structure and excellent bending resistance. Adopting overall hot-dip galvanizing anti-corrosion treatment, the post features uniform coating, strong durability and long service life. It perfectly matches two-wave and three-wave guardrails, as well as custom curved twisted guardrails. All sizes and specifications are customizable to meet diverse road safety engineering requirements.

2. Core Parameters

Item Description
Product Name U-Post for W-Beam Guardrail System
Material Q235/Q355 Carbon Structural Steel
Material Performance High toughness, strong bearing capacity, excellent bending resistance
Manufacturing Technology Integral Roll Forming Process
Structure Type U-Shaped Steel Post with Precise Dimensions
Surface Treatment Hot-Dip Galvanized Finish
Corrosion Protection Anti-rust, anti-aging, suitable for long-term outdoor use
Specifications Multiple thickness and height options available
Customization Fully customizable according to project requirements
Compatibility Suitable for 2-Wave, 3-Wave, and Curved/Twisted Guardrail Systems
Application Highway Guardrails, Road Safety Barriers, Bridge Protection Systems

3. Application Scope

Widely used in highways, national highways, municipal roads, rural roads, mountain roads, factory and parking lot road safety projects. Ideal for straight road sections, curved sections, ramps and bridge transition sections.

4. Product Advantages

1. Stable U-shaped structure: Uniform force bearing and excellent impact resistance, effectively improving overall guardrail stability.
2. Superior anti-corrosion performance: Hot-dip galvanized layer resists outdoor erosion, greatly reducing maintenance costs.
3. Strong universality: Perfectly compatible with standard and custom guardrails and supporting accessories.
4. High-quality integral forming: Precise size, smooth surface and stable structural performance.
5. Customizable specification: Custom size and hole position to fit non-standard engineering projects.

FAQ:

· Q1: Can posts match 2-wave and 3-wave guardrails?

· A: Yes, we customize sizes to fit both two-wave and three-wave highway guardrail boards.

· Q2: What is the zinc coating thickness of HDG terminals?

· A: The zinc layer ranges from 60μm to 120μm and can be adjusted according to customer requirements.

· Q3: Are your products certified for export projects?

· A: Our factory holds ISO9001, ISO14001, ISO45001 three management system certifications, test reports can be provided.

· Q4: What countries have your guardrail posts been exported to?

· A: Our HDG road safety products are shipped to Norway, Sweden, Australia, Singapore, Japan and many other countries.
