Customizable Sizes Roof Solar Bracket Q235 Q355 Solar C Purlin

Specifications

Price :

Negotiable

Certification :

CE,ISO1461

Material :

Q235/Q355

Dimensions :

Customizable Sizes

Warranty :

1 years

MOQ :

Negotiable

Brand Name :

Kejulixin

Adjustability :

Tilt angle adjustable

Packaging Details :

Negotiable

Place of Origin :

China

Compatibility :

Universal for most solar panels

Finish :

Hot-dip galvanized

Description

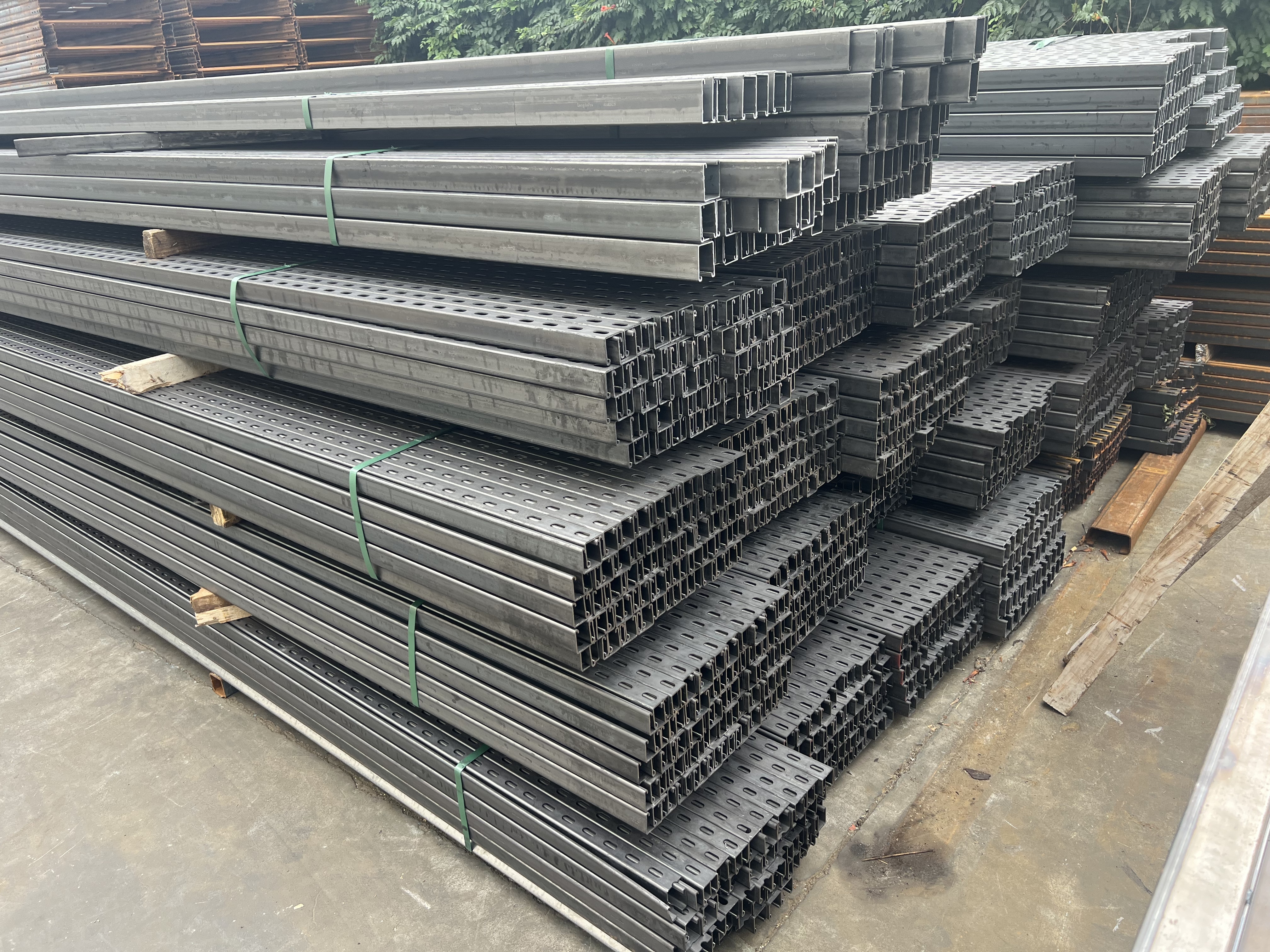

Solar C Purlin

Base Material & Forming Process

Solar C purlin is manufactured from Q235B and Q355B carbon structural steel via automatic cold roll forming. Dimensional tolerance of bent cross-section is controlled within ±0.5mm with burr-free edges. All profiles undergo full hot-dip galvanization with zinc coating thickness ≥85μm, forming metallurgical bonding between zinc and steel without peeling or bare spots, fit for long-term outdoor exposure, coastal salt fog and humid agricultural environments.

Available wall thickness ranges from 1.2mm to 3.0mm, web height 70–300mm, flange width 50–200mm, maximum customized length up to 6 meters. Pre-punched standard slotted holes eliminate on-site cutting and drilling work.

Main Application Scenarios

As secondary load-bearing components for solar mounting systems, solar C purlins are widely used in utility-scale ground PV farms, rooftop distributed PV and agrivoltaic projects. They serve as main beams, cross rails, diagonal braces and base frames to evenly distribute static weight, wind and snow loads of solar panels.

Structural & Functional Advantages (Supported by Technical Parameters)

Lightweight high-strength profile: C-shaped curled edge design improves torsional and bending capacity, lighter than standard channel steel under identical load requirements to reduce foundation burden. Q355 grade steel delivers yield strength of 355MPa, resistant to wind load up to 60m/s.
Modular fast assembly: Uniform pre-drilled holes allow direct bolt connection with matching HDG fasteners without field welding, ensuring consistent installation accuracy. The inner C groove can accommodate PV cables to save wiring accessories.
Stable long-term anti-corrosion performance: Integrated hot-dip galvanized layer blocks moisture and salt erosion, with controllable corrosion rate to meet the 25-year low-maintenance service life standard of photovoltaic projects.

Matching Assembly Accessories

Complete supporting kits including C purlin connectors, hot-dip galvanized bolts, base supports and panel clamps are available. Uniform galvanizing treatment for all components prevents galvanic corrosion between dissimilar metals.
