Automatic machine for grinding flat parts Grinding satin deburring
Automatic machine for grinding flat parts Grinding satin deburring
Automatic machine for grinding flat parts Grinding satin deburring
Automatic machine for grinding flat parts Grinding satin deburring
Automatic machine for grinding flat parts Grinding satin deburring
Automatic machine for grinding flat parts Grinding satin deburring
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
JINZHU
Price :
Negotiable
MOQ :
1 set
After-sales Service Provided :
Engineers available to service machinery overseas
name :
Led Light Cover Manufacturing Machine
main motor :
5.5kw
height of the spindle center :
10-15
axial stroke :
10-15
radial stroke :
10-15
the tail against stroke :
1-100mm
accuracy :
0.01mm
input :
touch screen
voltage :
AC 380V 3Phase
after service :
one year warranty
Description

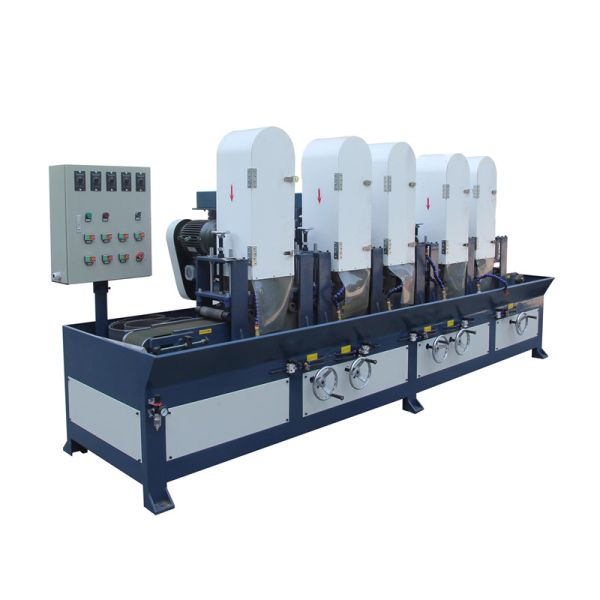

Item: Automatic machine for grinding flat parts Grinding satin deburring

Automatic machine for grinding flat parts Grinding satin deburring

1. Detailed Information

It is suitable for plane polishing and wire drawing of metal trim strip, lock panel, switch panel and other
hardware and plastic products. The machine has two grinding heads, three grinding heads, five grinding
heads, circulating conveying type and other models. Customers can order according to the processing
needs.

1. Power supply voltage 380V-50hz

2. Main power 4kw

3. Total power 21.82kw

4. Spindle speed 1800r/min

5. Water pump 0.15kw

6. Consumable specifications Abrasive belt 150X2100mm

7. Consumable specifications Polishing wheel Φ 250*700mm

8. Air pressure 0.55mpa

9. Processing range Width 10-150mm Thickness 1-100mm

10. Conveying speed 0-8m adjustable

11. Machine dimensions 4.1x1.2x1.9m l * w * h

Automatic machine for grinding flat parts Grinding satin deburringAutomatic machine for grinding flat parts Grinding satin deburringAutomatic machine for grinding flat parts Grinding satin deburring
