Specifications
Brand Name :
QTX ,Changjiang
Certification :
CO .SGS
Place of Origin :
China
MOQ :
1ton
Price :
negotiation
Supply Ability :
T/T, D/P, L/C
Delivery Time :
5000ton/month
Packaging Details :
Standard Seaworthy Packing or as request
Standards :
ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Temper :
T6 T651 T6511
Standard :
AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size :
8 (1-1/2″ / 1.900″)
Outer Diameter :
1″ through 16″
Length :
Double Random, Single Random, Cut Length
Thickness :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End :
Plain End, Beveled End, Threaded
Description

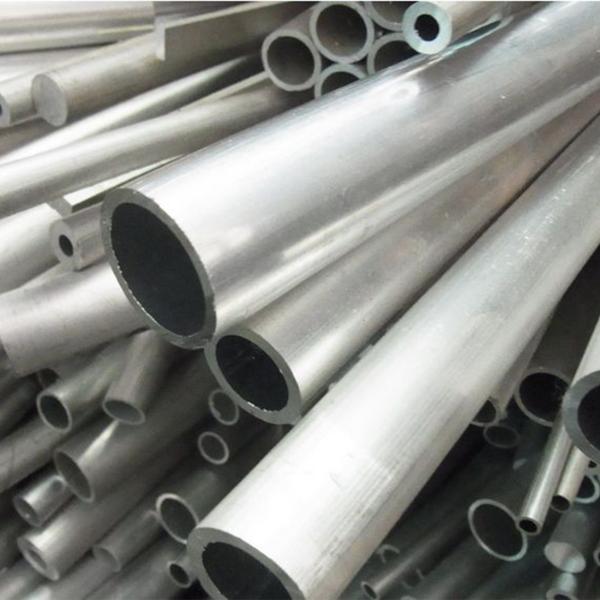

7075 T6 Aliminum Pipe Tube anodized aluminum pipe

Aluminum tube is a kind of nonferrous metal tube, which refers to the metal tubular material extruded from pure aluminum or aluminum alloy to be hollow along its longitudinal full length.

According to the shape, it can be divided into square pipe, round pipe, riffled pipe, profiled pipe and universal aluminum pipe.

It can be divided into seamless aluminum tube and ordinary extruded tube according to extrusion mode

The alloy aluminum tube profile is mainly produced by the extrusion method, the most commonly used extrusion processes are forward extrusion and reverse extrusion. Extruded alloy aluminum pipes and profiles adopt the production process of ingot heating-extrusion-finishing; for heat-treated aluminum alloys that can be strengthened, quenching and aging treatment are also required.

Aluminium 7075 Pipes Chemical Composition

Weight % Si Fe Cu Mn Mg Cr Zn Ti Each Total
Minimum 1.2 2.1 0.18 5.1
Maximum 0.4 0.5 2 0.3 2.9 0.28 6.1 0.2 0.05 0.15

Mechanical Properties of Aluminum 7075 Pipes

Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
T6, T651 83 572 73 503 11 150
T73, T7351 73 503 63 434 13 N/A

Dimensions and Alloy Options of Aluminum Pipe/Aluminum Tube

Aluminum Grade Normal Temper Tensile Strength Yield Strength Elongation% Brinell Hardness
Alloy Temper N/mm² N/mm² Plate Bar HB
1XXX 1050 O,H112,H O 78 34 40 20
1060 O,H112,H O 70 30 43 19
Al-Cu 2019 O,T3,T4,T6,T8 T851 450 350 10
(2XXX) 2024 O,T4 T4 470 325 20 17 120
Al-Mn 3003 O,H112,H O 110 40 30 37 28
(3XXX) 3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 9 120
Al-Mg 5052 O,H112,H H34 260 215 10 12 68
(5XXX) 5083 O,H112,H O 290 145 20
Al-Mg-Si 6061 O,T4,T6,T8 T6 310 275 12 15 95
(6XXX) 6063 O,T1,T5,T6,T8 T5 185 145 12 60
Al-Zn-Mg 7003 T5 T5 315 255 15 85
(7XXX) 7075 O,T6 T6 570 505 11 9 150

Aluminum Pipe/Aluminum Tube Packaging

Product introduction


2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

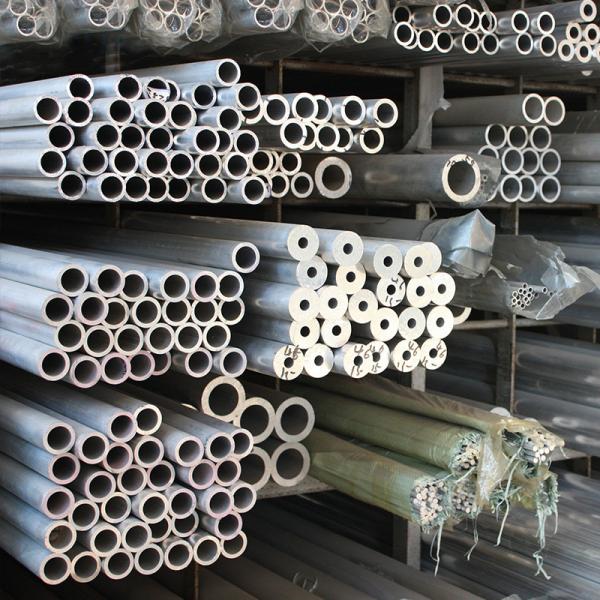

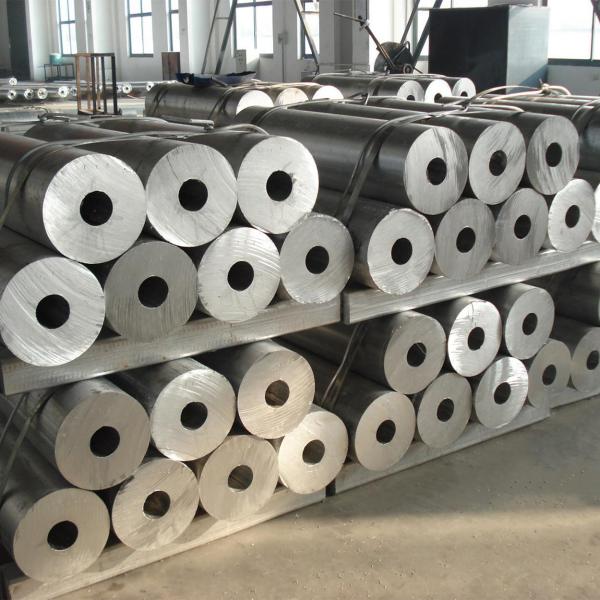

Our factory and Inventory


2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

Packaging and Transportation


2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

Certificate


2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

Application scenarios


2000MM Anodized 7075 Aluminum Pipe T6511 Aluminum Round Tubing

FAQ

1. Q: Are you a manufacturer?

A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.

2. Q: Can we visit your factory?

A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3. Q: Do you have quality control system?

A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available

4. Q: Can you arrange the shipment for us?

A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.

5. Q: How long is your delivery time?

A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.

6. Q: Can I get some samples?

A: We are glad to provide free samples to you, but we do not offer the freight.

7. Q: What is your after-sale service?

A: We provide after-sale service and offer 100% guarantee on our products.

Why Choose LIANLONG ALUMINUM?

As a global leading aluminum pipe/aluminum tube supplier, LIANLONG ALUMINUM has 35000m2 factory area with 4 large production lines and 6 processing centers, and has continuously invested in acquiring new technologies and upgrading existing facilities to the latest technological standards.

LIANLONG With 15 years production experience, we always provide high value-added aluminum products to meet the challenging demands of its clients and step into new markets.
