4.0mm Wire Welded Wire Mesh Fence Powders Sprayed Coating Dark Green 2.4m Width
4.0mm Wire Welded Wire Mesh Fence Powders Sprayed Coating Dark Green 2.4m Width
4.0mm Wire Welded Wire Mesh Fence Powders Sprayed Coating Dark Green 2.4m Width
4.0mm Wire Welded Wire Mesh Fence Powders Sprayed Coating Dark Green 2.4m Width
Specifications
Brand Name :
XINLONG
Model Number :
XJF-01
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1000
Price :
negotiate
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 per week
Delivery Time :
6-7 work days
Packaging Details :
Wooden pallet covered by plastic film.(or according to your request.)
Surface treatment :
Galvanized,PVC/PE Coated,ect.
Color :
Green,Red,Yellow,White,Blue,ect.
Service Life :
20~30 years
Sample :
free
Advantage :
High quality with good prices
Packing :
Pallet
Standard specification :
according to your request.
Usage :
Road,Transit,Private grounds,Public grounds,Commercial grounds,ect.
Description

4.0mm Wire Welded Wire Mesh Fence Powders Sprayed Coating Dark Green 2.4m Width

Product details:

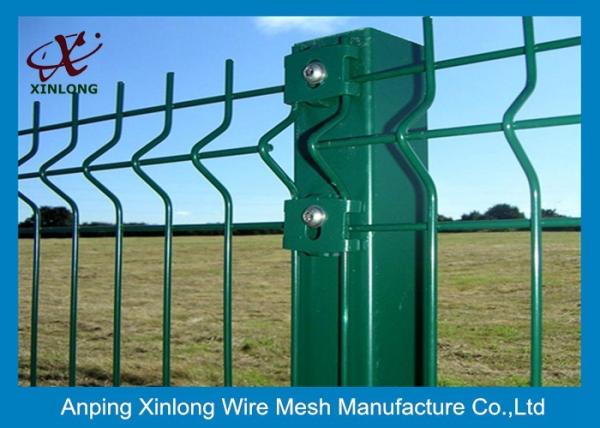

Also known as 3D bending fence, which has a grid structure, beautify and durable vision, color and diverse, high strength, steel is good, beautify shape characteristics. Both it has security fence, and has beautify the role .Unique embedded hook design, fence post and form a solid fence overall. The product design won the French industrial design award and obtained a patent.

Wire Dia. Mesh Size Panel Width Panel Height Fold No. Post’s height
FixⅠ FixⅡ Fix Ⅲ

4.0mm

4.5mm

5.0mm

5.5mm

6.0mm

200*50mm

200*55mm

200*60mm

200*65mm

2.0m

2.255m

2.5m

3.0m

 0.635m 2 0.9 0.7 1.0
0.835m 2 1.2 0.9 1.2
1.035m 2 1.4 1.1 1.4
1.235m 2 1.6 1.3 1.6
1.435m 2 1.8 1.5 -----
1.535m 3 1.9 1.6 -----
1.635m 3 2.0 1.7 -----
1.735m 3 2..2 1.8 -----
1.835m 3 2.3 1.9 -----
1.935m 3 2.4 2.0 -----
2.035m 4 2.5 2.1 -----
2.235m 4 2.8 2.3 -----
2.435m 4 3.0 2.5 ------

Note:1.Fix Ⅰ:Buried in the ground.

2.Fix Ⅱ: Installed with bottom base or feet.

Design Advantage:

  • Vandal resistant, Low maintenance
  • Strong and reliable security
  • Simple structure, Attractive appearance
  • Easy installation, Convenient transport
High Anti-Corrosion:

Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.

Surface Treatment Min. Max.
Electric Gal. 20g/m2 60g/m2
Hot dipped Gal. 35g/m2 700g/m2
Powders Sprayed coating 100microns 120microns
PVC/PE dipped coating 400microns 600microns

Range Of Application:

  • Private properties and recreational sites；
  • Sports facilities, pitches, tennis courts, playgrounds；
  • Warehouses, logistics bases - military facilities and sites；
  • Housing estates and parking lots；
  • Industrial and commercial buildings；Public places.

Choice Of Colors:

Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available

4.0mm Wire Welded Wire Mesh Fence Powders Sprayed Coating Dark Green 2.4m Width
