Hole Size 150*150mm Rebar 4-10mm Highway Bridge Rebar Wire Mesh Welding Machine

Introduction of Rebar Wire Mesh Welding Machine

Pneumatic rebar wire mesh welding machine adopts European technology ,which is usd to make construction mesh ,building mesh , bridge construction ,steel rebar mesh , fast speed and high efficiency.It is suitable for 4-10mm,5-12mm model .Final mesh can be panel sheet.

The pneumatic rebar wire mesh welding machine is the same type as the European machine, but with competitive prices. The production line adopts a multi-force air cylinder to control the welding, the welding speed can be up to 80 times/min.

The rebar wire mesh welding machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.

Features of Rebar Wire Mesh Welding Machine

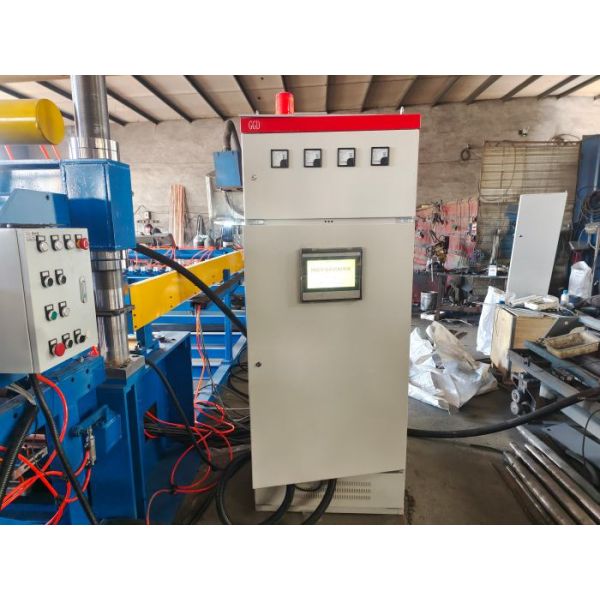

1. Control system adopt PLC control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

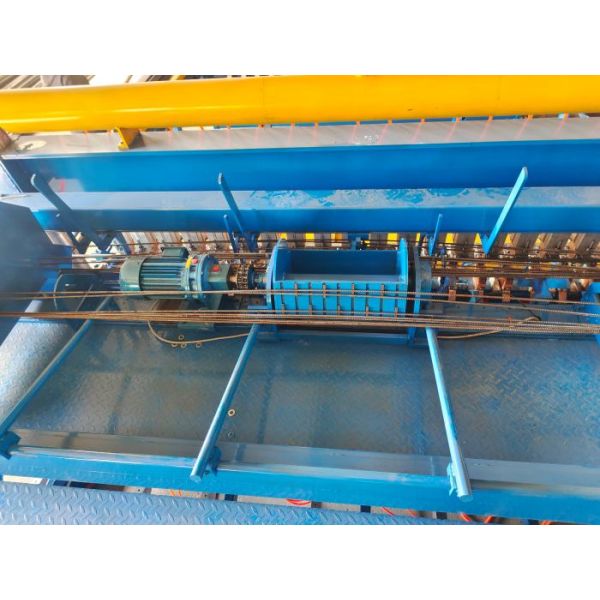

2. Cross wire hopper: the stepper motor drives the disk-type device to drop wires automatically, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no cross wire in the hopper, the equipment will stop running automatically.

3. Sending longitudinal wire feeding mechanism: servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send wire to the welding position. The equipment is automatically welding.

4. Mesh pulling mechanism: servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

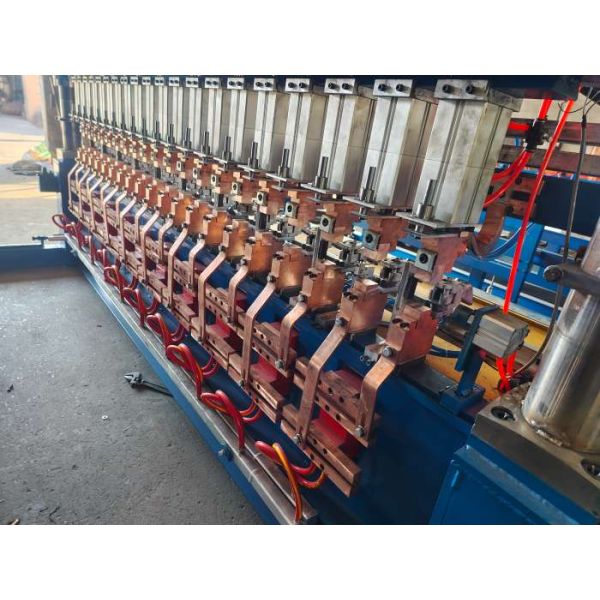

5. Water-cooled welding electrodes and a new type of special water-cooling transformer welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. Low-voltage electrical appliances use famous brand to ensure the efficient and stable operation of the equipment.

7. The machine will stop working automatically if there is no cross wires in hopper device.

8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

10.The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.

Advantages of Rebar Wire Mesh Welding Machine

1. Famous pneumatic cylinder brand:SMC brand High precision and fast speed.

2. Single action-cylinder ,cascade welding,make the mesh firm and flat ,total power consumption saves 50%

3. Water cooling system for welding electrodes ,extend the service life
4. Cross wire with materials adding device ,it can be load max 1 ton .save labour and save time .
5. Famous mitsubish japan servo motor with precision planetary reducer.
6. Welded electrodes materials:Chrome,zirconium,copper,longer service life,it is higher Triple /four.

Technical Parameters of Rebar Wire Mesh Welding Machine

Applications of Rebar mesh

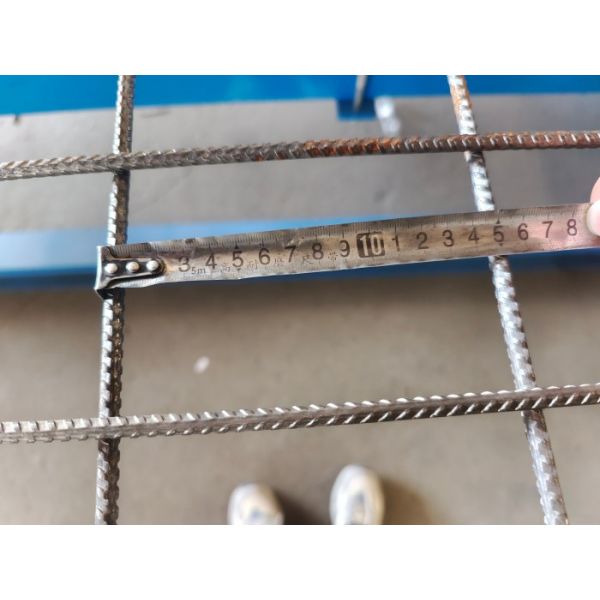

In the construction of highway cement concrete pavement, and In the bridge engineering: It is mainly applied to the bridge deck paving of municipal and highway bridges, the renovation of old bridge decks, and the crack prevention of bridge piers.

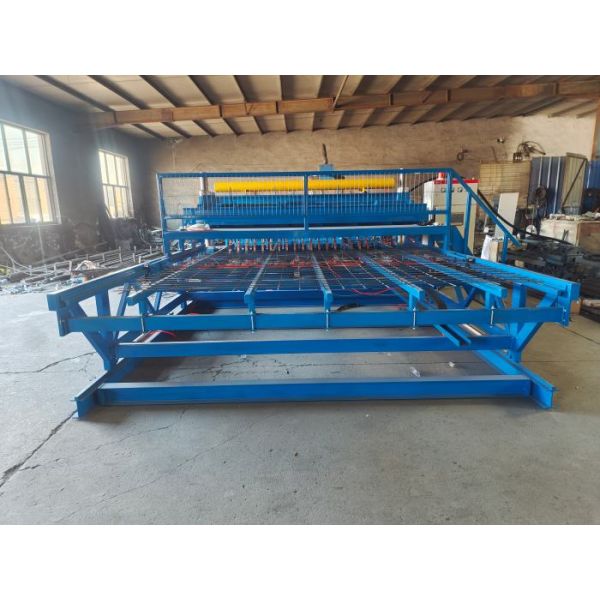

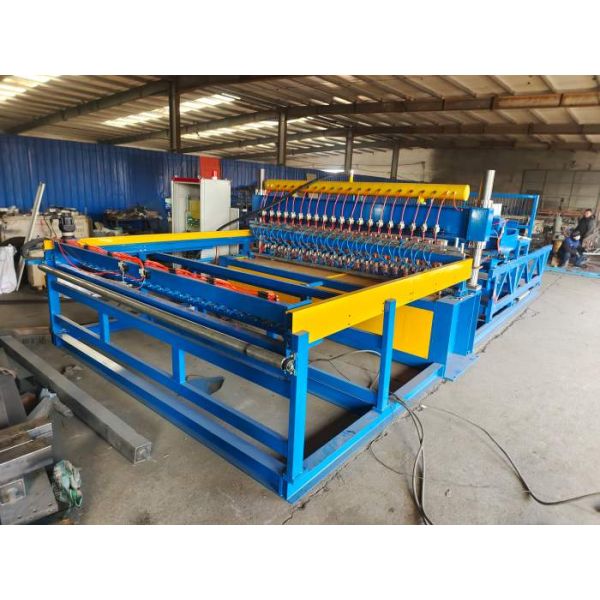

Photos of Rebar Wire Mesh Welding Machine
