Mesh Panel Length 12m Rebar Size 5-12mm CE Reinforcing Mesh Welding Machine

Reinforcing Mesh Welding Machine Introduction

The reinforcing mesh welding machine employs CNC synchronous control technology, with both the overall welding time and individual welding cycles controlled by a PLC digital programming system. The input interface is available as either a touch screen or keyboard, enabling more intelligent and rational operation. The rebar mesh welding machine uses a single clamping step combined with multiple welding stages, offering the key advantage of producing over 30 different mesh sizes between warp and weft on the same sheet. The welding process utilizes a new high-efficiency water-cooled welding transformer, significantly expanding the range of applicable wire diameters.

Reinforcing Mesh Welding Machine Features

1. Each welding transformer group of this welding mesh machine is independently controlled by a microcomputer, enabling single pressurization with multiple welds. The greatest advantage of this control system is the ability to produce over 30 different hole sizes between adjacent warp wires on the same mesh panel.
2. The welding electrode heads of this wire mesh machine are made of high-quality chromium-copper alloy material, ensuring a long service life and reducing production costs.
3. The wire mesh machine features a feeding method where the transverse wires are manually threaded, with automatic wire feeding function. This ensures precise positioning and reduces welding waiting time.
4. The welding mesh machine uses an automatic feeding method for the weft wire: the weft wire is automatically fed from a hopper, ensuring precise positioning.
5. The welding mesh machine uses a reciprocating web-pulling method driven by servo motors, with pneumatic clamping of the weft wires to ensure precise positioning during web pulling.
6. The reinforcing mesh welding machine features an automatic mesh sheet conveying system, enabling fully automatic stacking of mesh sheets. The sheets are neatly arranged and easy to transport, reducing labor and material costs.

Reinforcing Mesh Welding Machine Advantages

1. Efficient and Fast: Automated welding improves production efficiency and reduces labor costs.
2. Stable Welding Quality: Strong welds and uniform connections ensure mesh strength and durability.
3. Precise Control: A PLC system adjusts welding parameters for high-precision welding and dimensional control.
4. Energy-Saving and Environmentally Friendly: A rational design reduces energy and gas consumption, resulting in more economical operation.
5. Easy Operation: A touchscreen control interface allows for easy setup and monitoring of production status.
6. Wide Range of Applications: Supports a variety of rebar specifications to meet diverse project requirements.
7. Compact Structure: Saves factory space and facilitates installation and maintenance.

Reinforcing Mesh Welding Machine Technical Parameters

Applications of Reinforcing mesh

Reinforcing mesh welding machines are widely used in construction projects such as concrete structure reinforcement, road and bridge construction, tunnel and subway construction, prefabricated component manufacturing, industrial plant and warehouse construction, and water conservancy protection facilities, helping to efficiently produce high-quality steel mesh.

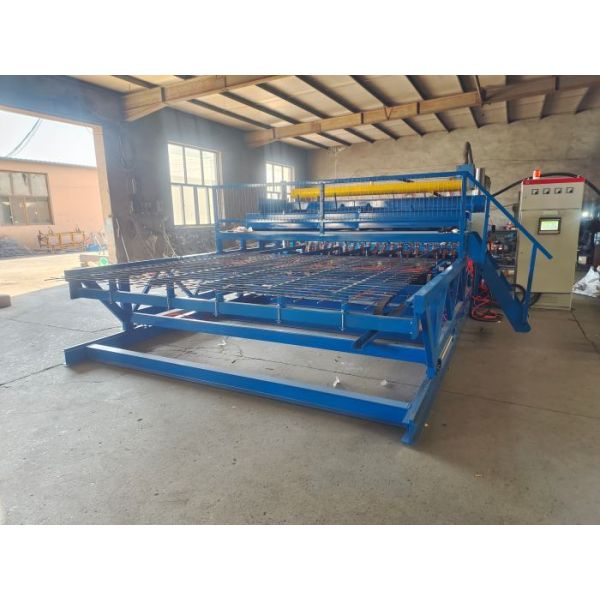

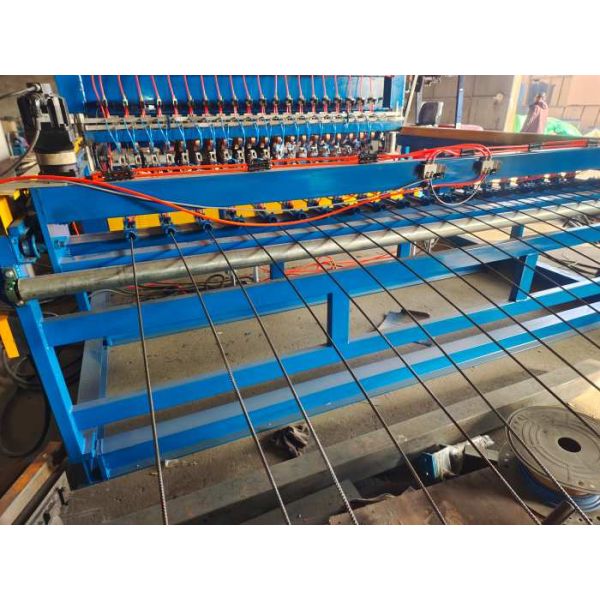

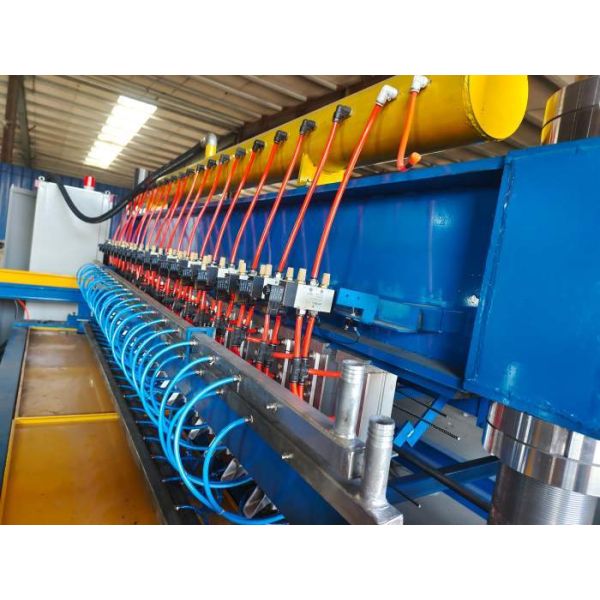

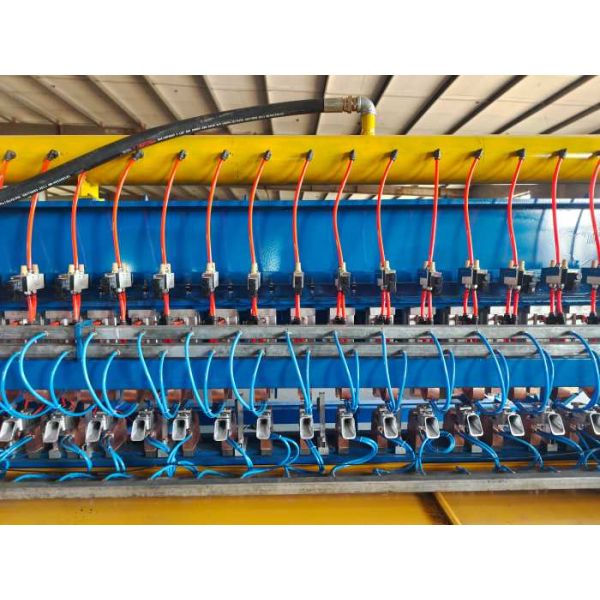

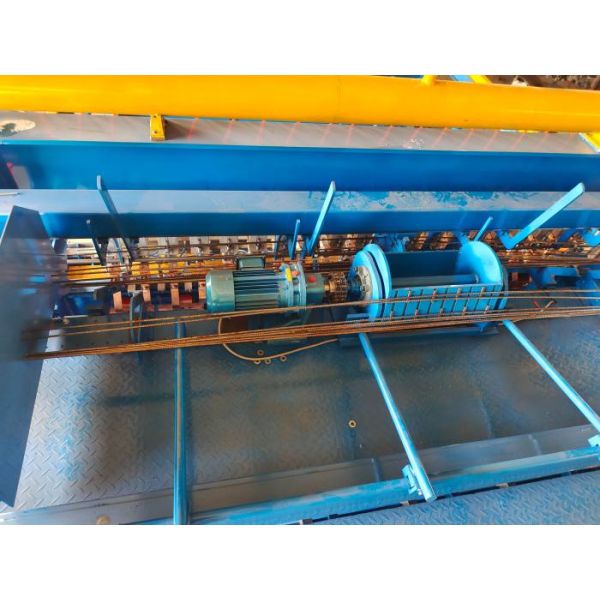

Reinforcing Mesh Welding Machine Photos
