PVC Coated Gabion Basket Reservoir Bank Protection Anti Corrosion CE ISO Certified

Professional Woven Gabion Baskets for Hydraulic Applications

Engineered for demanding water control projects, our heavy-duty woven gabion baskets feature double-twisted hexagonal mesh construction with high-tensile (350-500MPa), corrosion-resistant steel wire (galvanized or PVC-coated). Standard 80×100mm mesh optimally retains 100-250mm stone fill while permitting 95%+ water flow. Ideal for riverbank stabilization, flood walls, coastal defenses, and dam protection. The flexible design withstands 3-5m/s water velocity and accommodates ground movement. Provides superior erosion control with 25+ year lifespan. Custom sizes (1-4m lengths) available for large-scale hydraulic engineering projects.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)

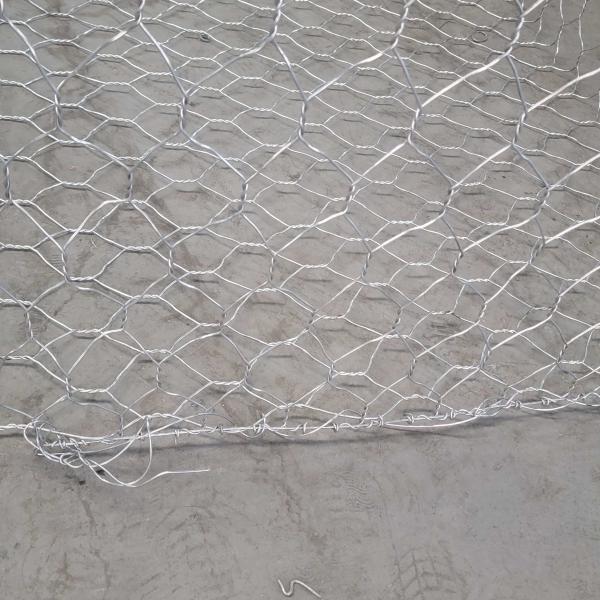

• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

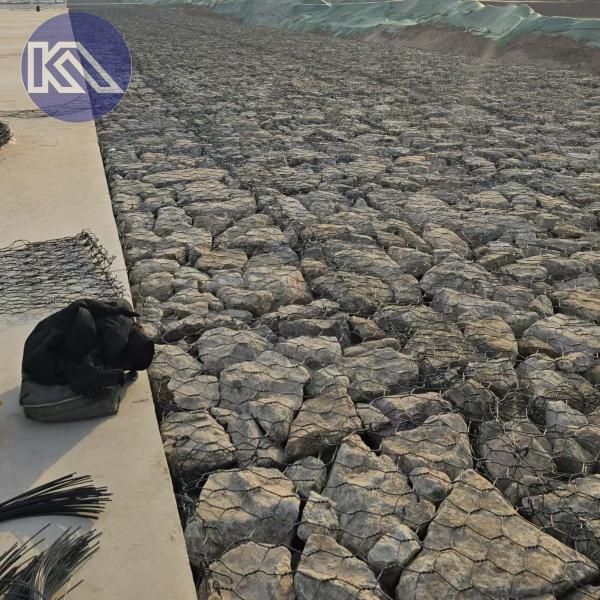

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
