Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Easy Installation Woven 100 Mm X 80 Mm Iron Wire Mesh Gabion Box Construction Metal Cage Retaining Wall
Specifications
Brand Name :
KN
Model Number :
KN-G02
Certification :
ISO CE
Place of Origin :
China
MOQ :
100Pcs
Price :
USD 13-20
Payment Terms :
,T/T,L/C,Western Union
Supply Ability :
300000 sqm/month
Delivery Time :
7 days
Packaging Details :
Wooden pallets
Product name :
Gabion basket
Material :
Q195 steel wire
Wire diameter :
2-2.7mm
Mesh hole :
6*8cm,8*10cm...
Processing Service :
Weaving
Usage :
Protect Sea Wall
MOQ :
100 pcs
Key word :
Stone cage for gabion
Description

Easy Installation Woven 100 mm x 80 mm Iron Wire Mesh Gabion Box for Retaining Wall Construction

Product description

Factory Direct Woven Mesh Double Twisted Hexagonal Galfan Box Gabion

Gabions baskets are rectangular baskets made of heavily galvanized, double twisted, steel woven wire mesh. The single unit constructed baskets are assembled, laced together and then filled with stone to form a monolithic structure. Gabions and Reno mattresses are used for retaining walls, sound barriers, channel linings, slope stabilization, dams and weirs. They are particularly effective in restoring the environment and promoting vegetation growth.
Specifications
Specification of Hexagonal Gabion Mesh
Material
Wire Diameter(mm)
Selvding Wire(mm)
Lacing Wire(mm)
Mesh Hole(mm)
Gabion Size(m)
1. Galvanizing
2. Hot dip galvanizing
3. Galfan (zinc aluminum alloy)
zinc 5% aluminum mixed rare earth alloy steel wire
zinc 10% aluminum mixed rare earth alloy steel wire
4. PVC coated
2.0mm
2.2mm
2.4mm
2.7mm
3.0mm
3.5mm
4.0mm
3-4mm
2.0-2.2mm
60*80mm
80*100mm
100*120mm
120*150mm
customized
2*1*0.5m
2*1*1m
3*1*1m
4*1*2m
4*2*0.3m
6*2*0.3m
customized
Specification of Gabion Mattress
Material
Wire Diameter(mm)
Selvding Wire(mm)
Lacing Wire(mm)
Mesh Hole(mm)
Gabion Size(m)
1. Galvanizing
2. Hot dip galvanizing
3. Galfan (zinc aluminum alloy)
zinc 5% aluminum mixed rare earth alloy steel wire
zinc 10% aluminum mixed rare earth alloy steel wire
4. PVC coated
2.0mm
2.2mm
2.4mm
2.7mm
3.0mm
3.5mm
4.0mm
3-4mm
2.0-2.2mm
60*80mm
80*100mm
100*120mm
120*150mm
customized
3*2*0.3m
4*2*0.3m
5*2*0.3m
6*2*0.3m
customized
Note: All sizes and materials of the hex gabion mesh can be customized according to your request.

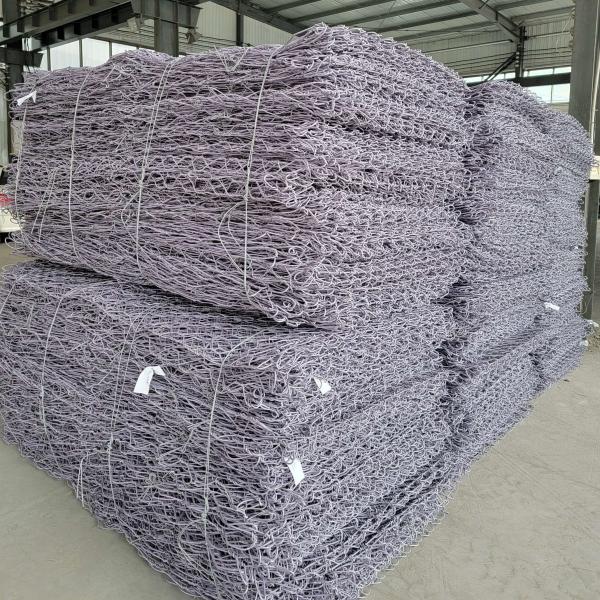

Product Package

Commonly use wooden pallets to pack then. You can require the packages.
