Galvanized Hexagonal Wire Mesh Cage Rock Retaining Wall Pvc Coated Gabion Stone Filled Gabion Basket In Philippines
Galvanized Hexagonal Wire Mesh Cage Rock Retaining Wall Pvc Coated Gabion Stone Filled Gabion Basket In Philippines
Galvanized Hexagonal Wire Mesh Cage Rock Retaining Wall Pvc Coated Gabion Stone Filled Gabion Basket In Philippines
Galvanized Hexagonal Wire Mesh Cage Rock Retaining Wall Pvc Coated Gabion Stone Filled Gabion Basket In Philippines
Specifications
Brand Name :
KN
Model Number :
2X1X1 3X1X1 4X1X1 6X2X0.3
Certification :
CE ISO
Place of Origin :
China
MOQ :
100pc
Price :
USD 13-20
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pc need 7 days
Delivery Time :
7-10 days
Packaging Details :
pallets
Material :
Galvanized Iron Wire, Low-Carbon Iron Wire, Plastic Coated Iron Wire, pvc wire, galvanized wire/low carbon wire
Wire gauge :
2.7mm, 3.4mm,
Application :
Gabions, Cages, slope protection, Fence Mesh, Construction Wire Mesh
Type :
Hexagonal wire mesh
Aperture :
80*100mm, 100*120mm, etc, 60*80mm,
Feature :
Easily Assembled, less transport freight, Strong and Durable, imple installation
Description
Galvanized Hexagonal Wire Mesh Netting Pvc Coated Gabion Stone Filled Gabion Basket In Philippines
Product Description
The gabions are made of high corrosion resistant, high strength, ductile low carbon steel wire or PVC coated steel wire woven together using machinery. The diameter of the low carbon steel wire used varies according to ASTM and EN standards, depending on the design requirements. The tensile strength of the wire is not less than 38kg/m2 and the metal coating weight is generally higher than 245g/m2. The length of the twisted part of the double wire must not be less than 50 mm to ensure that the metal plating and PVC plating of the twisted part of the wire are not damaged.
Gabion basket specification
Material
Galvanized low carbon steel wire

Wire diamater
Mesh wire: 2.0mm-4.0mm
Selvadge wire:3.4mm,3.8mm
Lacing wire:2.2mm,2.5mm
Mesh size
60*80mm, 80*100mm, 100*120mm
Gabion size
1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m
Surface treatment
Hot dipped galvanized, PVC coated
Characteristics
Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
Usage
Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.
Product Information
Application

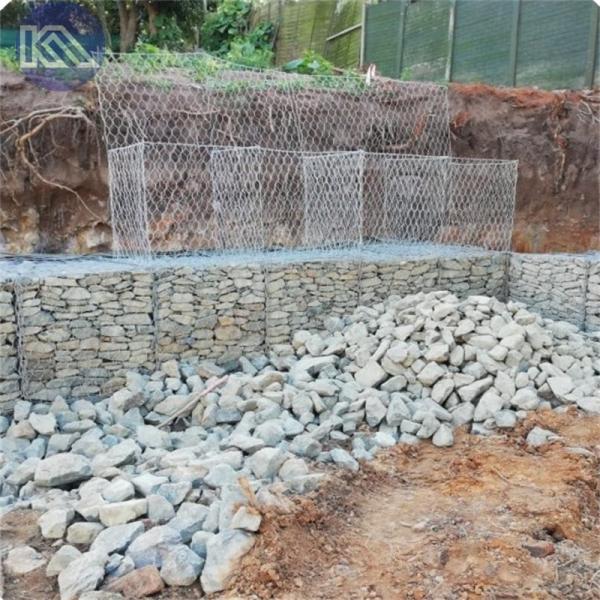

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
Packing & Delivery
one 20 feet container can loading around 1000 pc gabion, 11000 square maters
one 40 feet container can loading full of 1500 pc gabion , 16000 square meters
