80x100mm 3x1x1m Hot Galvanized Gabion Boundary Retaining Wall Cages For Riverbank Protection In Africa
80x100mm 3x1x1m Hot Galvanized Gabion Boundary Retaining Wall Cages For Riverbank Protection In Africa
80x100mm 3x1x1m Hot Galvanized Gabion Boundary Retaining Wall Cages For Riverbank Protection In Africa
80x100mm 3x1x1m Hot Galvanized Gabion Boundary Retaining Wall Cages For Riverbank Protection In Africa
Specifications
Brand Name :
KN
Model Number :
2X1X1 3X1X1 4X1X1 5x1x1 6X2X0.3
Certification :
CE ISO
Place of Origin :
China
MOQ :
100pc
Price :
USD 13-20
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pc need 7 days
Delivery Time :
7-10 days
Packaging Details :
pallets
Material :
Galvanized Iron Wire, Low-Carbon Iron Wire, PVC Coated Iron Wire
Wire gauge :
2.2mm 2.7mm 3.0mm 3.4mm
Application :
Gabions, Cages, slope protection, Fence Mesh, Construction Wire Mesh
Mesh size :
80*100mm, 100*120mm, 60*80mm
Feature :
Easily Assembled, less transport freight, Strong and Durable, imple installation
Sample :
available, retaining wall wire mesh available, Free
Usage :
Flood Control Retaining Wall, Island, Protection, garden and so on
Size :
2m*1m*1m, 1x1x0.5m, Customized, 4*1*1m, 5*1*1
Description
RECOMMENDED APPLICATIONS & USES

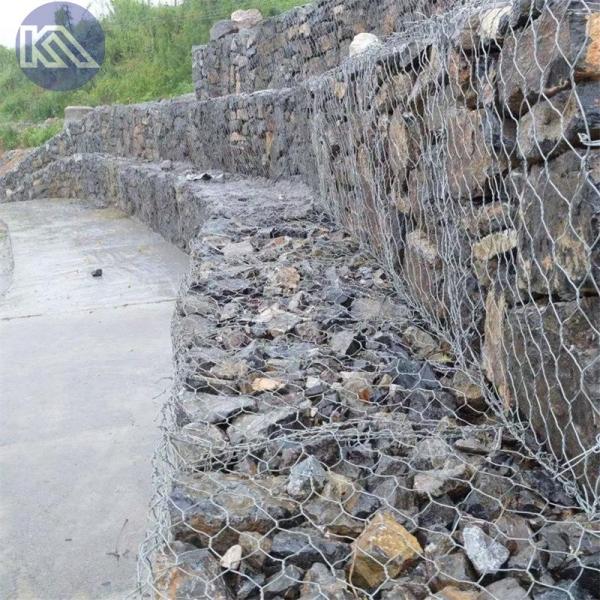

Gabions are wire fabric containers, uniformly partitioned, of variable size, interconnected with other similar containers and filled with stone at the site of use, to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments and weirs for earth retention. Soil erosion is an ever present problem and gabions have proved to be a lasting solution around the world. The earliest known use of gabion-type structures was for bank protection along the Nile River during the era of the Pharaoh. In the subsequent 7,000 years since its initial use by the Egyptians, the gabion system has evolved from baskets of woven reeds to engineered containers manufactured from wire mesh. The lasting appeal of gabions lies in their inherent flexibility.
Product Type
2*1*1m Gabion Boxes
Wire: 3.0mm
Mesh Hole: 80*100mm
USE: Road Protection
3*1*0.5m Gabion Boxes
Wire: 4.5mm
Mesh Hole: 80*100mm
USE: Slope Protection
6*2*0.3m Gabion Boxes
Wire: 4.0mm
Mesh Hole: 100*120mm
USE: River regulation
Mesh Hole
PVC Coated Wire
Hot Dipped Galvanized Wire
Galfan Coated Wire
60*80mm
3.0-3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100mm
3.2-4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120mm
3.4-4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150mm
3.7-4.5mm
3.7mm-4.5mm
3.7mm-4.5mm
Gabion Measurement

Product Advantages

  • Environmentally Friendly: Gabion baskets allow water to pass through, preventing water pressure buildup, and provide space for vegetation growth, aiding in natural water purification.
  • Structurally Stable: Maintains structural integrity and stability even on unstable foundations.
  • Easy Installation: Simple and quick installation process, easily managed even by non-professionals.

Market Advantages

  • Customized for the South American Market: Optimized for the geographical and climatic conditions of South America to ensure long-term performance.
  • Exclusive Agency Opportunities: Providing exclusive agency rights to help agents establish a brand advantage in the South American market and capture a larger market share.
Choose our 80 x 100 mm Gabion Box Stone Galvanized Hexagonal Gabion Netting Basket to meet your engineering needs while adding unique aesthetic value to your projects. We look forward to collaborating with you to explore the gabion market.
