Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control
Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control
Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control
Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control
Specifications
Brand Name :
KN
Model Number :
KN-18177
Certification :
CE, ISO, COC,BESC
Place of Origin :
China
MOQ :
800 set
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1/40HQ per week
Delivery Time :
15 work days
Packaging Details :
pallet
Installation Method :
On-site assembly
Key Words :
Welded Gabion fence
Surface Treatment :
Hot-dip galvanized
Certificated :
CE,ISO
Feature :
corrosion resistance ,etc.
Spiral Pitch :
120mm
Material :
Galvanized steel wire
Usage :
retaining wall
Key Word :
welded gabion mesh
Aperture :
50×50mm, 50×100mm, 100×100mm
Box Size :
2x1x1m, 3x1x1m, 2x0.5x1m, 2x0.3x1m
Features :
Flexible, corrosion resistant, easy to install
Wire Diameter :
from 3.0 - 6.0mm
Zinc Coating :
30g - 240g/m2
Description

Factory Supply Gabion Wire Mesh Retaining Wall Galvanized Welded Gabion for Garden Landscape Retaining

Hebei KN Garden Gabions are a versatile solution for your garden.

Stylish and functional, they can be used for garden borders, benches or garden beds. Simply fill with natural stones or pebbles that are at least 50mm in size.

Made from 3.4mm galvanised wire for long life, they resist weather and corrosion.

Available in Cube, Rectangle and Wall models.

Build in 3 easy steps:

1. Secure the bottom and sides of gabion with clips provided.

2. To assist with filling, use lightweight AAC block, polystyrene, drain pipe or similar material positioned inside the gabion where it cannot be seen once filled. Then fill around with chosen stones or pebbles.

3. Finally, secure gabion top with clips provided once filled.

Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter 3 mm-6 mm
Aperture 50*50 mm, 50*100 mm etc
Gabion Box Size 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
Normal Box Size(cm) Diaphragms Capacity (m3) Mesh Size(mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Other sizes can be customized.

Here are some usage scenarios for welded mesh gabions:

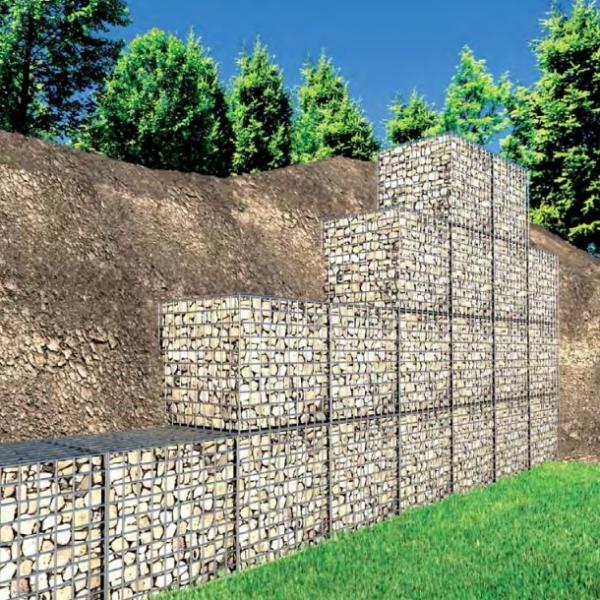

  1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

  2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

  3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

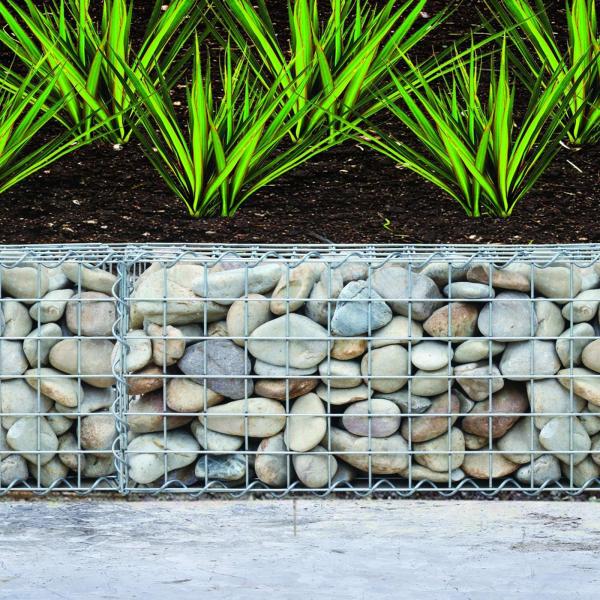

  4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

Technical Specification

  • Fabric Type: Galvanized welded mesh

  • Tensile Strength (wire): Welded: 540 to 770 N/mm²

  • Weld Strength: 75% of the minimum ultimate tensile strength of the wire

  • Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

  • Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

  • Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

  • Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

  • Standard basket heights – 500mm, 1000mm

  • Bespoke Sizes Available

Link Accessorier:

Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

Workshop:

Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control

Package and Loading:

Galvanized Welded Gabion Mesh for Retaining Walls and Erosion ControlGalvanized Welded Gabion Mesh for Retaining Walls and Erosion ControlGalvanized Welded Gabion Mesh for Retaining Walls and Erosion Control
