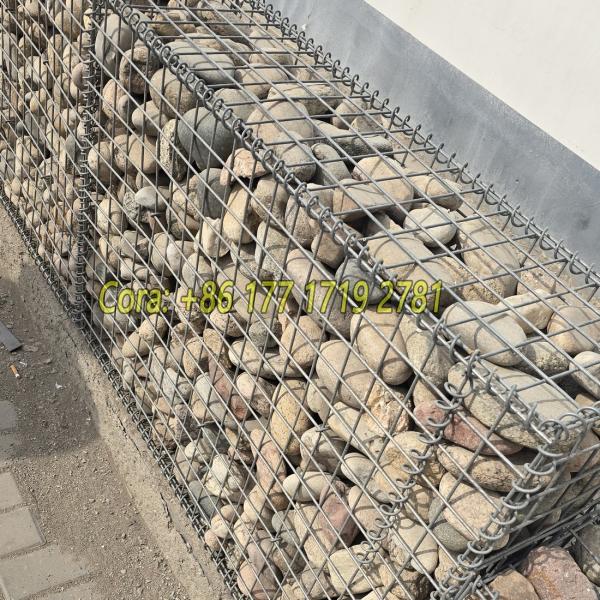

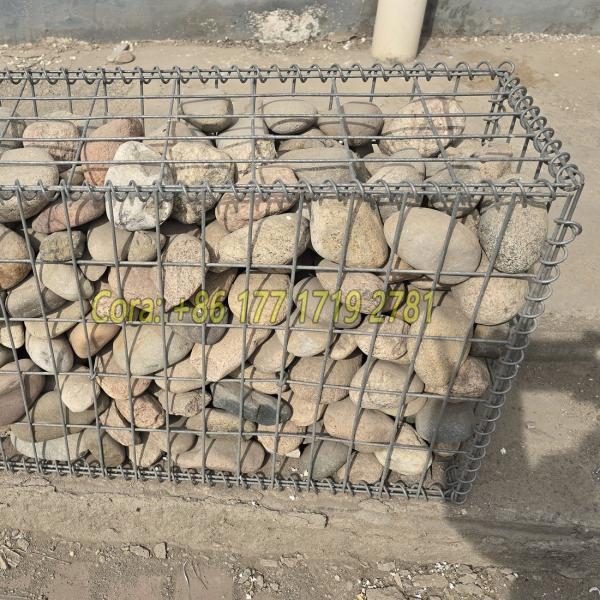

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets
Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets
Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets
Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets
Specifications
Brand Name :
KN
Model Number :
KNGB01
Certification :
ISO, CE, COC
Place of Origin :
Hengshui
MOQ :
1000
Price :
USD 14-20
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000 sets per day
Delivery Time :
7 working days
Packaging Details :
pallet, carton
Material :
Galvanized Wire, Galfan Coated Wire
Wire Thickness :
3mm - 6mm, also can make 8mm
Mesh Hole :
75mm, 3inch, 80mm, 100mm etc
Out size :
based on client's requirements
Connection :
Sprial Wire, or C nails
Pakcage :
Flat, use wooden Pallet
Output :
1000 sets
Sample :
Free
Description

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets


Produced using square mesh hole panel, welded mesh gabions usually have an opening dimension of 75.0mm × 75.0mm; the longitudinal and cross wires are welded together right at their intersection points.

Welded Gabion produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit.

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter 3 mm-6 mm
Aperture 50*50 mm, 50*100 mm etc
Gabion Box Size 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
Normal Box Size(cm) Diaphragms Capacity (m3) Mesh Size(mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Other sizes can be customized.


Gabion Sizes
It should be noted that it is industry standard for gabions to be quoted as overall nominal sizes. The actual gabion sizing is dependant upon the physical mesh configuration.
Clarification should always be sought from the manufacturer in relation to gabion sizing.
Designation of sizes length x width x height
Gabion standard unit lengths: 975mm or 2025mm
Gabion standard unit widths: 450mm, 675mm, 975mm, 1350mm, 1500mm or 1650mm
Gabion standard unit heights: 450mm and 975mm
Non-standard sizes available in multiples of 75mm on request.


Here are some usage scenarios for welded mesh gabions:

  1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

  2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

  3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

  4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Technical Specification

  • Fabric Type: Galvanized welded mesh

  • Tensile Strength (wire): Welded: 540 to 770 N/mm²

  • Weld Strength: 75% of the minimum ultimate tensile strength of the wire

  • Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

  • Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

  • Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

  • Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

  • Standard basket heights – 500mm, 1000mm

  • Bespoke Sizes Available

Link Accessorier:

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Workshop:

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Package and Loading:

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets
