Heavy Duty Galvanized Gabion Wall Planting Rust-Resistant Welded Wire Cages In Garden

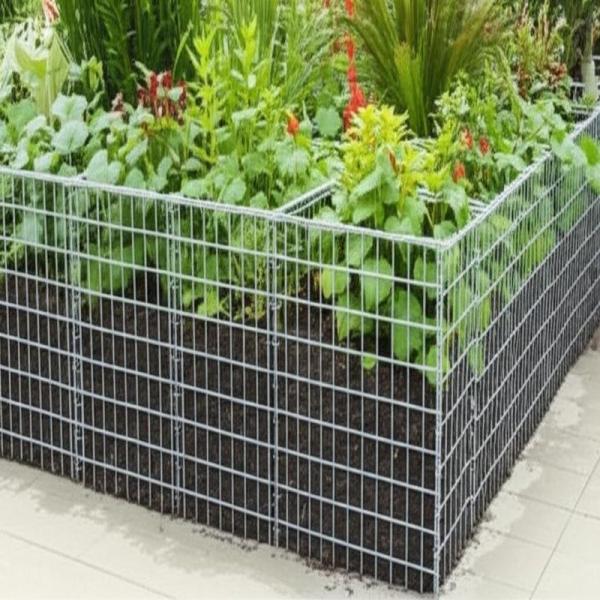

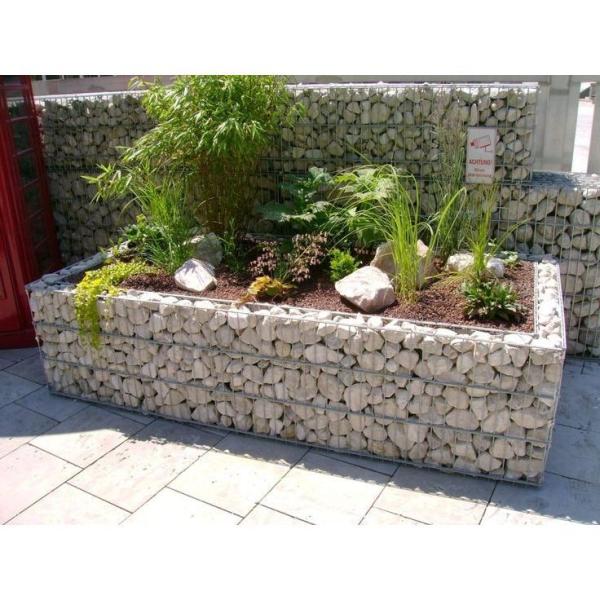

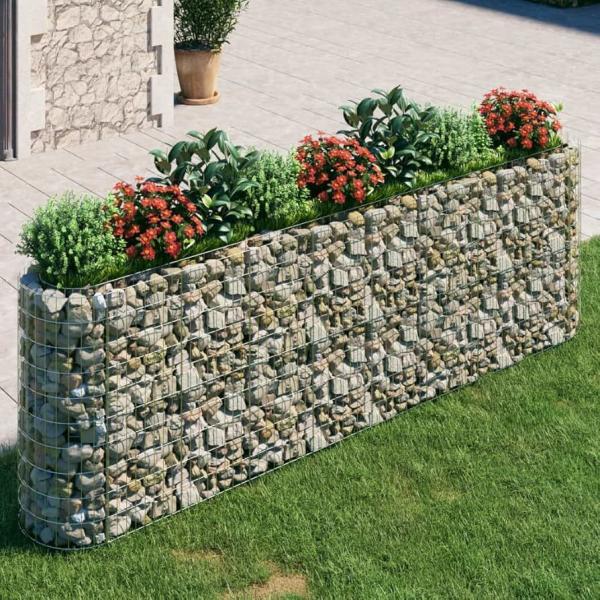

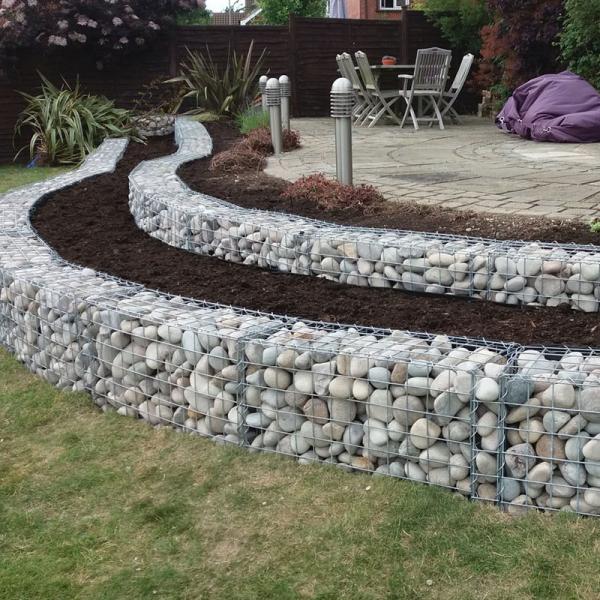

This Heavy-Duty Galvanized Gabion Wall Planting Welded Wire Cage is a practical choice for garden landscape development. Adopting a high-standard galvanization process and a stable welded structure, it not only boasts strong load-bearing capacity but also effectively resists erosion from outdoor rainwater and moisture for an extended period, delivering excellent rust-resistant performance. It can serve as a planting carrier in the garden, easily matching with flowers and plants to create a natural green landscape; meanwhile, it can also function as a courtyard boundary fence and landscape partitioning barrier, providing a green solution that combines practicality and aesthetics for garden spaces.

The basics: Gabions are metal cages or boxes filled with rocks or other usually earthen materials, often used as retaining walls or other outdoor walls. The cages are most commonly made of stainless, galvanized or powder-coated steel mesh panels, wired together using spiral binders or ring fasteners in the shape of a rectangle. Due to a gabion’s weight, frictional strength and ability to conform to the ground’s contours, it doesn’t require a foundation.

Cost: Gabions are considered a cost-effective landscape feature. The steel cages are most commonly made of welded 3-inch mesh and cost about $15 to $20 per cubic meter. The fill is where costs can fluctuate greatly. If recycled concrete from the site is used, the cost can be quite inexpensive. If decorative glass bottles or slate, for example, are used, the price would be much higher.

Pros:

• Ease of installation. Due to its ability to conform to the ground’s contours once filled, a gabion wall can yield to changes in soil conditions or earth movement, making a foundation unnecessary. Site preparation is minimal beyond clearing the ground of plants and debris and making sure the ground is level where the wall is to be placed.
• Longevity. A major contributor to longevity is the gabion’s high permeability. Water can pass through the voids between the rock, eliminating the buildup of hydrostatic pressure and reducing the potential for shifting or warping over time. Also, the inherent strength of materials that won’t corrode over time makes gabion walls built to last.
• Environmental and sustainable qualities. If recycled concrete or rock found onsite during construction is used, the amount of waste hauled to a landfill and the associated fuel costs are greatly reduced.
• Aesthetic appeal. Gabions have the ability to contextually tie structures to their natural surroundings.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

• Bespoke Sizes Available
