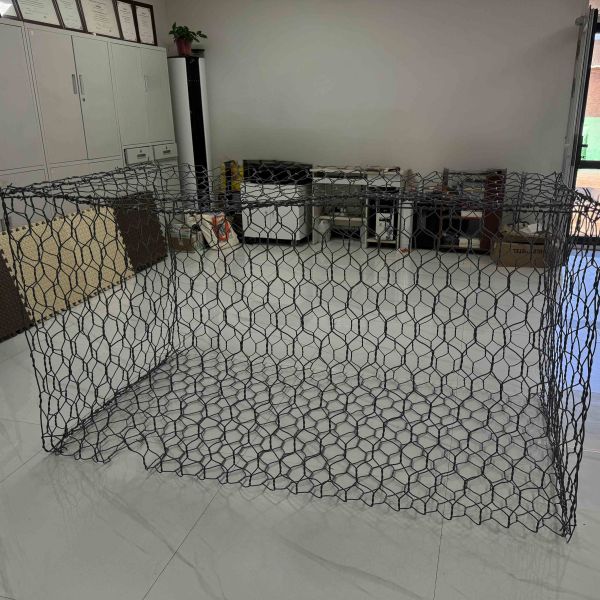

Galvanized Wire Mesh Gabion Baskets Stone Retaining Wall Gabion Basket

Gabion wire mesh refers to a robust structure crafted from interconnected metal wires forming cube-like containers or flexible baskets, which are densely packed with stones or rocks. This innovative material serves as a crucial solution for preventing soil erosion and stabilizing loose earth, particularly in scenarios where traditional measures prove insufficient. The flat variants, commonly termed "River Gabions," are extensively deployed in riverbeds and waterway projects, effectively safeguarding expansive, sloping or flat terrain prone to soil depletion or severe scouring caused by water flow. Traditionally dominant in civil engineering, especially for building resilient drainage systems along roads and highways, gabion wire mesh has witnessed a surge in adoption across diverse sectors in recent years. Leveraging its eco-friendly attributes, such as natural permeability and biodegradability, it now plays a pivotal role in eco-restoration projects, landscaping designs, flood control infrastructures, and even architectural aesthetics, showcasing its versatility beyond conventional applications.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Gabion wire mesh is mainly used in landscape greening, river slope protection, abutment construction, soil erosion, ecological construction, water conservancy projects and other aspects. The stone cage net is a flexible structure, which can be bent or deformed when it is subjected to a certain tension or deformation force, and has good stability and long service life.
