Corrosion Resistant Hexagonal Stone Gabion Cages for 100% Free-Draining River Bank Protection
Corrosion Resistant Hexagonal Stone Gabion Cages for 100% Free-Draining River Bank Protection
Specifications
Brand Name :
KN
Model Number :
KN-Metal Gabions
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
100 pc
Price :
USD 13-20
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 pc per day Metal Gabions
Delivery Time :
15 work days
Packaging Details :
pallet
Feature :
Corrosion Resistance
Hole Shape :
Hexagonal
Zinc Coating :
240-290g/m2
Cage Size :
1*1*1M, 1*1*2M,1*1*3M
Permeability. :
100% free-draining
Structural Flexibility :
Can withstand total differential settlement up to 0.2H (H=structure height) without structural failure.
Wire Diameter :
2.7mm
Aperture :
1mm-100mm
Gabion Box Size :
2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x0.2
Wire Diamater :
3mm~6mm or custom
C of C :
Each shipment includes a Certificate of Conformity stating compliance with EN 10223-8
Key Words :
Gabion Cages
Description

River Bank Protection Twisted Wire Metal Gabions 1m X 1m X 1m Galvanized




Versatile, permeable, and eco-friendly. Our gabion baskets are the ideal choice for creating stunning retaining walls, riverbank protection, and modern landscape features.

Corrosion Resistant Hexagonal Stone Gabion Cages for 100% Free-Draining River Bank Protection

Application

  • Erosion Control: Riverbank & coastal protection, shoreline armoring, lake shores, ditch linings.

  • Retaining Structures: Gravity retaining walls, bridge abutments, wing walls, terrace walls.

  • Hydraulic Works: Dam facings, spillways, weirs, culvert outlets, flood walls.

  • Infrastructure Protection: Road & railway embankments, slope stabilization, avalanche barriers.

  • Architectural & Landscaping: Decorative walls, noise barriers, garden features, façade cladding.

Corrosion Resistant Hexagonal Stone Gabion Cages for 100% Free-Draining River Bank Protection

River Bank Protection Galvanized Metal Gabions

Material Specifications



Component Standard Detail
Base Wire EN 10223-3 Low carbon steel wire, tensile strength: 350-550 N/mm².
Coating (Standard) EN 10244-2 Heavy Galvanized (Class A). Minimum zinc coating mass: 250 g/m².
Coating (Premium) EN 10244-2 & EN 16120 Galfan (Zn-5%Al-RE). Minimum alloy coating mass: 255 g/m². Recommended for severe environments (pH 4-11).
Coating (Optional) - PVC Sheathed. Minimum thickness 0.5mm, over galvanized core. Standard colors: Green, Grey, Black.

Corrosion Resistant Hexagonal Stone Gabion Cages for 100% Free-Draining River Bank Protection

Mesh & Manufacturing Specifications



Parameter Requirement
Mesh Type Hexagonal, Double-Twist. Mesh shall not unravel if a wire is cut.
Mesh Opening (D) Tolerance: ±4% on nominal尺寸. Common sizes: 60x80mm, 80x100mm, 100x120mm.
Wire Diameter Mesh Wire (d1): As per design, typically 2.2mm, 2.5mm, 2.7mm, 3.0mm.
Selvedge/Border Wire (d2): Minimum d2 = d1 + 0.5mm.
Mesh Tolerance The number of meshes per unit length shall not deviate by more than ±3%.

Corrosion Resistant Hexagonal Stone Gabion Cages for 100% Free-Draining River Bank Protection

4. Gabion Unit Dimensions & Tolerances



Type Common Internal Dimensions (L x W x H) in meters Height Tolerance Length/Width Tolerance
Gabion Box 2.0 x 1.0 x 1.0
3.0 x 1.0 x 1.0
4.0 x 1.0 x 0.5
(Custom available)		 H ≤ 1.0m: ±5%
H > 1.0m: ±3%		 ±3%
Gabion Mattress 3.0 x 2.0 x 0.3
6.0 x 2.0 x 0.3
(Custom available)		 ±5% ±3%


Outer Size
2x1x1 M
Usage
Flood Control Retaining Wall
Feature
Corrosion Resistance
Advantage
Easy-to-install
Characteristics
High Tensile Strength

5. Assembly & Components

  • Panels: All units are supplied as folded, bundled panels, pre-cut and ready for assembly.

  • Lacing Wire: Provided separately for field assembly. Diameter equal to or greater than mesh wire.

  • Stiffeners/Braces: Provided for large face panels to resist bulging during stone filling.

6. Performance & Design Parameters

  • Permeability: 100% free-draining.

  • Durability (Design Life):

    • Standard Galvanized: 25-50 years (depending on environment).

    • Galfan Coated: 60-100+ years.

  • Structural Flexibility: Can withstand total differential settlement up to 0.2H (H=structure height) without structural failure.

7. Quality Assurance & Documentation

  • C of C: Each shipment includes a Certificate of Conformity stating compliance with EN 10223-8.

  • Test Reports: Mill certificates for wire and coating can be provided upon request.

  • Third-Party Inspection: Available and welcome.

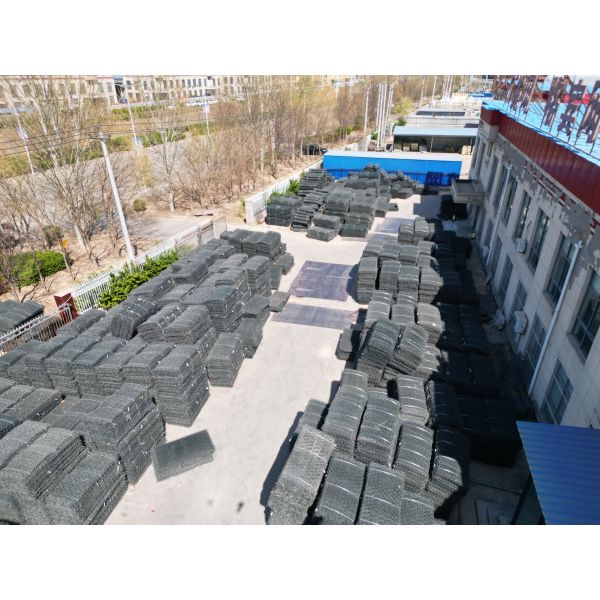

8. Packing

Units are compactly bundled, palletized, and shrink-wrapped for ocean freight. Each pallet is clearly marked with product code and dimensions.
