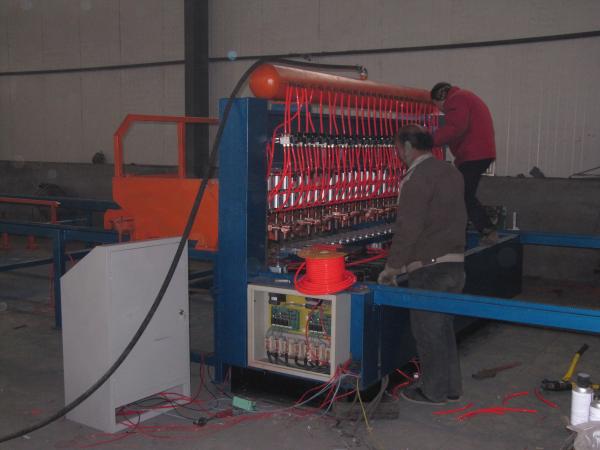

Pneumatic Construction Reinforced Mesh Welding Machine For Civil Building Beam Floor
Pneumatic Construction Reinforced Mesh Welding Machine For Civil Building Beam Floor
Pneumatic Construction Reinforced Mesh Welding Machine For Civil Building Beam Floor
Pneumatic Construction Reinforced Mesh Welding Machine For Civil Building Beam Floor
Specifications
Brand Name :
MLG
Model Number :
Parameters MLG-12AM100-2500
Certification :
CE
Place of Origin :
Hebei China
name :
reinforcing mesh welding machine
Description

Pneumatic Construction Reinforcing Mesh Plant For 5--12mm Rebar

Features

5-12mm building welded reinforcing mesh production line are used for welding reinforce wire mesh panel. Both the line wire and cross wire are feed from pre-cut wire , the controlling system adopts PLC control, the machine aopts servo motor to pull the mesh panel repeatly.

1. Pneumatic pressure system making the welding pressure more steady, than usual mechanical provide welding pressure.

2. Water-cooling transformer and water-cooling welding electrodes to make sure the welding firm during a long working time, and prolong the life .

3. Control cabinet adopt touch screen operate system, you can change welding time, or electricity , mesh opening size by print numbers through touch screen.

Control cabinet adopt Panasonic (Japan ) PLC program, and Schneider ( France ) low-voltage apparatus

4. Panasonic (Japan ) servo motor for pulling mesh, to make sure mesh openging size accurate.

Specifications

Technical items Parameters MLG-12AM100-2500
Wire diameter 6-12mm
Cross wire space 100-300mm
Line wire space 50-200mm
Number of electrodes 26
Max. mesh width 2600mm
Mesh length 3-12m
Electricity capacity 150kva*13
Welding speed 30-50 times/min
Weight 7 ton
Overall dimension 24*6.0*2.65m
Cross wire form Pre-cut wire
Line wire form Pre-cut wire
Welding transformer With water cooling system
Welding pressure power pneumatic pressure

We can design the machine as customers demand.

Applications;

Steel fabric used in industrial and civil building beam floor, roof, wall, concrete road and bridge deck pavement, airport runway, tunnel lining, box culvert, dock floor, prefabricated components, and other fields.

Pneumatic Construction Reinforced Mesh Welding Machine For Civil Building Beam Floor

Pneumatic Construction Reinforced Mesh Welding Machine For Civil Building Beam Floor
