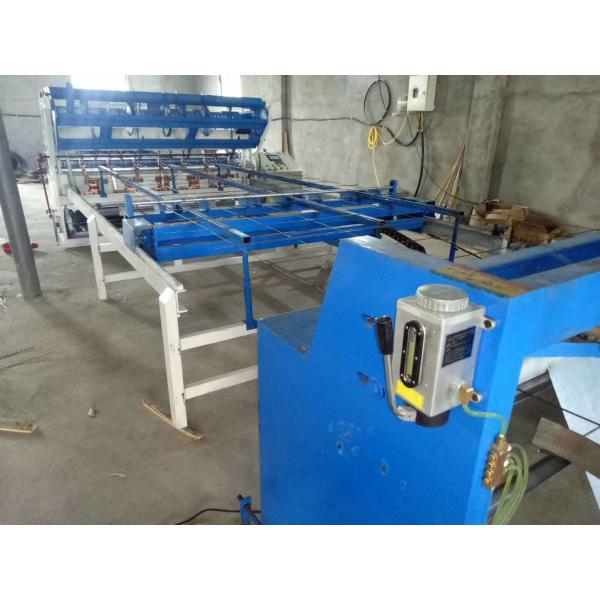

Fully Automatic Welded Mesh Panel Production Line Wire From Coil

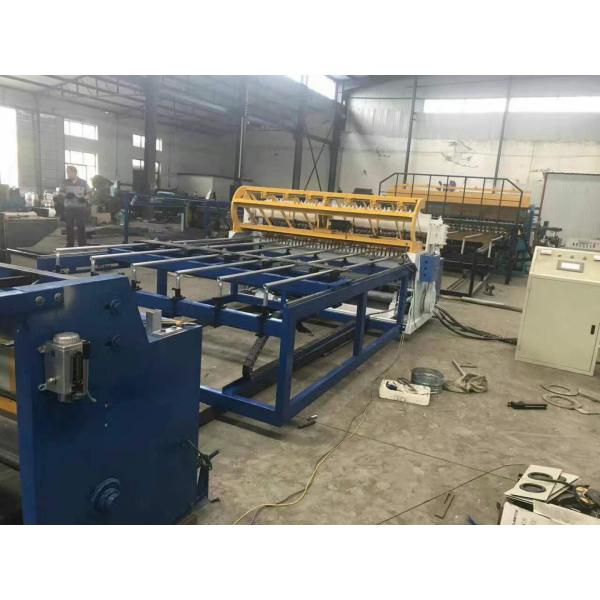

Fully Automatic Welded Mesh Panel Production Line Wire From Coil

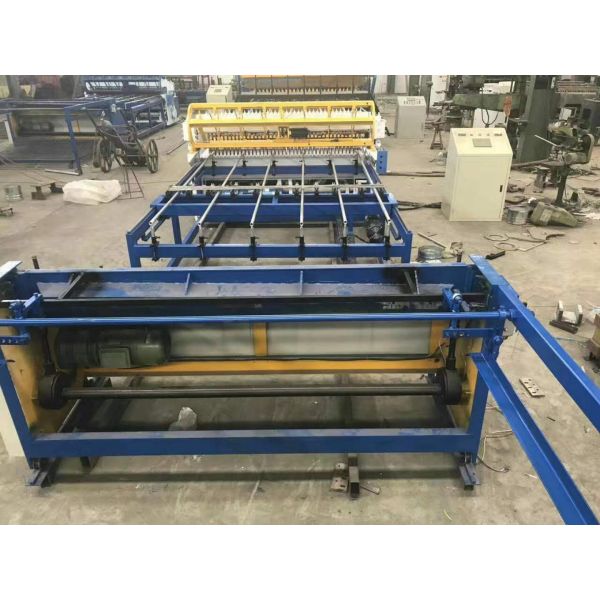

Fully Automatic Welded Mesh Panel Production Line Wire From Coil
Fully Automatic Welded Mesh Panel Production Line Wire From Coil
Specifications
Brand Name :
MLG
Model Number :
MLG-HLG-2500
Certification :
CE ISO 9001
Place of Origin :
Hebei China
MOQ :
1 set
Supply Ability :
3--5 sets per month
Delivery Time :
30 days
Packaging Details :
The Fully Automatic Welded Mesh Panel Production Line is covered by plastic film. the control cabinet put into wooden box. need one 40 feet container
Line wire type :
Coil wire
Cross wire type :
Pre-cut
Wire diameter :
2.5--5.0mm
Mesh opening :
50*50mm--300*300mm
length of mesh :
As per required
Welding transformer :
125KVA*6PCS
Description

Fully Automatic Welded Mesh Panel Production Line Wire From Coil

Product description

1.The full automatic welded mesh panel production line control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.


2. The fallen wire system controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.


3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any character can be reach. Welding aperture can adjust randomly within range.


4. The Mesh pulling system is controlled by servo motor(Panasonic brand).

5. For example.you want to produce length of mesh 3m. mesh opening 100x100mm. firstly,input the quantity of mesh opening. Then input the length of mesh by touch screen. The mesh cutting machine will cut the mesh as per your required length of mesh


5, Transformer:125KVA*6(48welding heads) ——every 8 welding heads need a water cooling transformer.


6, Wire feeding way:The line wires from coil wire. and cross wires should be pre-straightened and pre-cut, then be put by manual work.

7, Material:Suitable for low carbon iron wire, black annealed wire GI wire.

Technical details:

Wire diameter 2.5--5.0mm Line wire form From coil
Line wire distance 50--300mm Weft wire form Pre-cut wire
Cross wire distance 50--300mm Rated voltage 380V 50HZ
Welding mesh width Max 2500mm Transformer power 6PCSX125KVA
Welding speed 45--60 times/min Length of mesh as per required
Welding spots 48 Dimension 6m*3.2m*1.7m
Machine weight 4.6T Motor power 4.0KW
Capacity 270m per hour Dimension of workshop 20m*5*4m

Fully Automatic Welded Mesh Panel Production Line Wire From Coil

Fully Automatic Welded Mesh Panel Production Line Wire From Coil

Fully Automatic Welded Mesh Panel Production Line Wire From Coil
